Description:
View5 is one of the most reliable fusion splicers on the market, featuring precise core alignment technology and the world's highest magnification performance. View5 uses an industrial-grade quad-core CPU, which is 8 times faster than that of the previous generation IFS series. Its GPU has a built-in WcatPro graphics accelerator for faster response. Simple and intuitive graphics operating system and its 5-inch 800x480 high-resolution LCD capacitive touch screen bring in greater convenience. It features up to 520X magnification for easy viewing of the fiber with the naked eye. View5's outstanding performance make it the most reliable and cost-effective fiber fusion splicer in the communications market.

Features:
- Without reflector glass, it cuts down core alignment time, improving working efficiency
- Maximum magnification up to 520X
- 3 LEDs with white light for easy operation at night
- 5 Inch high resolution capacitive colorful touch screen
- Precise core alignment splicing method with V-type groove
- Ceramic hammer enhances its durability
- Removable SOC heating fixture
- Waterproof, dust-proof, windproof performance enable uses in severe environment
- Shorten heating time

Parameters:
- Model: View5
- Dimensions: 141 x 164 x 138mm
- Weight of Main Unit: 1.80kg
- Applicable Core Number: Single core
- Applicable Fiber Type: SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
- Applicable Fiber Diameter: 0.25 ~ 3.0 mm / home optical fiber cables
- Fiber Placement & Cutting Length: Coating 0.125 ~ 1mm; Cutting length 8 ~ 16mm
- Welding Mode: Preset 35 welding modes / up to 128 welding modes
- Typical Welding Loss: SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB (measured by the cut-off method of ITU-IT standard)
- Return Loss: > 60dB
- Lighting: 3 White LEDs, Backlight Button
- Splicing Time: Quick Mode: 7S; Standard Mode: 9S
- Estimated Splice Loss: Available
- Welding Length: 20 to 26mm
- Heating Time: Preset 5 Heating Modes/Typical Heating Time: 30s
- Results Storage: The latest 2000 records
- Tension Test: 1.96 to 2.25N
- Operating Conditions:
  Operating Altitude: 0 to 5000m above sea level;
  Relative Humidity: 0 to 95%;
  Temperature: -10 to 50℃
  Max. Wind Speed: 15m/s.
- Storage Environment: Relative humidity 0 to 95%, -40 to 80℃
- Display: 90°Dual-camera, 5.0'' 800x480 high resolution capacitive touch screen
- Magnification & Display of Optical Fiber: X, Y, XY, X/Y; Double tapping to reach 520X
- Power Supply: Input AC 100 ~ 240V, DC 9 ~ 14V
- Operating Way: Via buttons & touch screen
- Self-adapted Discharge: Automatically adjust in accordance with the air pressure and environment temperatures
- Electrode Lifespan: Discharge up to 3500times
- Interface: USB2.0/MINI USB

Package Included:

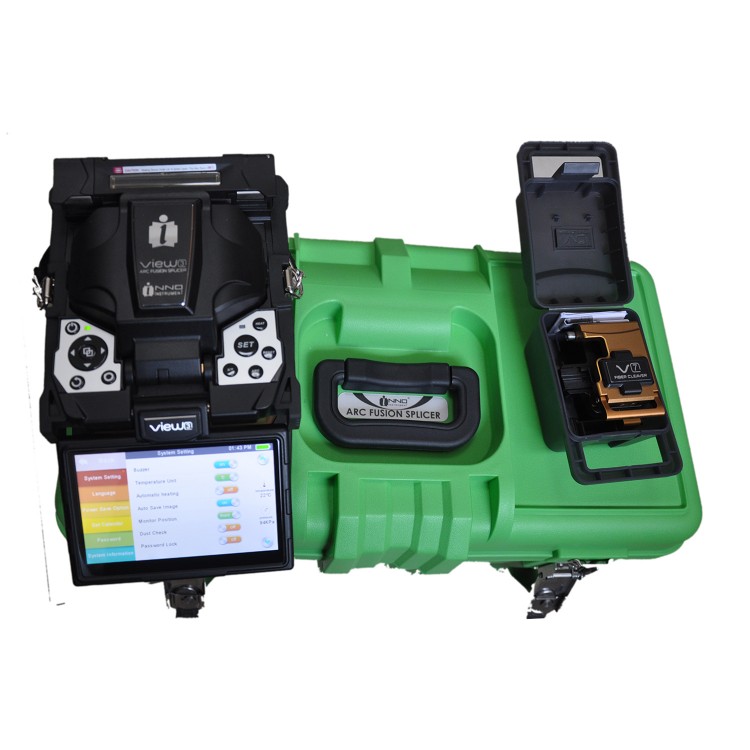

- 1 x Fusion Splicer View5
- 1 x V-7 Fiber Cutter
- 1 x FH-SOC Fixture
- 1 x JS-180300 Charger Adapter
- 1 x CG-22 Cooling Rack
- 1 x E-27 Electrode Rod
- 1 x CD
- 1 x ACC-25 Power Cord for Charger Adapter
- 1 x NBX-45 Carry Case
- 1 x CFS-2 Pliers
- 1 x EG-18 Grinding Machine for Electrode
- 1 x HT-SP Split Heating Groove
