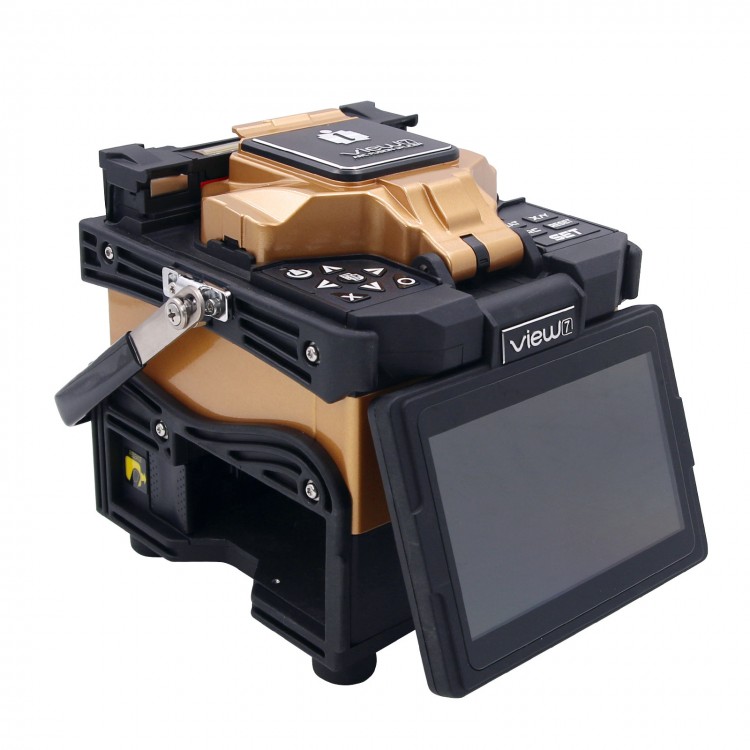

520X Fiber Fusion Splicer Machine w/5" LCD Touch Screen Backlight 800x480 Innno View7

520X Fiber Fusion Splicer Machine w/5" LCD Touch Screen Backlight 800x480 Innno View7

Description:
View7 is one of the most reliable fusion splicers on the market, featuring precise core alignment technology and the world's highest magnification performance. With rubber coating on its surface, it can be applied to severe environment. View7 uses an industrial-grade quad-core CPU, which is 8 times faster than that of the previous generation IFS series. Its GPU has a built-in WcatPro graphics accelerator for faster response. Simple and intuitive graphics operating system, and its 5-inch 800x480 high-resolution LCD capacitive touch screen bring in greater convenience. It features up to 520X magnification for easy viewing of the fiber with the naked eye. With higher electric capacity, it enables operations up to 355 times. Furthermore, its advanced heating groove makes its heating speed as fast as 13s, shortening its working hours by 53% and improving its working efficiency by 67%. We speed up efforts to offer premium operation experience to users by improving our technology and advancing its performance.

Features:
- Precise core alignment splicing method with V-type groove
- Maximum magnification up to 520X
- 5 Inch high resolution capacitive colorful touch screen
- 3 LEDs with white light and backlight button for easy operation at night
- Without reflector glass, it cuts down core alignment time, improving working efficiency
- Higher electricity enables splicing up to 355times and heating operations
- Waterproof, dust-proof, windproof performance enable uses in severe environment
- Its heating speed as fast as 13s
- Removable SOC heating fixture

Parameters:
- Model: View7
- Dimensions: 162 x 159 x 163 mm
- Weight of Main Unit: 2.15kg
- Applicable Core Number: Single core
- Applicable Fiber Type: SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
- Applicable Fiber Diameter: 0.25 ~ 3.0 mm / home optical fiber cables (with VFH-40 Fixture)
- Fiber Placement & Cutting Length: Coating 0.125 ~ 1mm; Cutting length 8 ~ 16mm
- Welding Mode: Preset 45 welding modes / up to 128 welding modes
- Typical Welding Loss: SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB (measured by the cut-off method of ITU-IT standard)
- Return Loss: > 60dB
- Lighting: 3 White LEDs, Backlight Button
- Splicing Time: Quick Mode: 7S; Standard Mode: 8S
- Estimated Splice Loss: Available
- Welding Length: 20 to 26mm
- Heating Time: Preset 5 Heating Modes/Typical Heating Time: 13s
- Results Storage: The latest 2000 records
- Tension Test: 1.96 to 2.25N
- Operating Conditions:
  Operating Altitude: 0 to 5000m above sea level;
  Relative Humidity: 0 to 95%;
  Temperature: -10 to 50℃
  Max. Wind Speed: 15m/s.
- Storage Environment: Relative humidity 0 to 95%, -40 to 80℃
- Display: 90°Dual-camera, 5.0'' 800x480 high resolution capacitive touch screen
- Magnification & Display of Optical Fiber: X, Y, XY, X/Y; Double tapping to reach 520X
- Power Supply: Input AC 100 ~ 240V, DC 9 ~ 14V
- Operating Way: Via buttons & touch screen
- Self-adapted Discharge: Automatically adjust in accordance with the air pressure and environment temperatures
- Electrode Lifespan: Discharge up to 3500times
- Interface: USB2.0/MINI USB

Package Included:
- 1 x Fusion Splicer View7
- 1 x V-7 Fiber Cutter
- 1 x VFH-10 Fixture
- 1 x JS-180300 Charger Adapter
- 1 x CG-22 Cooling Rack
- 1 x E-27 Electrode Rod
- 1 x CD
- 1 x ACC-25 Power Cord for Charger Adapter
- 1 x NBX-45 Carry Case
- 1 x CFS-2 Pliers
