558+G45 High-Quality Holographic Sight with Magnifier 5X Enables Vertical and Horizontal Adjustments

558+G45 High-Quality Holographic Sight with Magnifier 5X Enables Vertical and Horizontal Adjustments

558 Holographic Sight:
Overview:
The HWS 558™ is perfect for anyone that doesn't like to sacrifice. The 558 is compatible with all Gen I-III night vision devices and features an adjustable, locking, quick-detach mount that offers instant removal.

Specifications:
L X W X H:
5.6" x 2.2" x 2.9" (142.2 x 55.9 x 73.7 mm)

Weight:
13.8 oz (391.2 g)

Water Resistant:
33ft. (10 m) depth

Mount:
1" Weaver or MIL-STD-1913 rail

Windage & Elevation Adjustment:
0.5 MOA per click

Brightness:
20 daylight settings
10 additional settings for Gen I through III+ night vision devices

Operating Temperature:
-40°F to 140°F (-40°C to 60°C)

Reticle Options:
Unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. The reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the user to quickly pick up and lock on a target.

One Dot Reticle:
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points.

Range Estimation with Unmagnified HWS:
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.

Brightness Options:
The 558™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.

G45 Magnifier:
Overview:
The G45.STS mini 5X Magnifier has the similar weight and dimensional properties as the existing G33 Magnifier, but with an additional 2X magnification for precision aiming at greater distances. The mount provides fast transitioning from 5X to 1X and the optic offers tool free vertical and horizontal adjustments with a large field-of-view. The G45 is compatible with all HWS models for EOTECH.

Specifications:
L X W X H:
3.9" x 2.3" x 3.3" (99 x 58.4 x 83.8 mm)

Weight:
12.8 oz (362.9 g)

Water Resistant:
33ft. (10 m) depth

Mount:
1" Weaver or MIL-STD-1913 rail

Operating Temperature:
-40°F to 140°F (-40°C to 60°C)

Fixed Magnification:
5X

Eye Relief:
2.6" (66mm)

Field-Of-View:
4.4°

Sealing:
Fog Resistant Internal Optics

Package Included:

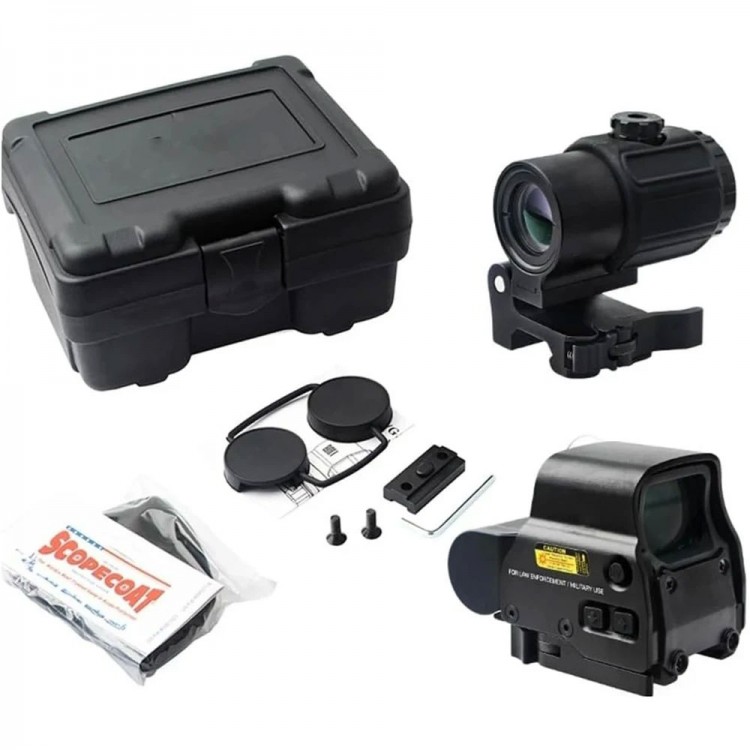

* 1 x Set of 558+G45

Packaging Details:
* Weight: 0.9kg

Note:
* 2 AA alkaline batteries for 558 are not included.
