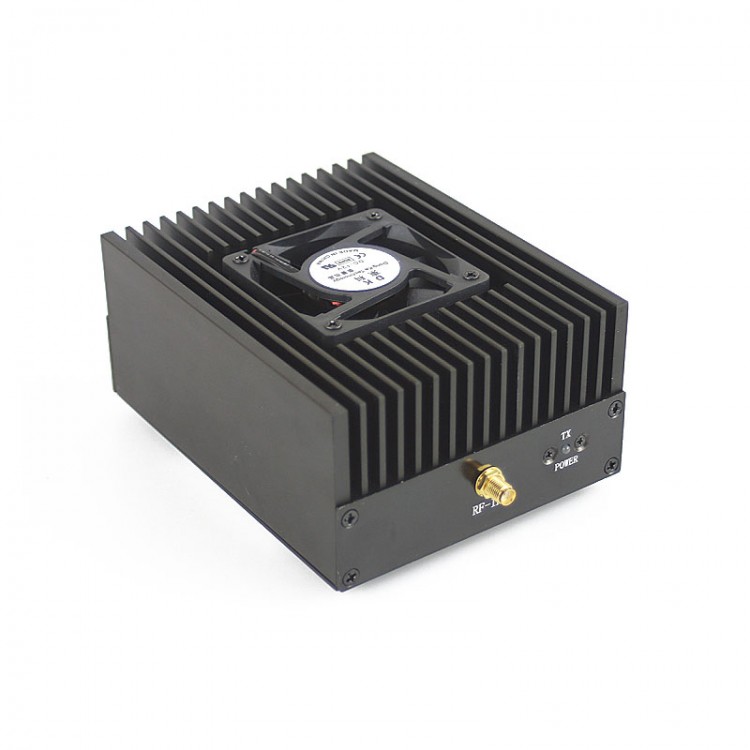

55W UHF High-Power RF Amplifier Digital RF Power Amplifier for Walkie Talkie and FPV Drone Telemetry
Features:
- Beautiful shell: black oxidized aluminum shell
- Its RF input end uses an SMA female interface
- RF OUT, the power output port, can be connected to an antenna through the M male connector
- TX and POWER LED indicator: it is a two-color LED. It is green when it is standby. It is red when it is transmitting
- 40°C temperature control fan. When the temperature is below 40°C, the fan does not work
Product Parameters:
- Product name: RF Power Amplifier
- Input power: 1-5W
- Modulation modes: DMR, C4FM, DP MR, CW, FSK, P2S, and FM
- Transmitting frequency: 400-470MHZ (UHF)
- Receiving frequency: 50-1000MHZ
- Operating mode: half-duplex (in the transmit state, it cannot receive)
- Receiving loss: -1DB ±0.4
- Output power: 55W
- Power supply voltage: DC 10-14V
- Standby current: 10-30MA
- Heat dissipation mode: 40°C temperature control air cooling
- Product size: 130 x 104 x 60mm/5.1 x 4.1 x 2.4" (LxWxH)
- Product weight: 880g/1.9lb
Package Included:
- 1 x RF Amplifier
