57-112 Integrated Nema 23 Closed Loop Stepper Motor Stepping Motor and Driver in One for CNC Machine

57-112 Integrated Nema 23 Closed Loop Stepper Motor Stepping Motor and Driver in One for CNC Machine

Description:
This is a high-performance two-phase hybrid closed-loop motor with integrated digital integrated driver. Its system structure is simple and the integration is high. The integrated closed-loop stepper motor adopts the latest 32-bit DSP chip for motor control. Advanced digital filter control technology, resonant vibration suppression technology and precision current control technology are used to achieve precise and smooth operation of the two-phase hybrid stepper motor. The stepping motor boasts high torque output, low noise, low vibration and low heat generation. Thus, it is especially suitable for electronic processing equipment, laser processing, medical and small CNC equipment.

Features:
- Full closed-loop control and refuse to lose steps
- Ultra-low vibration and low noise

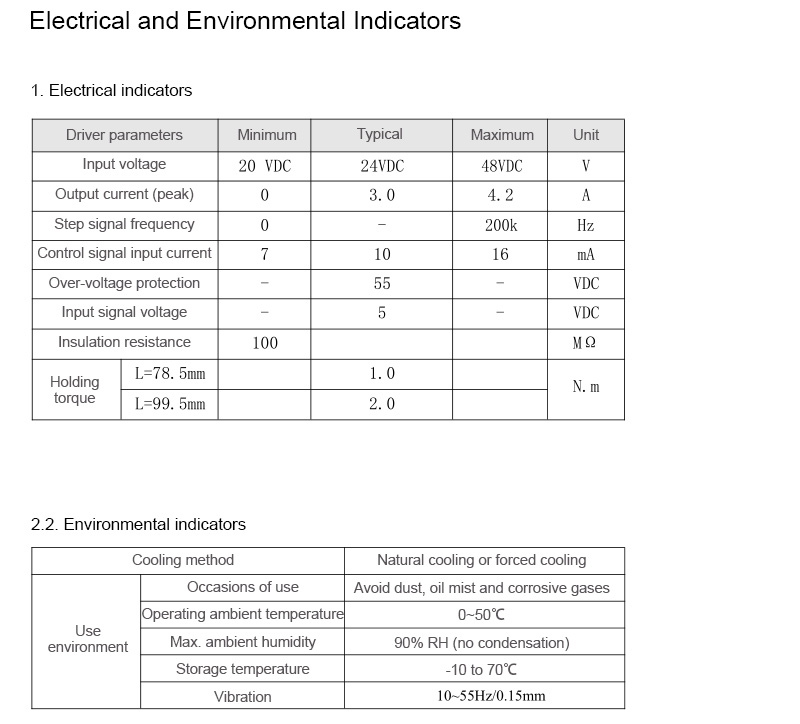

- Input voltage: 20~48VDC

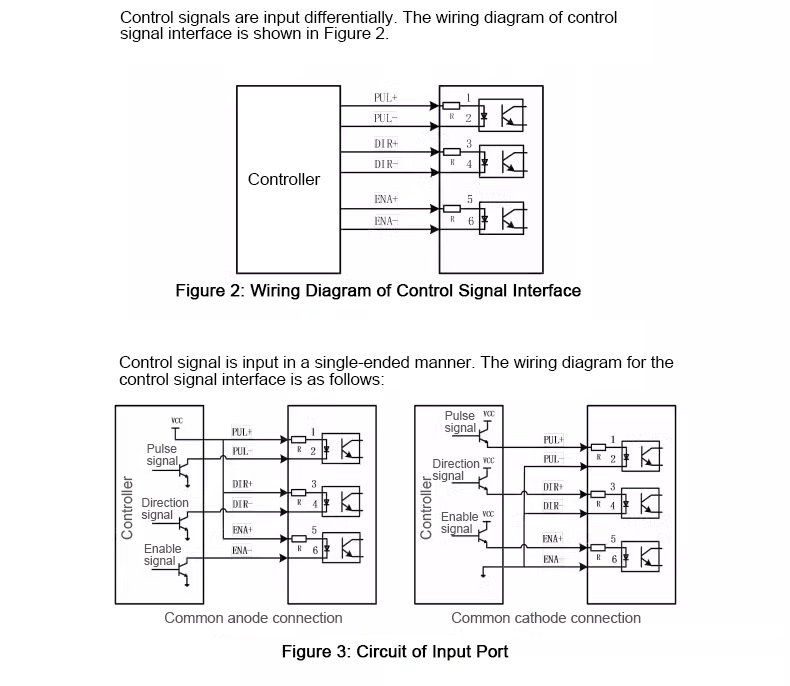

- 3 isolated differential signal input ports: 5VDC
- 1 isolated output port: alarm output (OC output)
- Current control is smooth and accurate, and the motor generates less heat

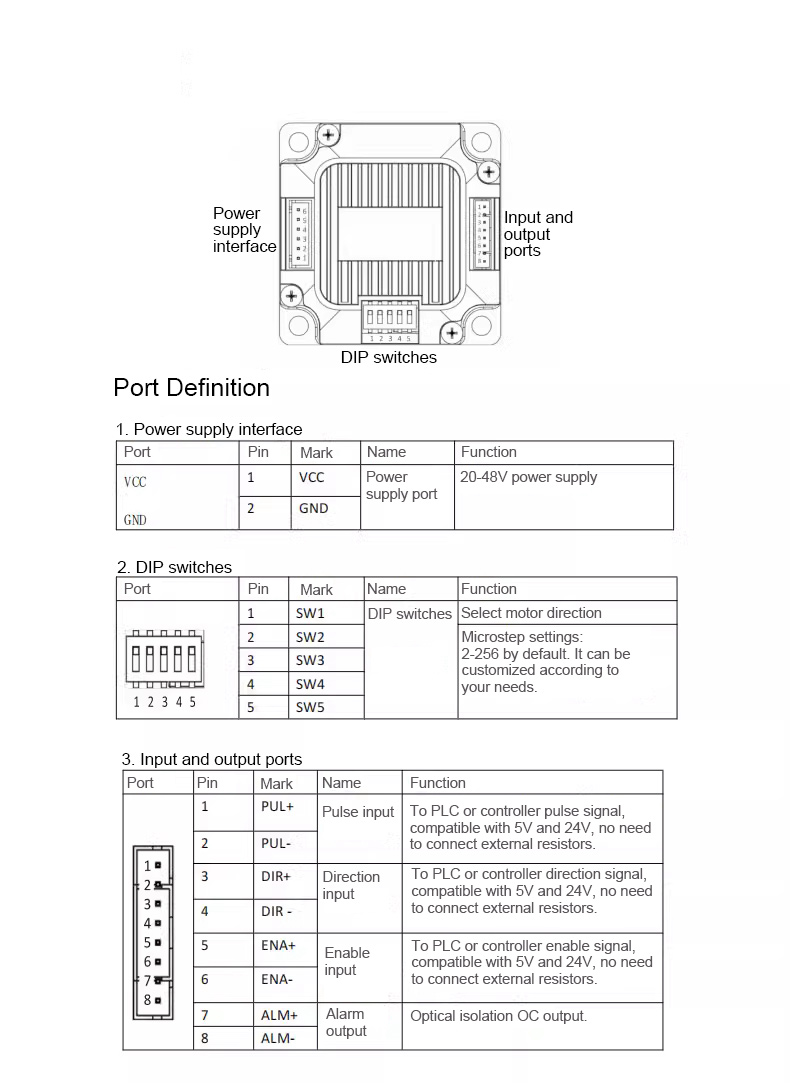

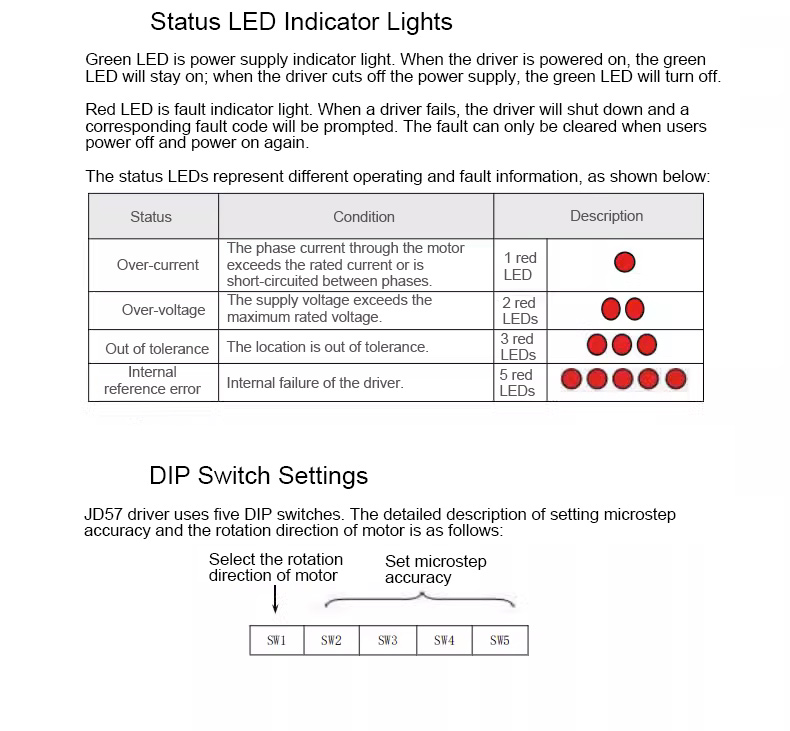

- With 5 DIP switches
- With over-voltage, over-current and out-of-tolerance protection

Package Included:
- 1 x 57-112 step motor
- 1 x Power supply terminal
- 1 x Signal terminal
