| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $24.67 | $24.16 | $23.41 | $22.40 | Contact US |
FOC 3.0 FOC Driver Open Source 2-Channel Current Loop Improved SimpleFOC FOC Controller For BLDC
$50.85
Makerbase MKS Mini FOC Driver Board Support IIC/ABI/SPI/HALL Encoder Brushless DC Motor Controller Board for Arduino
$22.17
Makerbase ODrive3.6 FOC 12V 120A BLDC Servo Single Motor Controller ODrive-S Motherboard USB Debugging
$46.80

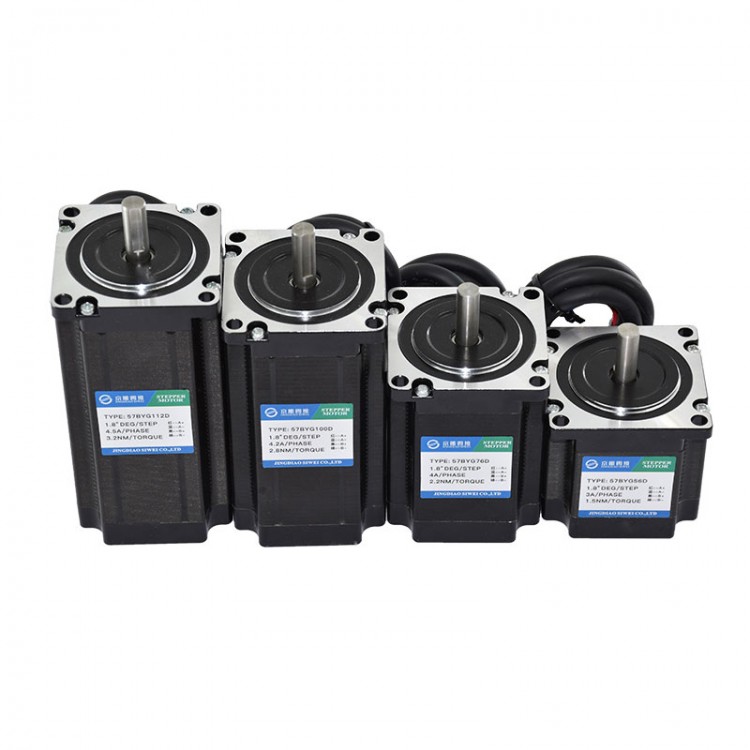

57-56 Sheathed Wire Stepper Motor with Stable Performance Support Current and Voltage Modification
Wiring mode:
AL-: Alarming Signal; connect PLC or controller alarming signal interface
AL+: Alarming Voltage; VDC (+5V and +24V)
EN-: Enable Signal; connected to PLC or controller enable signal terminal
EN+: Enable Voltage; VDC (+5V and +24V)
DR-: Direction Signal; connected to PLC or controller direction signal terminal
DR+: Direction Voltage; VDC (+5V and +24V)
PU-: Pulse Signal; connected to PLC or controller pulse signal terminal
PU+: Pulse Voltage: VDC (+5V and +24V)
VCC: Input power supply (positive pole); VDC (24-60V); recommended common voltage 24V/36V/48V
GND: Input power supply (negative pole); VDC (24-60V); recommended common voltage 24V/36V/48V
Package Included:
- 1 x 57-56 Stepper Motor
