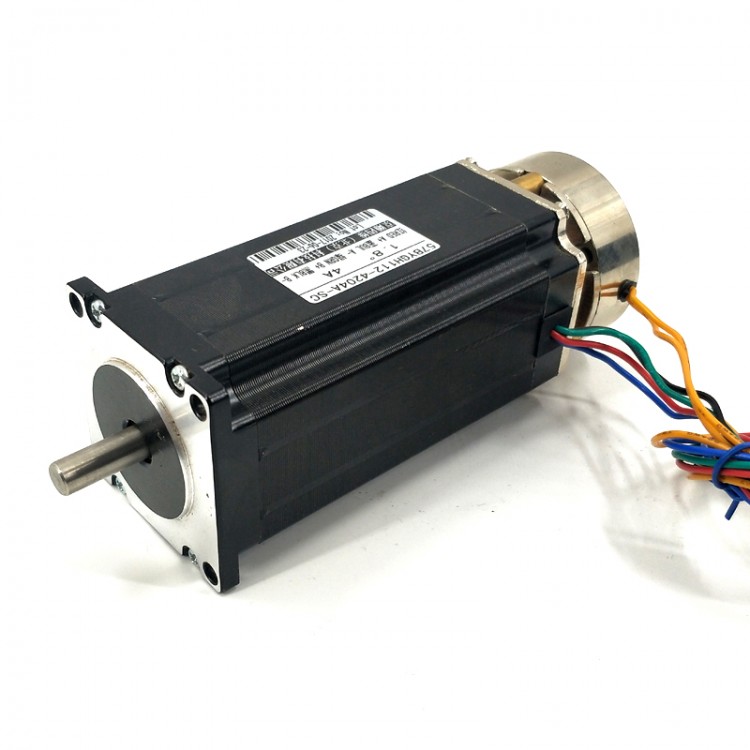

57 Stepper Motor Nema23 2-Phase 4-Lead 4A 2.8N.M motor for CNC XYZ 57BYGH76-4204A-SC

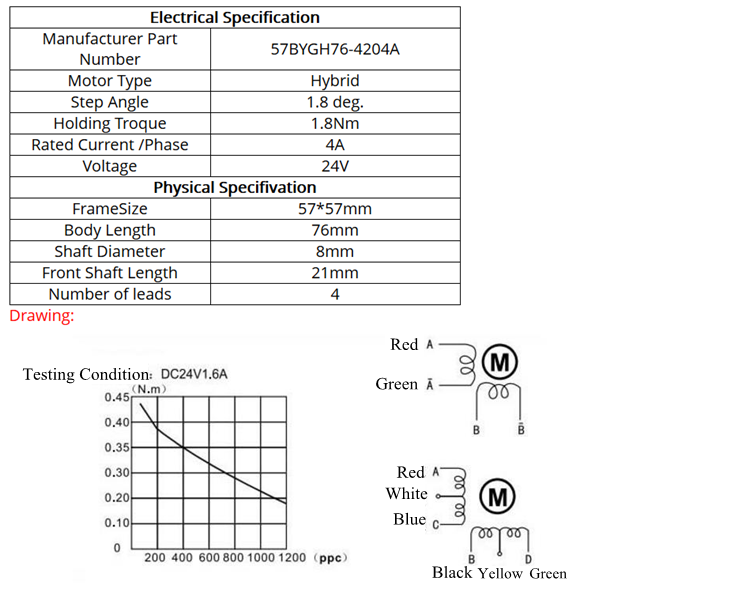

Specifications:
- Model Number: 57BYGH76-4204A-SC
- Type: Hybrid
- Model Number: 57 stepper motor
Description:
- Step Angle (degrees): 1.8 deg.
- Holding Torque: 2.8Nm
- Phase: 2
- Current / Phase: 4

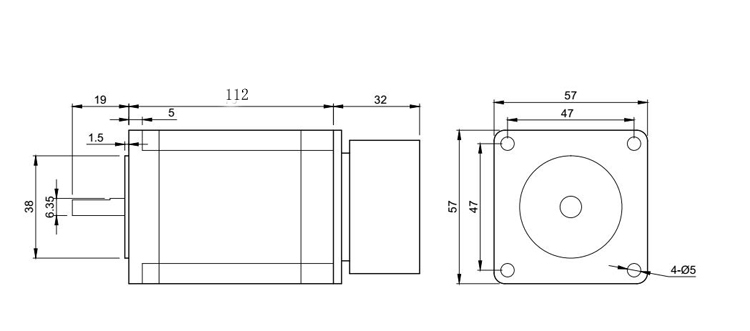

- Size: 57*57*112
- Shaft Diameter: 8mm
- Wiring Configuration: 4-Wire Bipolar
- Application: 3D printer, Robotics, Reprap project and CNC machine
Features:
This stepper motor is one of the most popular model, it with steep angle 1.8deg and size 57x57x112mm. It has 4 wires with 1m cable and 2.54mm pitch connector, each phase draws current 0.4A at 12V, with holding torque 2.8Nm. It can be widely used in 3D printer, robotics, Reprap project and CNC machine.
Package Included:
- 1 x 57BYGH76-4204A-SC Stepper Motor
