Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $38.71 | $37.92 | $36.74 | $35.16 | Contact US |
57 Stepper Motor Nema23 Motor 2 PHASE 4-lead 112MM 4A 2.8N.m for CNC XYZ
Package Included:
- 1 x Stepper Motor
Product Description:
- Step Angle (degrees): 1.8 deg.
- Holding Torque: 2.8Nm
- Phase: 2
- Current / Phase: 4
- Size: 57*57*112
- Shaft Diameter: 8mm
- Wiring Configuration: 4-Wire Bipolar
- Application: 3D printer, Robotics, Reprap project and CNC machine
- Our product can be custom-made
Features:
This stepper motor is one of the most popular model, it with step angle 1.8deg and size 57x57x112mm. It has 4 wires with 1m cable and 2.54mm pitch connector, each phase draws current 0.4A at 12V, with holding torque 2.8Nm. It can be widely used in 3D printer, robotics, Reprap project and CNC machine.

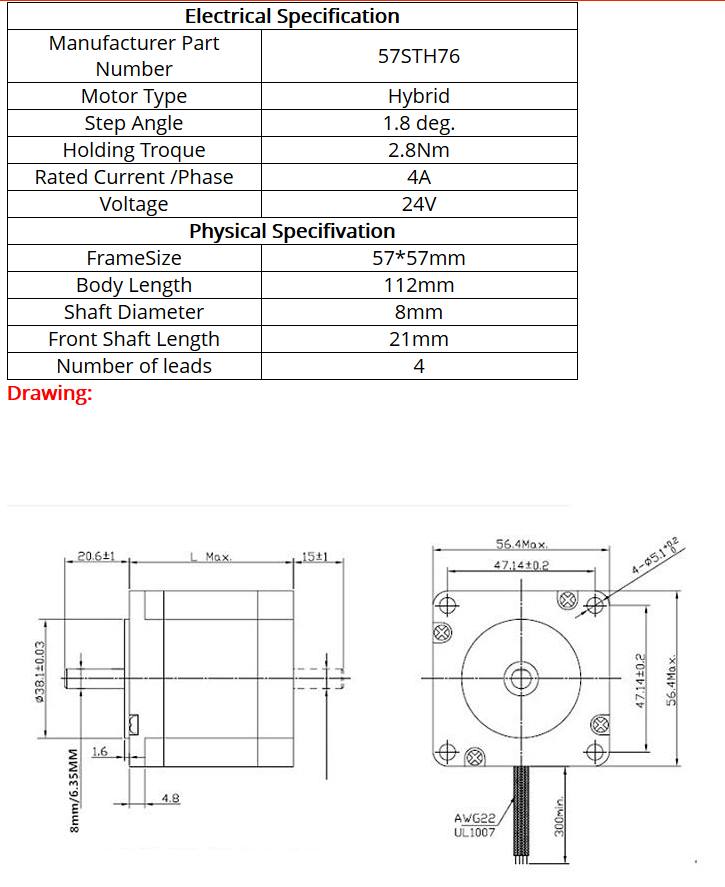

Specifications:
