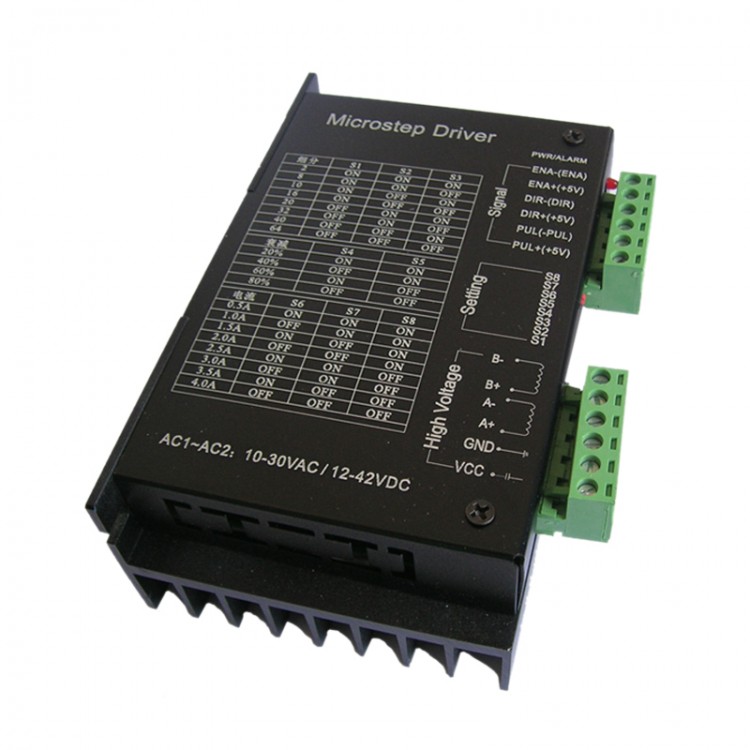

57 Stepping Motor Driver DC42V AC30V 4A 64 Subdivision Microstep Driver HYQD30-0057

Description:
HYQD30-H0057 is a two phase stepping motor driver, which can realize the precise control of multiple subdivision mode. Over temperature protection, over current protection. 8 file segments control (2, 8, 10, 16, 20, 32, 64, 40,) are selected by the 3 bit dial switch, and the 6 file current control (0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A) are selected by 3 bit code switching. For driving 42, 57, 86 two phase, four phase hybrid stepping motor.

Product features:
- Power to AC and DC
- Current selection by dial switch
- Interface adopts high-speed Optocoupler
- Eight segment is adjustable
- Automatic flow
- Anti jamming ability of high frequency
- Maximum voltage of DC 50V

Input and output instructions:
signal input terminal
CP+: pulse signal inputs the positive end
CP-: pulse signal inputs negative.
DIR+: motor clockwise and counter-clockwise controls thepositive
DIR-: motor clockwise and counter-clockwise controls the negative.
EN+: Motor offline controls the positive
EN-: Motor offline controls the negative

motor winding connection
A+: connecting the motor winding A+ phase.
A-: connecting the motor winding A- phase.
B+: connecting the motor winding B+ phase.
B-: connecting the motor winding B- phase.

power supply connection
AC1~AC2 power supply: range: AC12-30V, DC15-42V, do not over this range, otherwise the driver may not work properly, and even damage the driver.
To ensure the best working condition, the DC power supply voltage is 24-36V, AC power supply voltage 18-30V

Package included:
- 1 x Stepper Motor Driver
