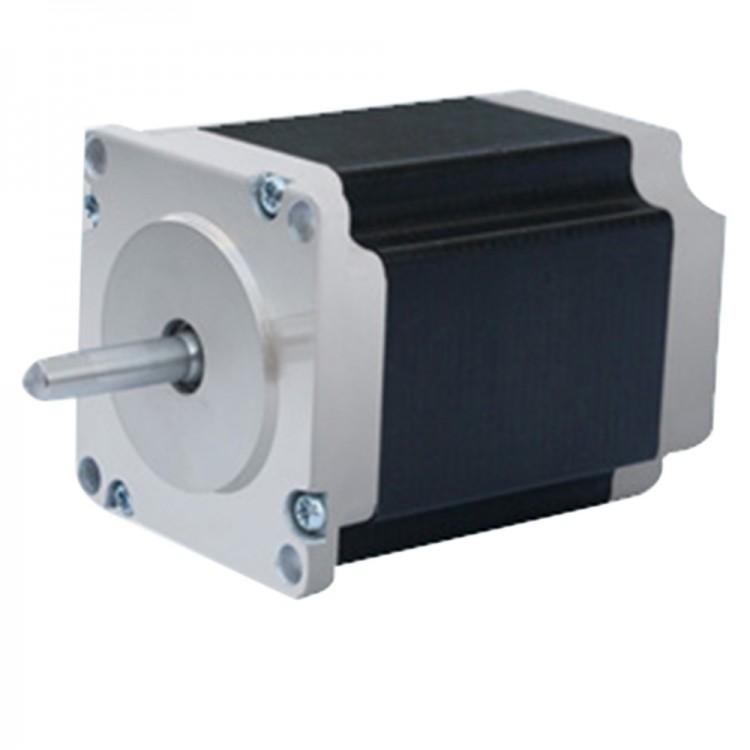

57BHH93-300B 1.8 Degree 4.5V 3A 25kg.cm Four-Phase Synchronous Stepping Motor for CNC
Parameters:
- N.o of phase: 4
- Voltage: 4.5V
- Current: 3A
- Inductance:2.6mH -+20%
- Resistance:1.5Ohm-+10%
- Holding torque (Max.): 25kg.cm
- Rotor inertia g·cm²: 670
- Weight:1.8kg
- Motor length: 93mm
- N.o of lead wire:6
- Step angle: 1.8degree
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Radial runout:0.02mAX.(450g load)
- Axial clearance: 0.08mAX.(450g load)
Note:The pictures shown are for your reference only.
Package included:
- 1 x Stepping Motor
