| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $49.74 | $48.73 | $47.21 | $45.18 | Contact US |
SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

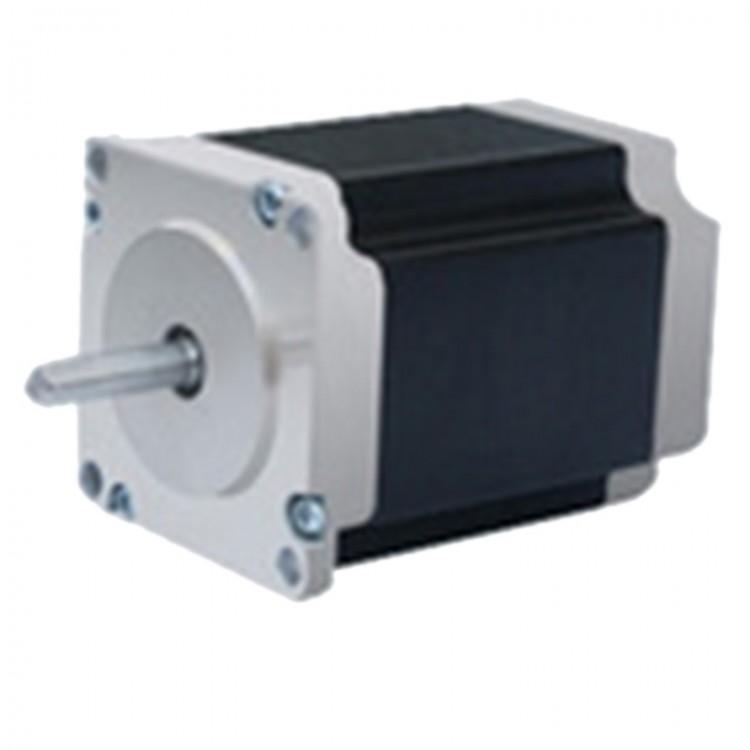

57BYGH250F-03 1.8 Degree 6.0A 1.63mH 29kg.cm Hybrid Stepping Motor for CNC
Parameters:
- Step ange: 1.8 degree
- Body Length: 101mm
- Holding torque: 29kg.cm
- N.O of lead weir: 4
- Current: 6.0A
- Resistance: 0.57Ohm
- Inductance: 1.63mH
- Rotor inertia (g·cm²): 650
- Detent torque: 1.6g.cm
- Stepping accuracy: -+5%
- Temperature rise: 80kMax.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
Package included:
- 1 x Stepping Motor
