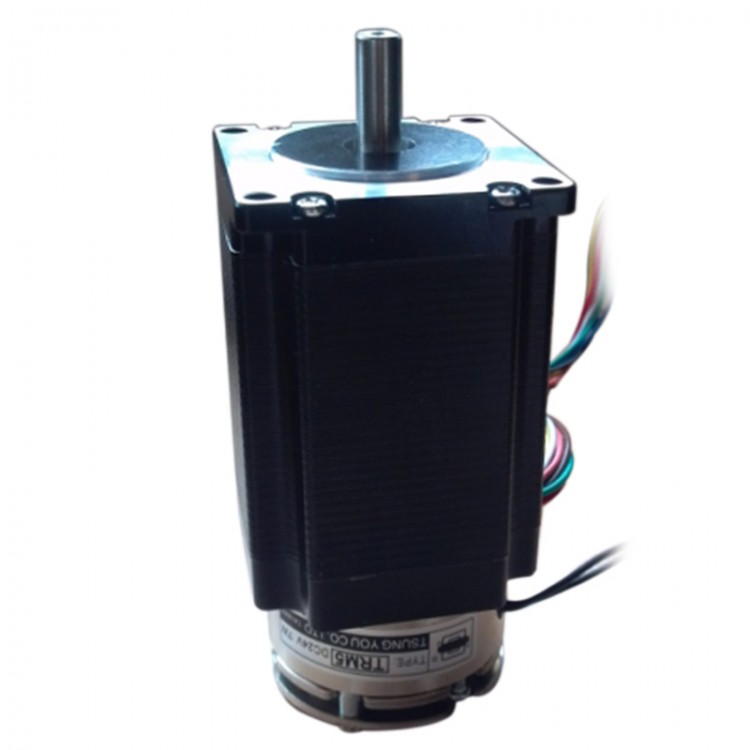

57BYGH280-3004A-BK Brake Stepping Motor 2-Phase 2N.m Stepper Motor CNC
Description:
Rotor diameter is 8mm (6.35mm) milling flat shaft, single output shaft (birotor) with brake 24V power locking.
Connection mode: red and blue A+, A-, black green B+, B-.
Specification:
- Step Angle: 1.8 degree
- Voltage: 3V
- Current: 3.0A
- Resistance: 1Ohm
- Inductance: 3.6mH
- Holding Torque: 2.0Kg.cm
- Number of Leads: 4 (8)
- Rotor inertia: 480g/cmxcm
- Weight: 1.15kg
- Body Length: 80mm
Package included:
- 1 x Stepping Motor
