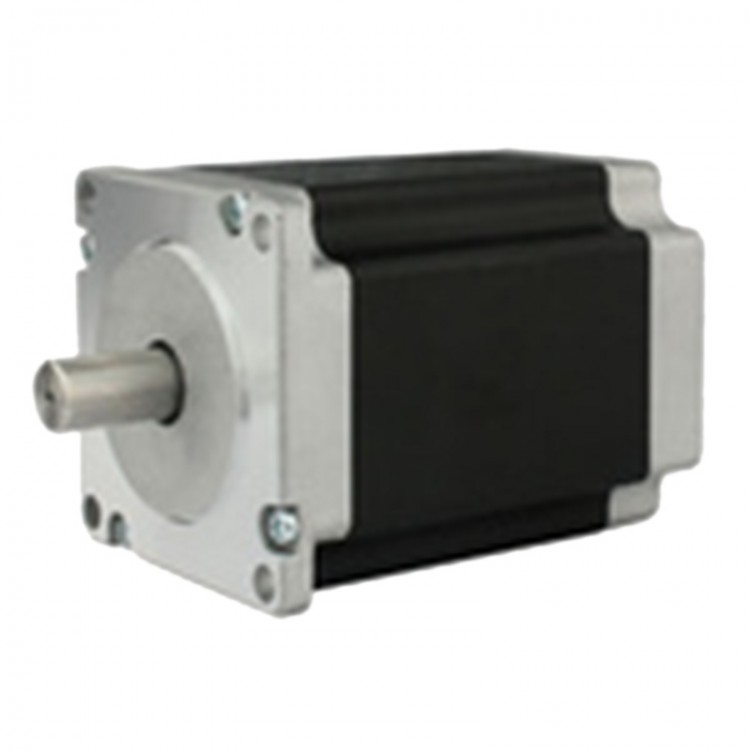

57BYGH350B 1.2 Degree 5.80A 9.0kg.cm 3-Phase Stepping Motor for CNC
Parameters:
- Step angle: 1.2 degree
- Current: 5.80A
- Holding torque:9.0kg.cm
- Max. starting speed: 6.3r/s
- Rotor inertia kg·cm²: 0.22
- Weight: 0.72kg
- Motor length: 56mm
- Shaft dia.: 8mm
- Temperature rise: 85K
- Insulation Class: F
- Environment temperature: -25~40 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Insulation class: E
Package included:
- 1 x Stepping Motor
