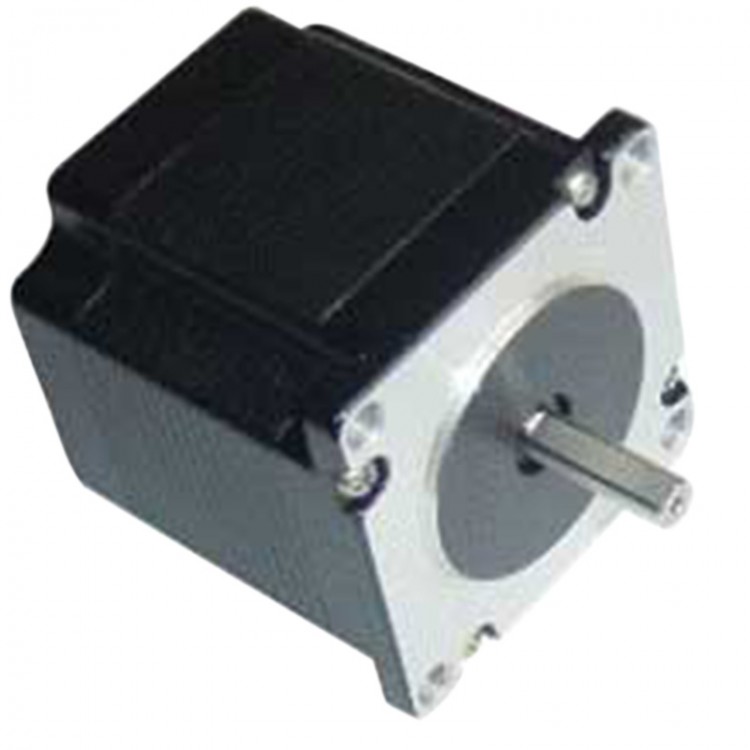

57HB115-424 Hybrid Stepping Motor 4.2V 1.95N.m 1.8 Degree Stepper Motor CNC
Specification:
- Step Angle: 1.8 degree
- Body length: 115mm
- Voltage: 4.2V
- Resistance: 1Ω
- Inductance: 2.3mH
- Holding torque: 1.95N.m
- Rotor inertia: 810g.cmxcm
- Weight: 1.95kg
- Step Accuracy: ±5%
- Temperature Rise: 75℃ Max
- Ambient Temperature Range: -20℃~+50℃
- Insulation Class: B
- Insulation Resistance: 500VDC 100MΩ Min
- (Dielectric Strength: 500VAC 50Hz 1Ma Minute
- radial runout: 0.02mmMax(450g loading)
- Rotor clearance: 0.08mmMax(450g loading)
- Matched driver: YK2203MA/YK2304MA/YK2404MA
Package included:
- 1 x Stepping Motor
