57mm Air Cooling DC Spindle Motor with Motor Mount ER16 110V 600W CNC Router Engraving Machine Motor
Specifications:
- Spindle motor: DC Motor NMB bearing
- Working voltage: 24-110V DC
- Power: 600W
- No load speed: 2880-13200r/min
- Torque: 600mN.m
- Insulation resistance: >2 MOhm
- Dielectric strength: 400V

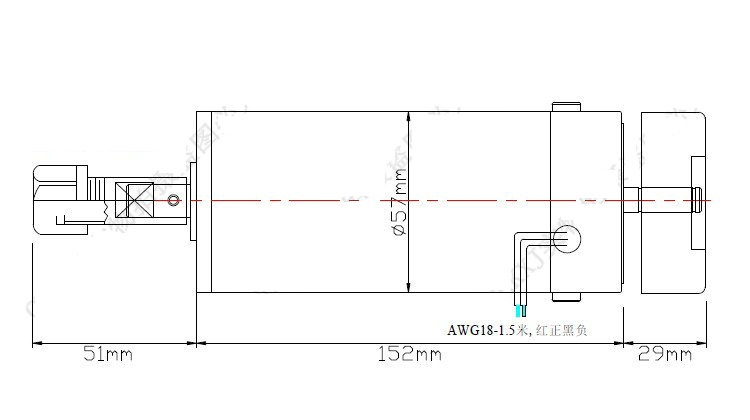

- Motor body diameter: 57mm, output shaft diameter: 9.525mm
- Collet: Blade position 37mm (including nut and filling 47mm)
- Collet: Diameter 20mm
- Motor length: 232mm (including the clamping part and motor)
- Spindle net weight: 1.8KG
- Radial runout: 0.01-0.03.
- Can be used for engraving metal or nonmetal materials.

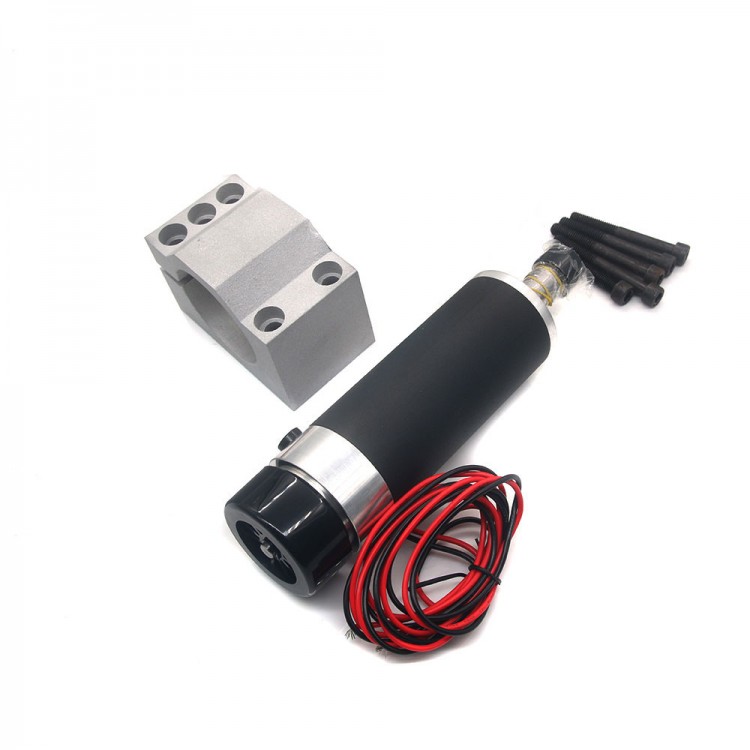

Package list:
- 1 x DC Spindle Motor

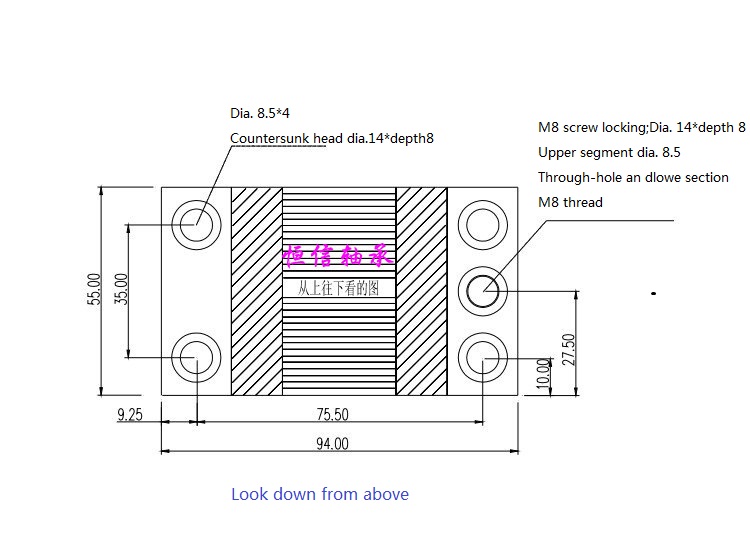

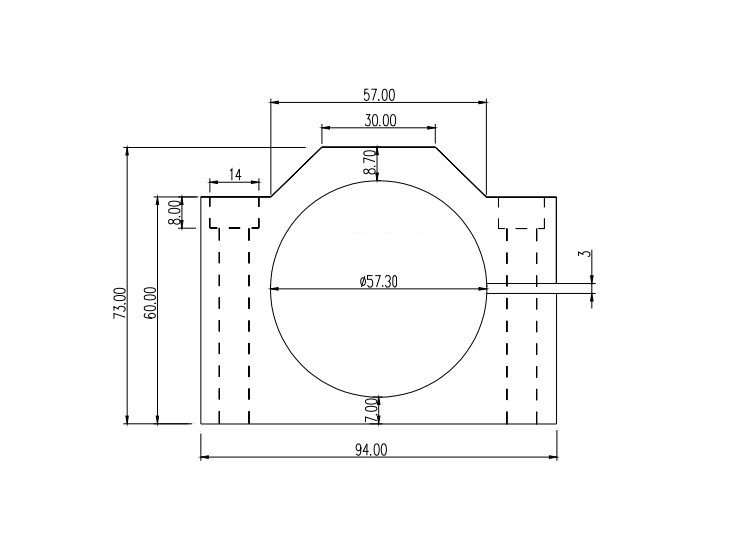

- 1 x Motor Mount
