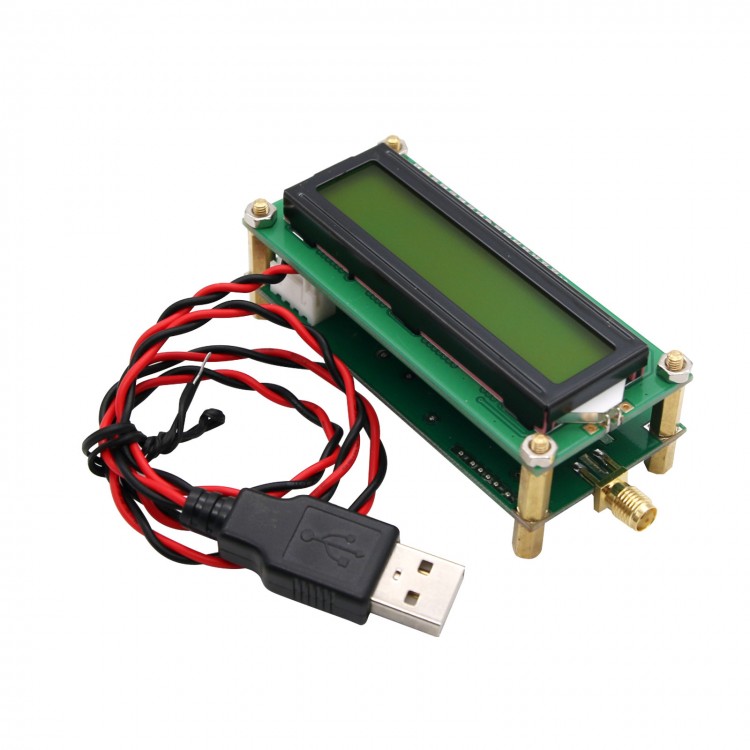

5KHz-2700MHz RF Power Meter Space Broadband RF Signal Meter Detector GL2700
Specifications:
- Power Supply: DC 4.5V-5.5V. Please keep it running within the range. (Or powered by power bank 4.96V)
- Operating Current: <50mA
- Input Impedance: 50Ω
- Measured Frequency Range: 5KHz-2700MHz
- Measured Power Range: -50dBm(W) to +5dBm(W)
Features:
- MCU as the core simplifies its design, saving time and money.
- When measuring high-power hand-held radios, add an attenuator or keep a certain distance. Pay attention to the impedance of the measuring device.
- There are two rows in its display screen. The first row shows its power level, which increases by about 2dBm(W) for each additional half of the grid from left to right, and the refresh rate is 25 times per second. The lower row shows its power value and the refresh rate is 2 times per second.
Package Included:
- 1 x Simple RF Power Meter
Note:
- AVR m8 MCU and AD8362 chip are adopted for power detection.
- The output constant voltage of your power bank is recommended to be 4.96V.
- Provide the underlying source code of this microcontroller for enthusiast maintenance and magic modification.
