5MP Industrial Camera Industrial Microscope Camera Magnifier with 0.5X C Port Eyepiece Adapter Rings
Features:
- High-speed USB2.0 interface, up to 480Mb/s.
- Large area array progressive scan image sensor for CMOS.
- Support for static and dynamic image record.
- Can control any position of recorded image.
- Transmission rate up to 15f/s 1280 x 1024.
- Exposure time: any adjustable.
- 8bit uncompressed raw image data, software implementation color conversion plug and play installation.
- Support for Windows 2000, XP, WIN7 operating system.
- The image is stable and reliable, after a long period of rigorous testing performance indicators.
- 5MP. Can be widely used in pattern recognition, industrial testing, medical microscopy and traffic management and machine vision and other fields. More widely used in various fields of microscope and image acquisition of various occasions.
- 0.5X (the object is reduced to half the original, doubling the field of vision) C mouth eyepiece interface (adapter), designed for the microscope .The upper mouth is C interface (for connection to microscope CCD, CMOS cameras, digital cameras, industrial cameras), the under mouth is the 23.2mm straight inserted, with rubber.
- This item with two adapter rings, 23.2mm to 30mm and 23.2mm to 30.5mm.
Specifications:
- Image sensor: For 1/2.5" color CMOS image sensor
- Pixels size: 2.2 μm x 2.2 μm
- The spectral response: 400 nm to 1000 nm
- Scan mode: progressive scan
- Pure hardware 5 megapixel image sensor, no compression, no interpolation
- Resolution: 640x480, 1280x1024, 1600x1200, 2048x1536, 2592x1944
- Transmission rate: 30F @ 640X480; 15f @ 1280X1024; 5f @ 2592x1944
- White Balance: Auto/Manual
- Auto Exposure Control: Auto/Manual
- Image output: USB2.0, 480Mb/s
- Operating temperature: 0℃~ 50℃

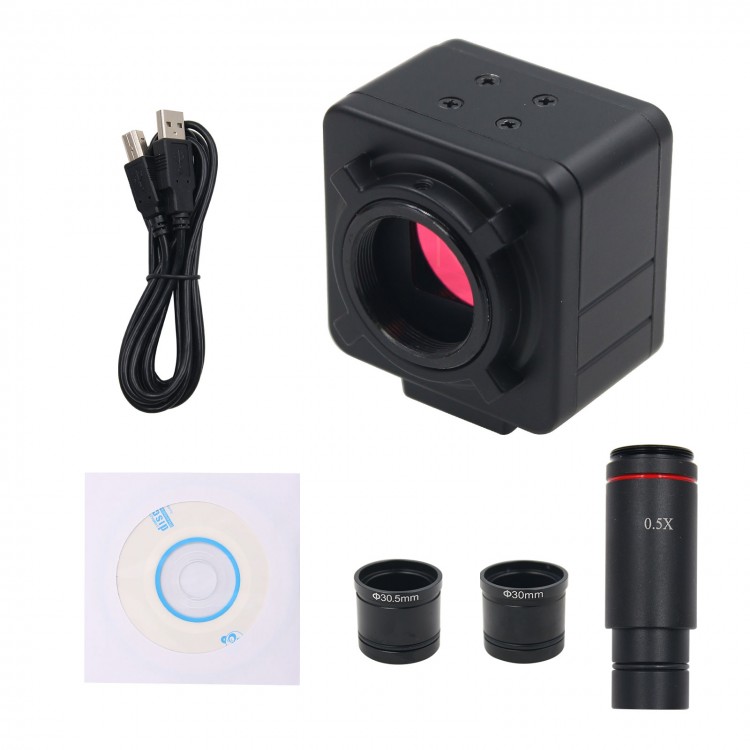

Package Included:
- 1 x Industrial Camera Body
- 1 x USB Cable
- 1 x 0.5X C Port Eyepiece Interface
- 1 x 23.2 to 30mm Adapter Ring
- 1 x 23.2 to 30.5mm Adapter Ring
