5MP USB Microscope Camera Microscope Eyepiece Camera Industrial Camera Kit With 23.2MM Adapter

5MP USB Microscope Camera Microscope Eyepiece Camera Industrial Camera Kit With 23.2MM Adapter

Description:
Can be widely used in pattern recognition, industrial testing, medical microscopy and traffic management and machine vision and other fields. More widely used in various fields of microscope and image acquisition of various occasions.

0.5X (the object is reduced to half the original, doubling the field of vision) C mouth eyepiece interface (adapter), designed for the microscope. The upper mouth is C interface (connected to the microscope CCD, for CMOS cameras, digital cameras, industrial cameras), the under mouth is the 23.2mm straight inserted, with rubber.

This item with two adapter rings, 23.2mm to 30mm and 23.2mm to 30.5mm.

Features:
1. High-speed USB2.0 interface, up to 480Mb/s
2. Large area array for CMOS progressive scan image sensor
3. Support for static and dynamic image collection
4. Exposure time: any adjustable
5.8bit uncompressed raw image data, software implementation for Bayer color conversion plug and play installation
6. Support for Windows 2000, XP, WIN7 operating system
7. The image is stable and reliable, after a long period of rigorous testing performance indicators

Camera Specifications:
- Image sensor: 1 / 2.5" color for CMOS image sensor
- Pixels size: 2.2 μm x 2.2 μm
- The spectral response: 400nm to 1000nm
- Scan mode: progressive scan
- Pure hardware 5 megapixel image sensor, no compression, no interpolation
- Resolution: 640x480, 1280x1024, 1600x1200, 1920x1080, 2048x1536, 2592x1944
- White Balance: Automatic / Manual
- R.G.B value setting independent
- Automatic Exposure Control: Automatic / Manual
- Image output: USB2.0, 480Mb/s
- Operating temperature: 0℃ to 50℃

Package Included:

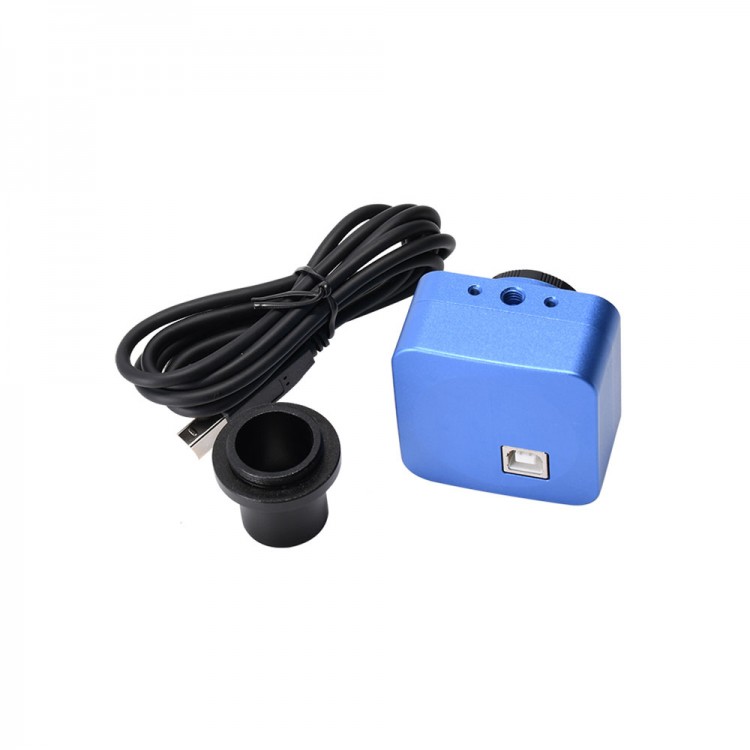

- 1 x Set of Microscope Camera

Note:
- Microscope is not included in the package.
