| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $56.03 | $54.88 | $53.17 | $50.88 | Contact US |

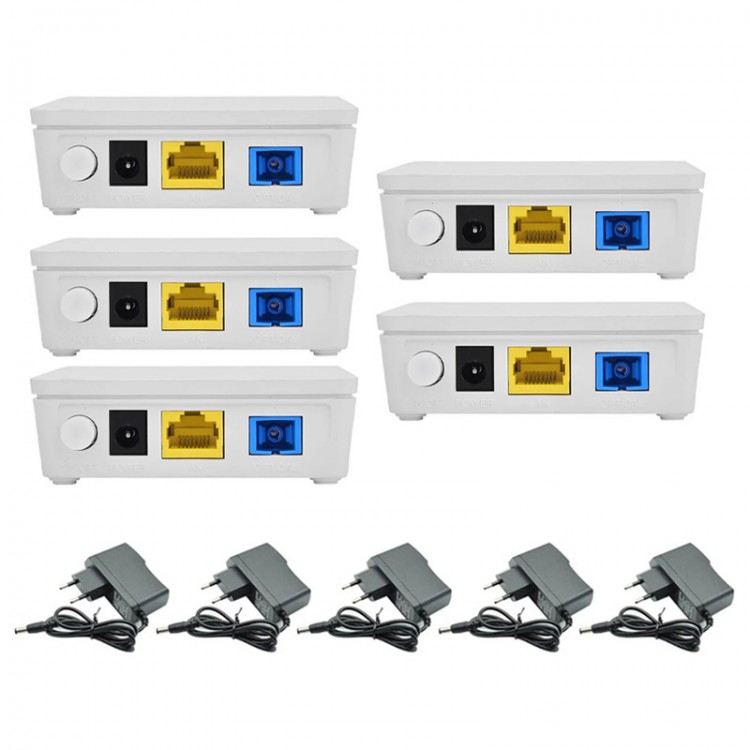

5PCS HG8310M 1GE GPON ONU SC/APC Interface Optical Network Terminal Gigabit Modem with Power Adapter
$57.17
5PCS HG8310M GPON ONU SC/APC Interface Optical Network Terminal Gigabit Modem without Power Adapter
$49.64
5PCS HG8310M EPON ONU Optical Network Terminal Gigabit Modem (without Power Supply) for Broadcasting
$49.64
5PCS HG8310M EPON ONU Optical Network Terminal Gigabit Modem (with Power Adapter) for Broadcasting
About Product:
EchoLife HG8310M is an ONU terminal from the renowned Huawei company, used in FTTx networks, EPON solutions. Its small dimensions and simultaneous high performance make it a perfect client device. It has one Gigabit Ethernet port and a 1.25Gbps - SC/UPC EPON connector.
The device is very small, which makes it easy to install and set up at any location. The terminal offers high switching capacity and very high throughput to meet even the highest demands. It is powered by a 12V 0.5A power supply.
Attention:
* The device has a blue EPON - SC/UPC port!
Main Features:
* 1 EPC port 1.25Gbps - SC/UPC
* 1 Gigabit Ethernet port
* Plug-and-play
* Built-in DHCP server for automatic IP address assignment
* Built-in dynamic DNS (DDNS) support and supports for No-IP service
* Supports for port forwarding, DMZ and firewall functions
* Quick and easy installation and configuration
* Remote management, configuration and diagnostics
* Supports a 12V 0.5A power supply
Specifications:
Features / filters:
* Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)
* PON standard: EPON
* Wireless network standards: None
* USB port: None
* VoIP ports: None
Technical specification HG8310M:
Interfaces:
* EPC: 1 port Class B+. Sensitive reception: ~-27 dBm. Flexible mapping between the GEM and TCONT ports. Wavelength: US 1310nm, DS 1490nm; Two-way FEC; SR-DBA and NSR-DBA
* Ethernet: 10/100/1000BASE-T (RJ45); MAC address learning; Transparent transmission of IPv6 packets on layer 2 level; QinQ VLAN
* Connection type: SC/UPC
Physical characteristics:
* Operating temperature: 0 to 40℃
* Operating humidity: 5%-95% RH non-condensing
* Power input: 100 - 240 V AC, 50 - 60 Hz
* Average power consumption: 2W
* Maximum power consumption: 3W
* LEDs: POWER / PON / FATE / LAN
Package Included:
* 5 x EPON ONU
* 5 x Power Adapters
Packaging Details:
* G.W.: 1.1kg
