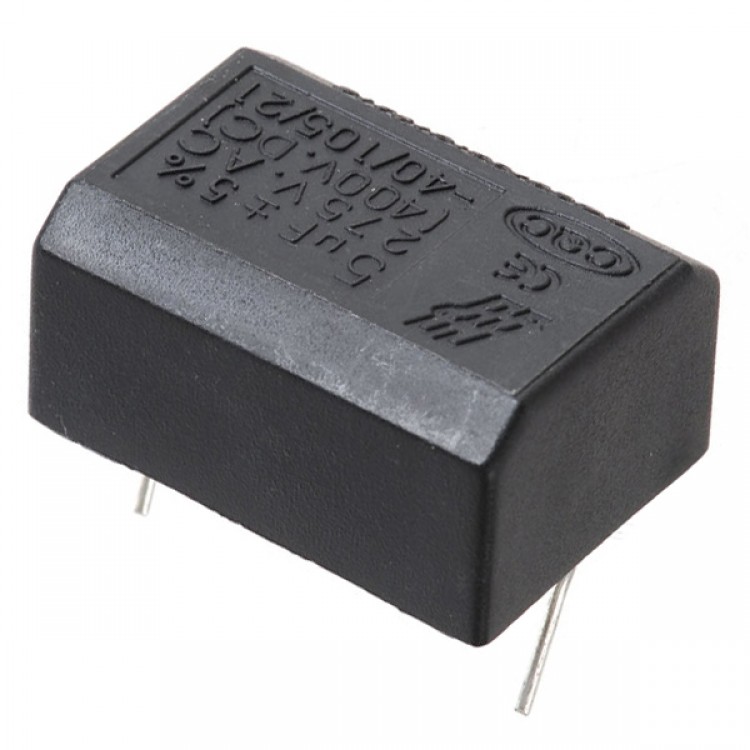

5uf 275VAC 400VDC Metallized Polypropylene Film Capacitor for Motor 10-Pack

Availability: Out Of Stock

  • Price:$12.84
  • Price in reward points: 128 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.58 $12.33 $11.94 $11.43 Contact US
Quantity:

5uf 275VAC 400VDC Metallized Polypropylene Film Capacitor for Motor 10-Pack
Features:
- Small dissipation factor
- long life,safety
- small size small loss
- ISO 9001:2008 standard
- With a small loss,anti-moist,excellent electrical performance,reliability,large capacity,long life and good self-healing properties
Application:
- AppIied to starting and better working of single-phase motor in 50Hz(60Hz) AC electric power system. It is widely used for electric fan, range hood, air exchange fan,washing machine, and also power saver
Technical parameters:

Capacitance Range

0.1μF—35μF

Capacitance Tolerance

±5% , ±10%

Rated Alternate Voltage

250VAC, 350AC, 370AC, 400VAC, 440VAC, 450VAC,500VAC

Rated Frequency

50/60 Hz

Dissipation Factors

≤0.002(1KHz,20°C)

Operating Temp.

-40°C ~ +85°C   or   -40°C ~ +70°C

Case Material

PBT, PP, ABS, Flammability Class - UL 94 V -2, 750C (RTI)

Dielectric

Polypropylene with self healing SH

Insulation Resistance

≥3000S

Weather Category

40/85/21, 40/70/21

Withstand voltage(Terminal to Terminal)

2 X Rated Voltage

Withstand voltage

(Terminal to Case)

Minimum 2000 V AC for 1 Min.

Ref. Standard

IEC - 252-1993

Quality System

ISO 9001:2008

Approvals

CQC,CE

Application

Electrical motor, pump, washing machine, Power saver
