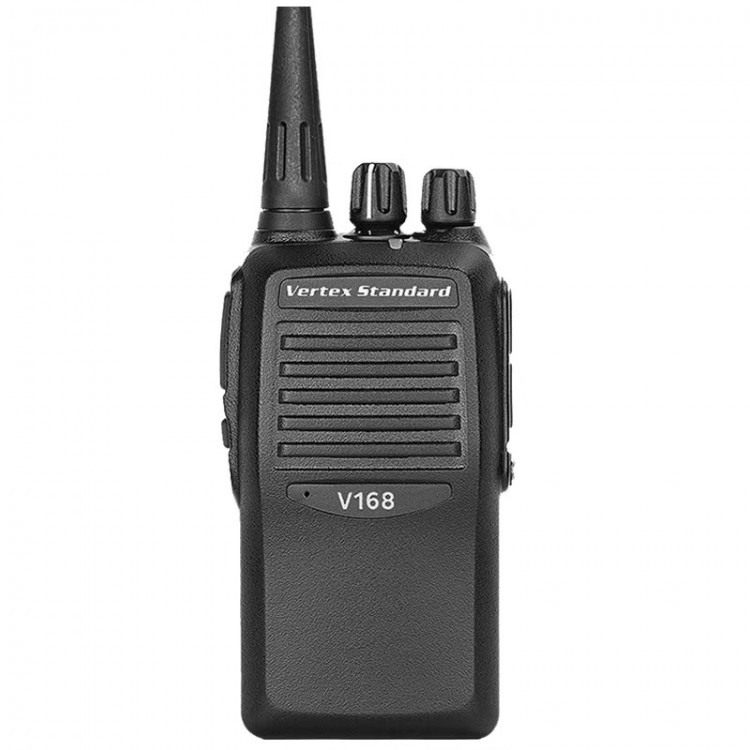

5W 10KM UHF Radio Walkie Talkie 400-470MHz Handheld Transceiver V168 for Vertex Standard

5W 10KM UHF Radio Walkie Talkie 400-470MHz Handheld Transceiver V168 for Vertex Standard

Features:
- 16 Channels: Allows users to divide their work teams into different talk groups to improve work efficiency
- Busy channel lockout: This function enabled, when the channel is busy, pressing the PTT key to transmit will be prohibited, and a call prohibition tone will be played until the PTT key is released
- Power saving mode: This working mode can prolong the battery endurance time. After the power saving mode is activated, if no call is detected, the walkie-talkie circuit will be turned off
- Low battery alert: LED and beep to indicate low battery
- Long battery life: 1300mAh Li-ion battery provides up to 11 hours of use at 5-5-90 duty cycles (5% transmit, 5% receive, and 90% standby)
- TOT: prevent the walkie-talkie from occupying a channel for a long time
- High and low power adjustments: High and low power calls are possible
- Voice channel broadcast supports Chinese and English: This function enables the intercom to indicate the user-triggered operation or the occurrence of an operation by voice
- Analog and digital sub-tone settings: analog and digital sub-tone settings can be made
- 9-level squelch level setting: select the squelch level according to different environments to reduce background noise
- Rugged construction and reliable quality: Drop resistant and durable; sturdy and non-slip; secure Communication
- The battery has an anti-counterfeiting label
- Loud voice: The voice output power of the walkie-talkie is up to 1000mW, ensuring that users can hear the other party's speech clearly in a noisy work environment
- V168 can store up to 16 channels through programming software. Each channel can define transmit and receive frequency, sub-tone code, wide and narrow band, high and low frequency, scan add and busy channel lockout independently
- Applications: for railways, construction sites, property management, supermarkets, hotels, and traffic departments

Performance Parameters:
General Specifications:
- Frequency range: 400-470MHz
- Number of channels: 16
- Fixed function side keys: 1
- Voltage: 7.4VDC±10%
- Channel Spacing: 25/125KHZ
- Battery life: 11 hours (FNB-Z131L)
- Operating temperature range: 20°C to 60°C
- Frequency Stability: ±15PPM
- RF input-output impedance: 50 ohms
- Dimensions (HxWxD): Approx. 114 x 57 x 36mm/4.5 x 2.2 x 1.4" (including lithium battery)
- Weight: about 220g/0.5lb (including lithium battery, antenna, and belt clip)

Receiver:
- Sensitivity: Analog 12DB SINAD: 025MV
- Adjacent channel selectivity: TA603: 65/55DB (25KHZ/125KHZ)
- Channel Spacing: 25/125KHZ
- Intermodulation: 65/60DB
- Spurious Suppression: 70DB
- Hum and Noise: 45/40DB (25KHZ/125KHZ)
- Audio output: 1000MW at 16OHMS[internal] /200MW at 32OHMS[external]
- Audio Distortion: <5%
- Conducted Spurious Emissions: -57DBM (<1GHZ); -47DBM (>1GHZ)

Transmitter:
- Output power: 4W/1W [UHF]
- Modulation Limit: ±50KHZ [25KHZ]; ±25KHZ [125KHZ]
- Conducted Spurious Emissions: -36DBM [S1GHZ]; -30DBM [>1GHZ]
- FM noise and noise: 45/40DB [25KHZ/125KHZ]
- Audio Distortion: <5%
- Analog FM modulation: 16KOF3E [25KHZ]/ILKOF3E [12.5KHZ]

Package Included:
- 1 x Walkie Talkie Body
- 1 x Battery
- 1 x Back Clip
- 1 x Charger Dock
- 1 x Power Adapter
- 1 x Antenna
- 1 x User Manual
