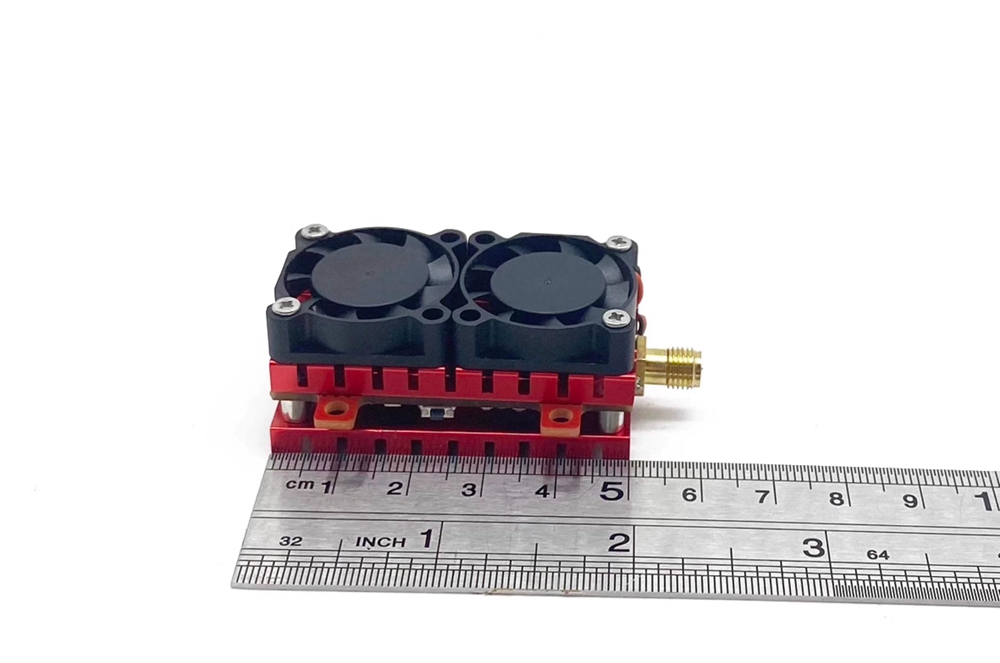

5W 5.8G 48-Channel FPV VTX Transmitter Module Dual Cooling Fan Built-in Microphone for FPV Racing Drones

5W 5.8G 48-Channel FPV VTX Transmitter Module Dual Cooling Fan Built-in Microphone for FPV Racing Drones

Specification:
- Working frequency: 5.8g

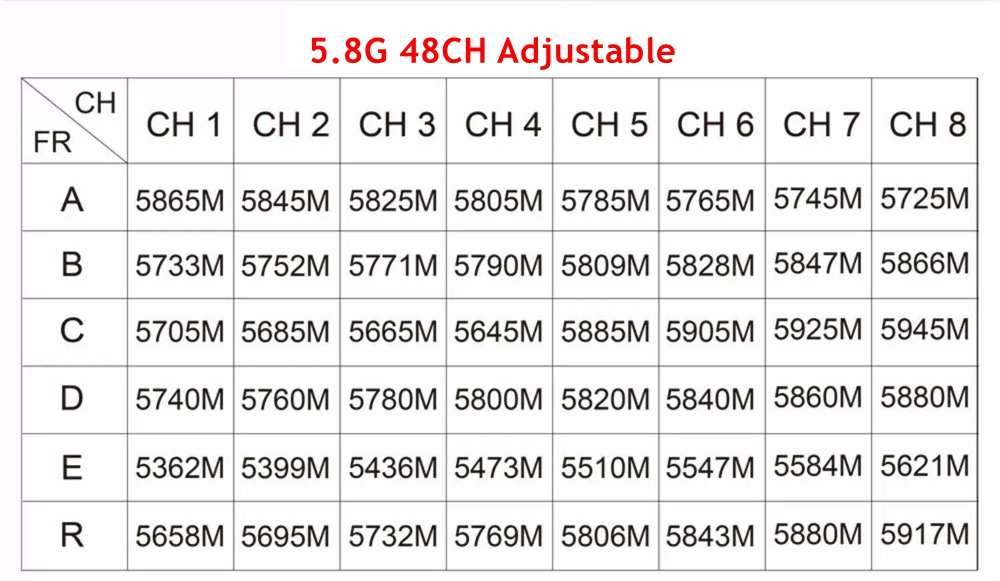

- Working channel: 48CH
- Working voltage: 7 - 36V
- Voltage output: 5V/200mA
- Power output: 200mW/500mW/1.2W/5w adjustable
- Current: 200mW/320mA, 500mW/460mA, 1200mW/650mA, 5000mW/1.2A

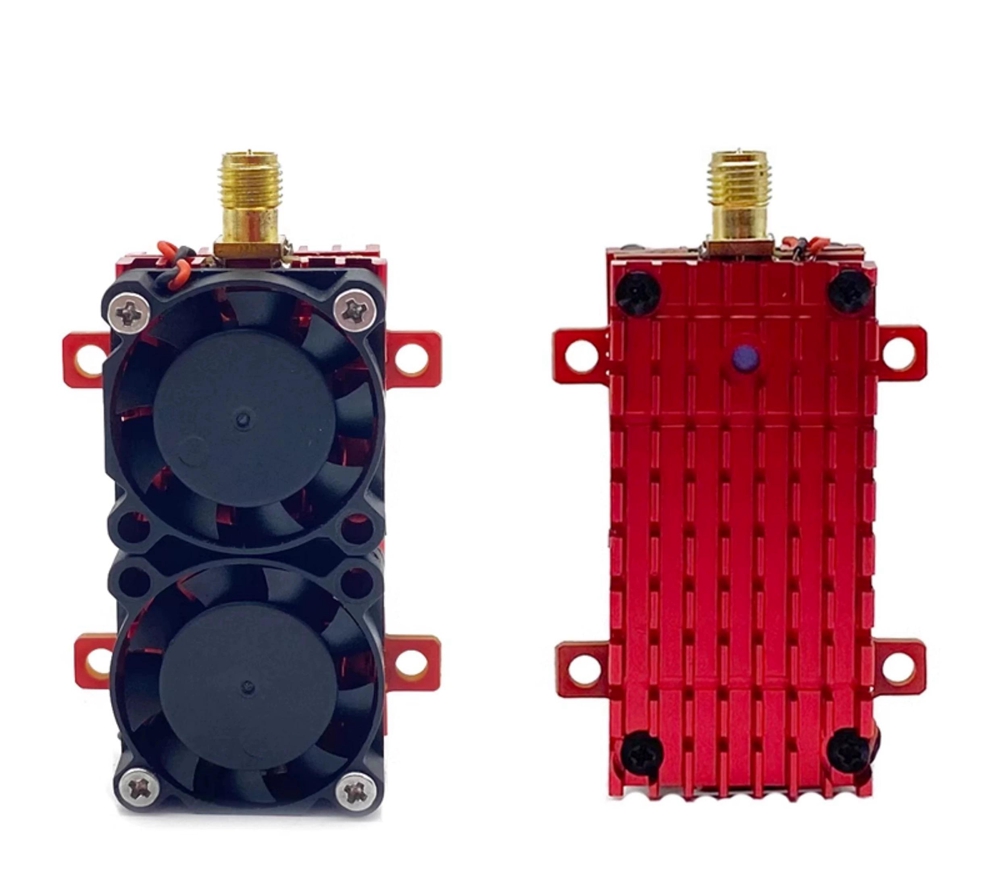

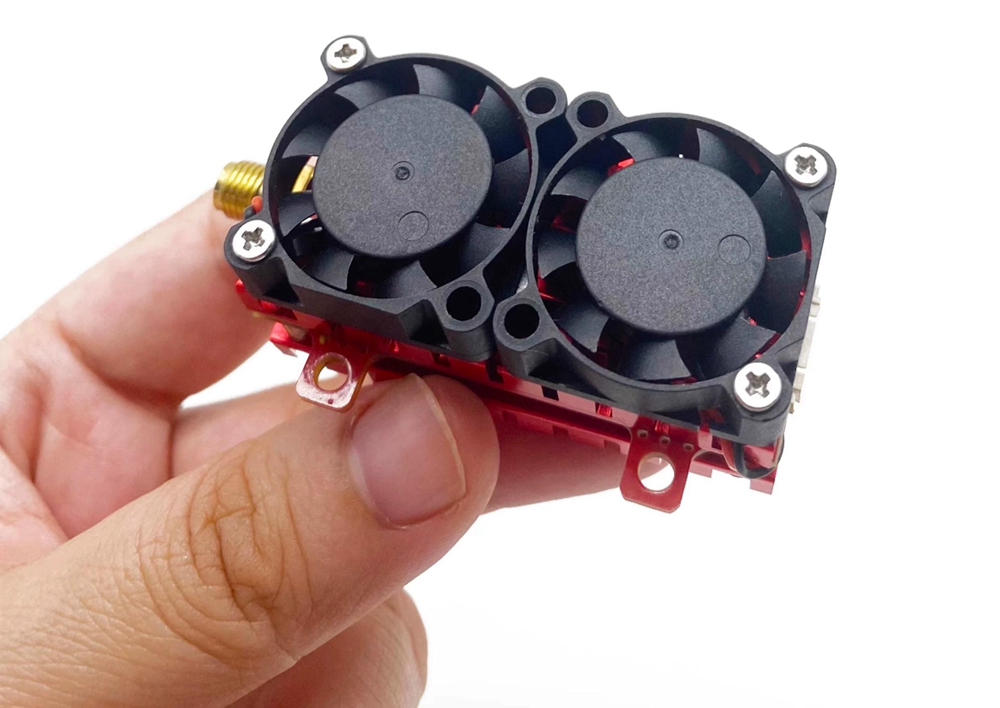

- Features: dual heat sink + dual cooling fan
- Module indication: single button, double light indicator (red and blue)

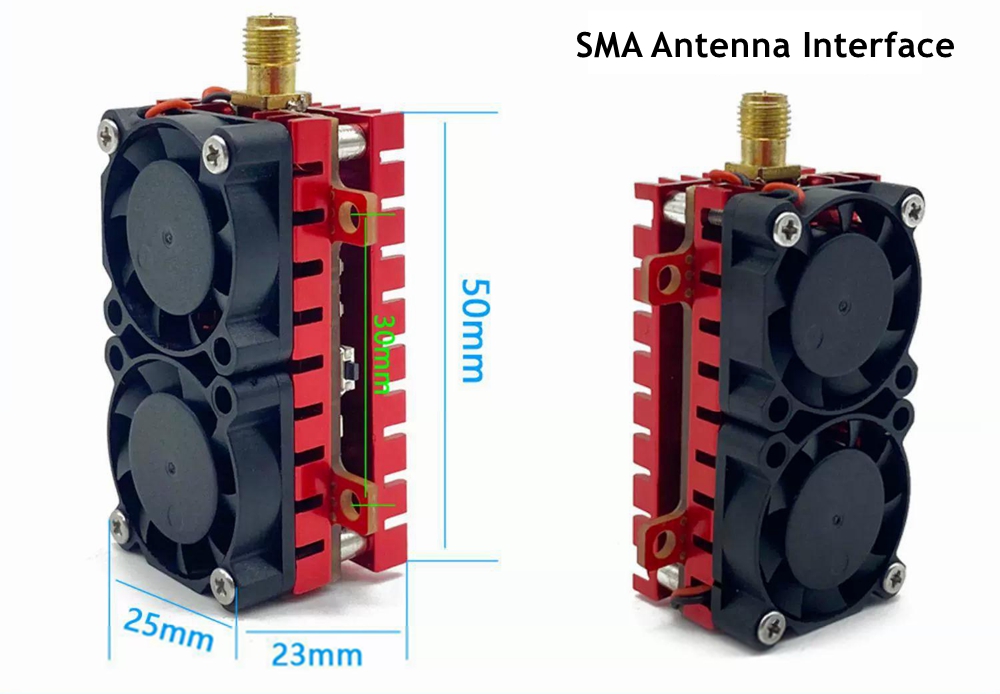

- Antenna: standard SMA connector, 2dBi

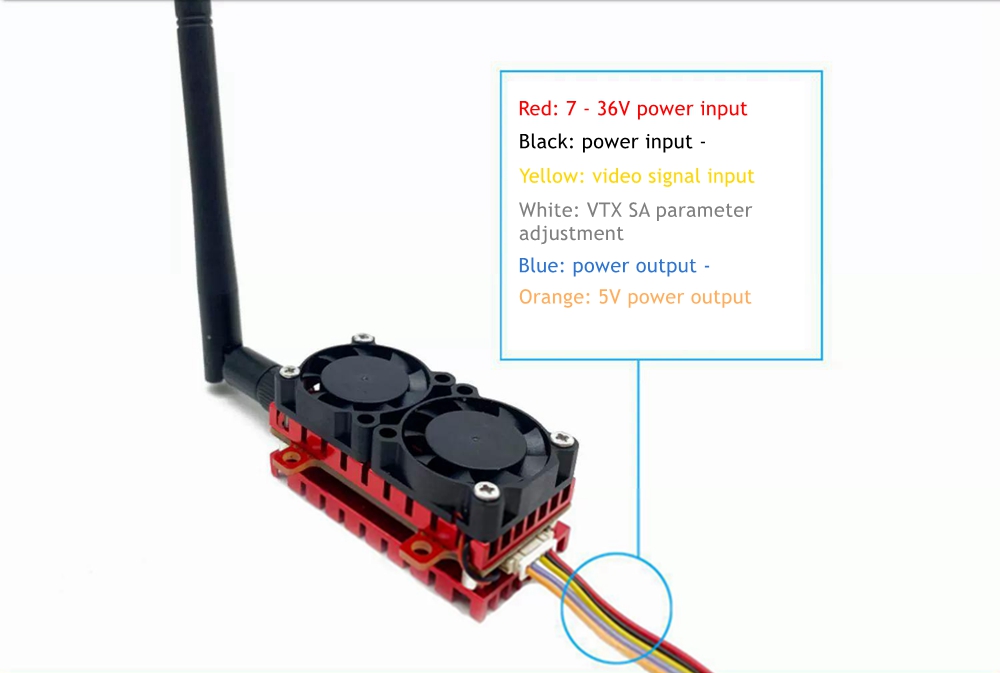

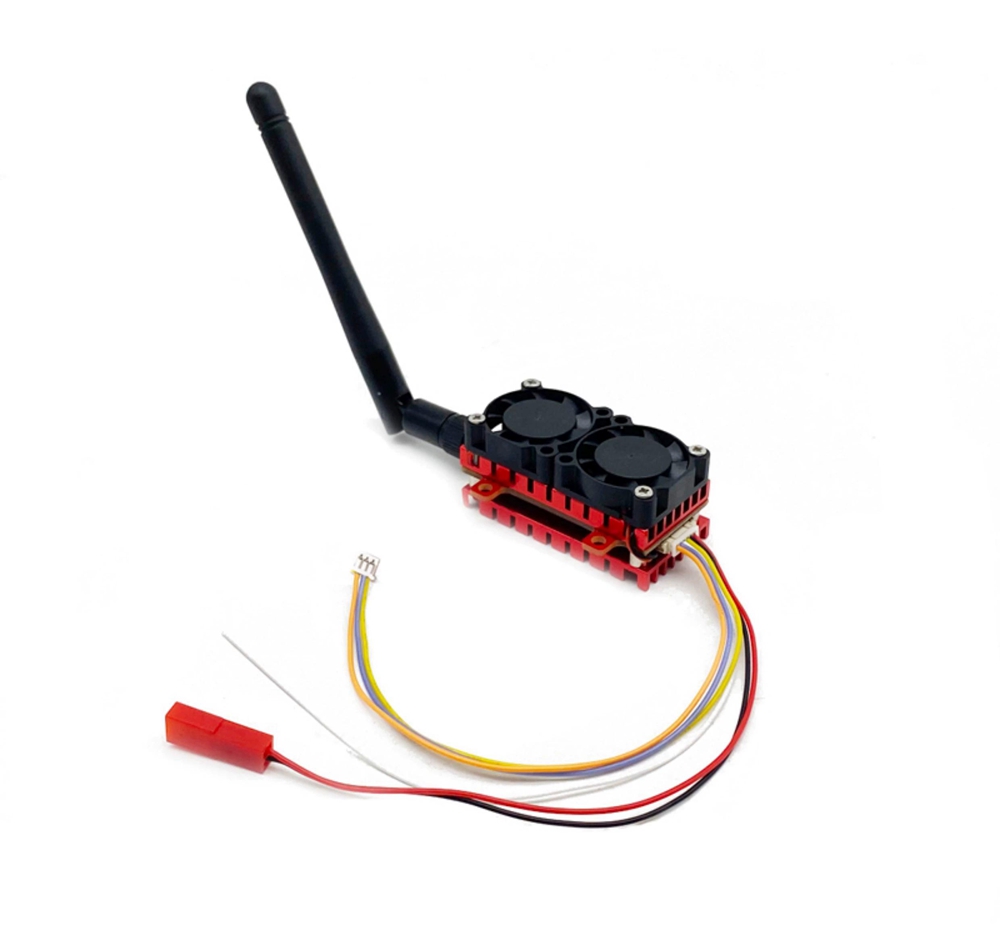

- Wiring terminal: 6-wires, JST + 1.25*3pin external camera interface

Button Description:
- After power on, long press the button to cycle and adjust the channel frequency, channel group, and power. Long press switch (red light), short press switch (blue light), double press to switch to Pit mode.
- Step 1: Long press the button to adjust the frequency point (CH1-CH8) when the red light flashes once. At this point, press the button briefly. When the blue light flashes once, it indicates CH1; when it flashes twice, it indicates CH2; and so on, adjust to the desired frequency.
- Step 2: Long press the button, adjust the channel group (A-R) when the red light flashes twice. At this point, press the button briefly. When the blue light flashes once, it indicates channel group A; when it flashes twice, it indicates channel group B. Repeat this process and adjust to the desired channel number.
- Step 3: Long press the button. When the red light flashes three times, the power can be adjusted. At this time, short press the button. When the blue light flashes once, it means 200mW, when the blue light flashes twice, it means 500mW, and so on. Adjust the power to your desired level. Finally, long press the button to save the parameters, and the red and blue lights will remain on.
- Pit mode: Press the button twice quickly to turn on or off the transmission (Pit Mode). When both the red and blue lights are on, it indicates that the image transmission is transmitting. When the red and blue lights flash, it indicates that the image transmission is turned off. In Pit Mode, the working distance is only 1-2 meters.

Precaution:
- Before powering on the image transmission module, ensure that the antenna is correctly installed and the positive and negative interfaces are clearly defined to avoid damaging the product when powered on.
- The installation of image transmission requires space to ensure the convection of surrounding air and the heat dissipation of the module. Otherwise, the module will overheat and enter protection mode, reducing transmission power or even turning off power transmission.

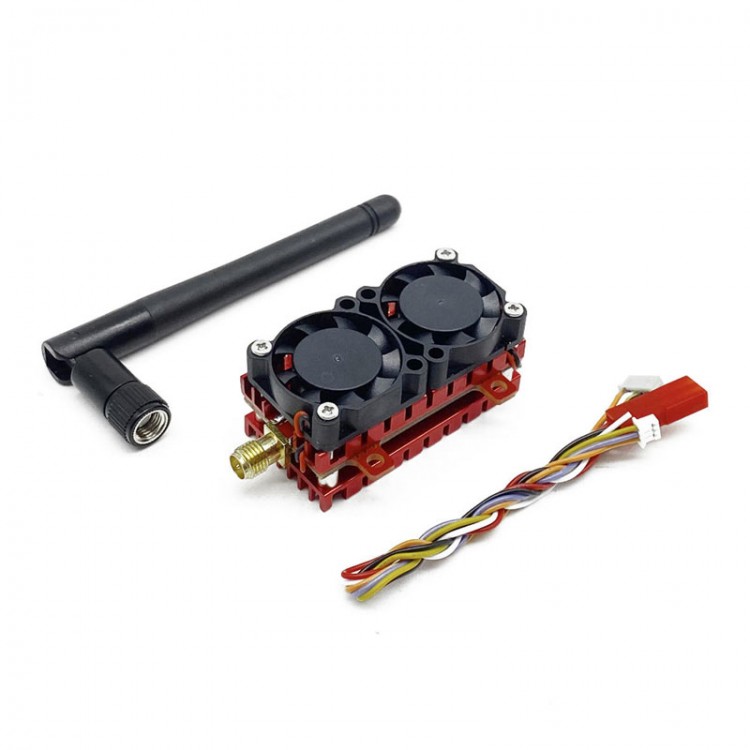

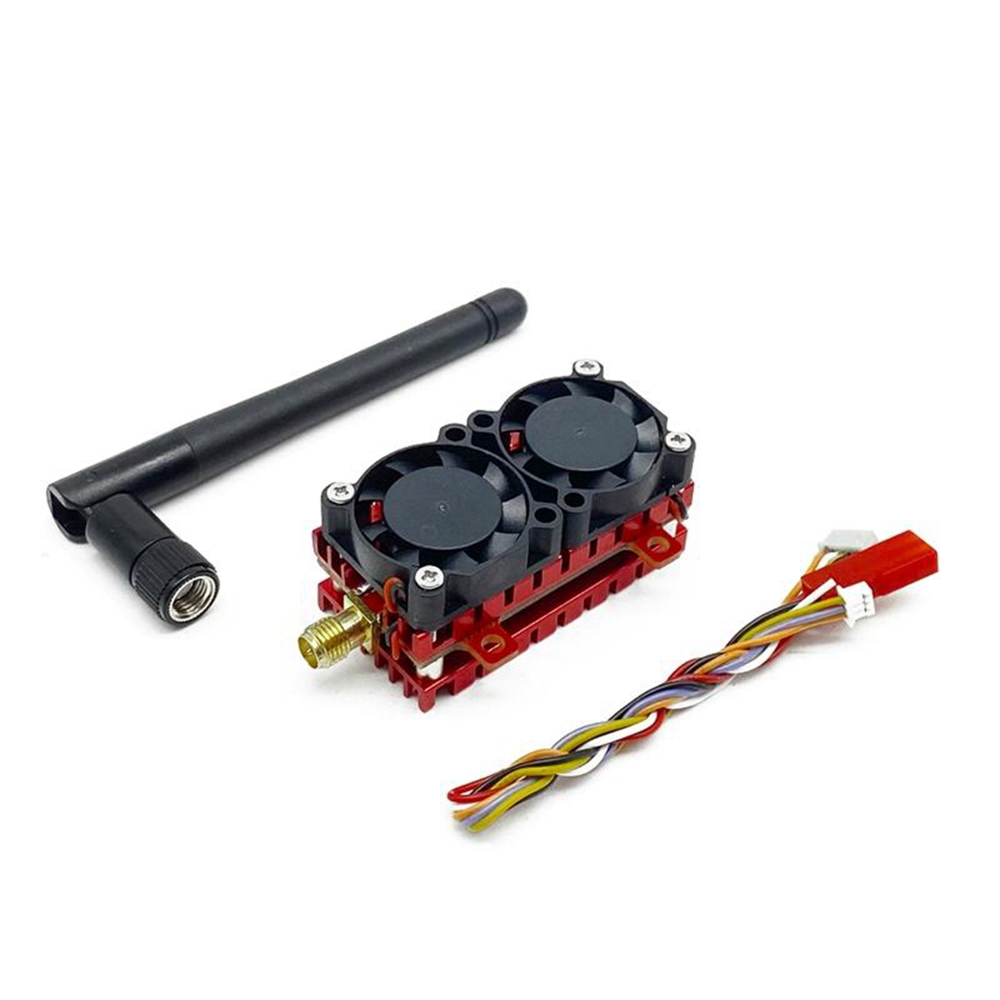

Package Included:

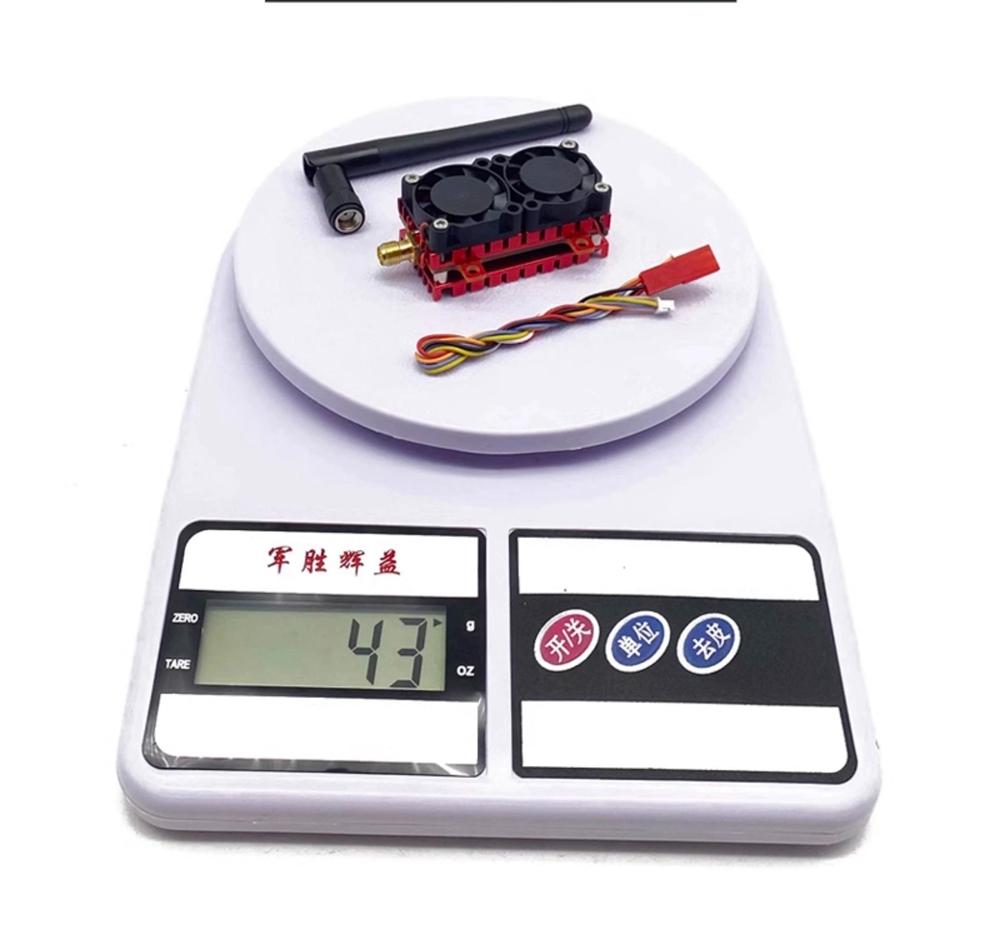

- 1 x VTX Module
- 1 x 2dBi Antenna
- 1 x Pin Cable
