5W SMA - KK Type 0-90dB 0-3GHz RF Adjustable Attenuator High Quality Digital Step RF Attenuator
Description:
- The stepper coaxial attenuator can adjust the signal level of the circuit in 1dB steps without interrupting the circuit, and can also be used as an internal attenuator for instrument equipment to adjust the power level in the testing system. It has the characteristics of small size, high accuracy, stability, reliability and so on.

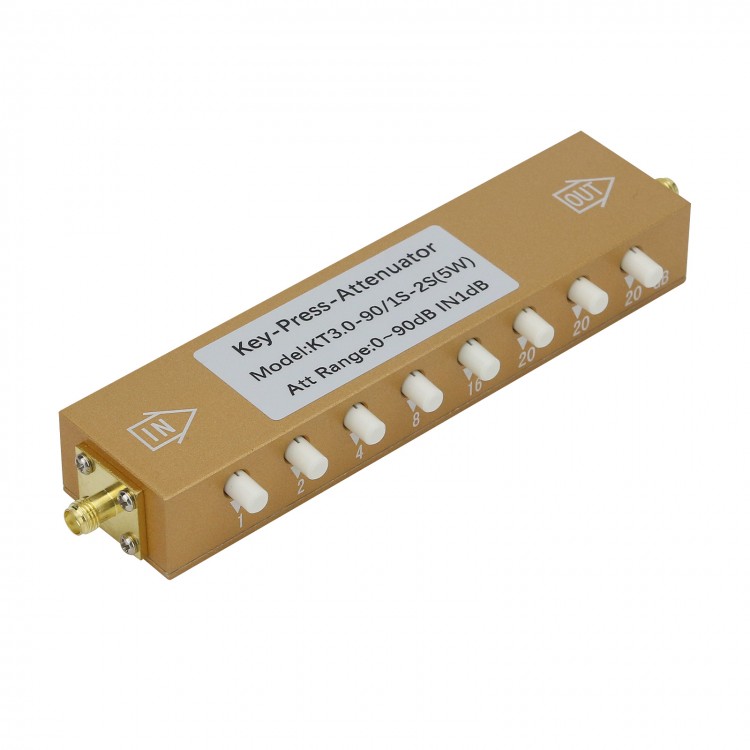

KT3.0-90/1S-2S Specification:
- Working frequency: DC-3.0GHz
- Attenuation adjustment range: 0 - 90dB step
- Attenuation step: 1, 2, 4, 8, 16, 20, 20, 20 (dB)
- SWR: ≤1.3
- Insertion loss: ≤3.5dB
- Rated power: 5W
- Connector type: SMA-K-K
- Single-key attenuation precision: ±0.2dB Max (0 ~ 8dB)
- Multiple-key attenuation precision: ±3.5dB Max (10 ~ 20dB)
- Temperature range: -10℃ ~ +50℃ (operating); - 40℃ ~+70℃ (without operating)
- Dimension: 149 x 35.5 x 20mm
- Weight: 156.5g
KT3.0-90/1N-2N Specification:
- Working frequency: DC-3.0GHz
- Attenuation adjustment range: 0 - 90dB step
- Attenuation step: 1, 2, 4, 8, 16, 20, 20, 20 (dB)
- SWR: ≤1.3
- Insertion loss: ≤3.5dB
- Rated power: 5W
- Connector type: N-K-K
- Single-key attenuation precision: ±0.2dB Max (0 ~ 8dB)
- Multiple-key attenuation precision: ±3.5dB Max (10 ~ 20dB)
- Temperature range: -10℃ ~ +50℃ (operating); - 40℃ ~+70℃ (without operating)
- Dimension: 166 x 35.5 x 20mm
- Weight: 184g
Package Included:
- 1 x 0 - 90dB Adjustable Attenuator
