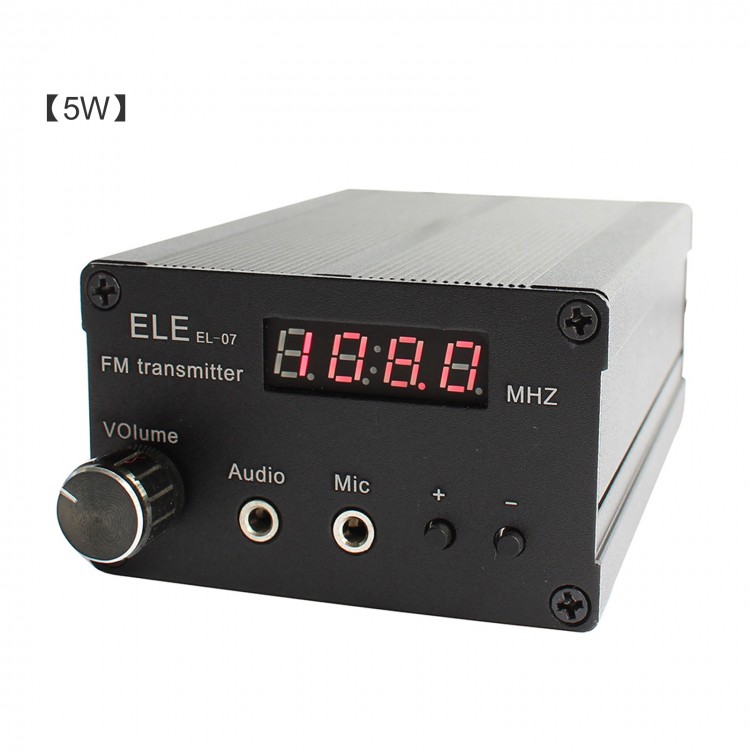

5W Stereo FM Transmitter Wireless Audio Broadcast Radio Transmitter Power Adjustable
Specification:
Frequency range: 87.5-108MHz (70-90MHz, 100-120MHz available)
Frequency step: 0.1MHz
Frequency stability: ±10ppm (-10℃~+50℃)
Display: LED
Modulation: FM
Antenna impedance: 50Ω
Antenna interface: BNC/Q9
Output power: 0.2W, 1W, 3W, 5W (50mW, 100mW, 200mW, 0.5W)
Spurious and harmonics: <-30dB
Frequency deviation: ≤±75KHz
Modulation sensitivity: 0.75V
Audio source: CD, MP3, PC...
Microphone level: 1-2mV
Frequency response: 150~15000Hz
Distortion: ≤2% (F=75KHz, f=1KHz)
S/N: ≥55dB
Power voltage: DC (9V~13.8V)
Working current: <1.2A
Working temperature: -10℃~+60℃
Net weight: about 500g
Size: 125*77*45mm (L*W*H)
Features:
-Adopt RHOM BH1415FIC for stereo encoding, modulation and other functions. The control and display drive are completed by an AVR high-speed CPU.
-Small size, easy to carry, with volume adjustment, four gears power adjustable, suitable for various occasions.
-Suitable for campus broadcasting, hotel broadcasting, factory broadcasting, supermarket broadcasting, etc.
Package List:
1 x 5W FM Transmitter
