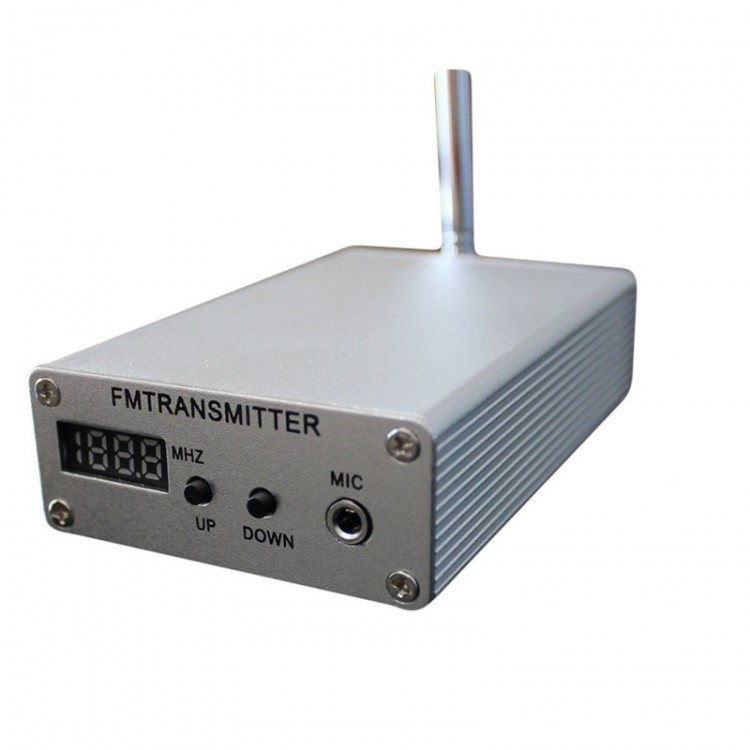

5W Stereo PLL Digital FM Transmitter Radio Broadcast Station 87MHz to 109MHz Silver

5W Stereo PLL Digital FM Transmitter Radio Broadcast Station 87MHz to 109MHz Silver

Features:
- This product is the factory,  schools, individuals, car FM radio, the ideal district FM radio broadcasting equipment.
- The machines use of high-quality aluminum alloy, increasing internal air-cooled heat,
- Japan ROHM motherboard for the next-generation integrated NC FM stereo radio chip PLL BH1415F, built-in PLL frequency PLL, audio pre-emphasis, limiter . Make sound more sweet.
- New microphone and audio input of the amplifier,
- Overall shielding good, compact structure, small size, appearance generous.

Parameters:
- Power supply voltage: DC-15V (12V recommended)
- Current work: <1.5A
- Frequency range: 87 ~ 109Mhz
- Frequency Step value: 0.1MHz
- Frequency stabilization way: PLL
- Frequency stability: ± 10 ppm (-10 ° C +60 ° C )
- Frequency Modulation: ≤ ± 75kHz (100%)
- Work methods: continuous work
- Clutter and Harmonic: less than-60dB
- SNR: ≥ 60dB
- Stereo separation:-50dB
- Audio frequency response: 20 to 15000Hz
- Audio distortion: <2%
- Modulation: 15%
- Input Level:-15dBV
- RF output impedance: 50 Ohm
- Unit dimensions: length of 105mm, 65mm width, and height of 27mm
- ATTENTION: Never power on the transmitter for a long time when an antenna is not connected.
- Not include power supply or antenna
- Color: Silver

Package Contents (no power supply or antenna):
- 1 x FM Transmitter
