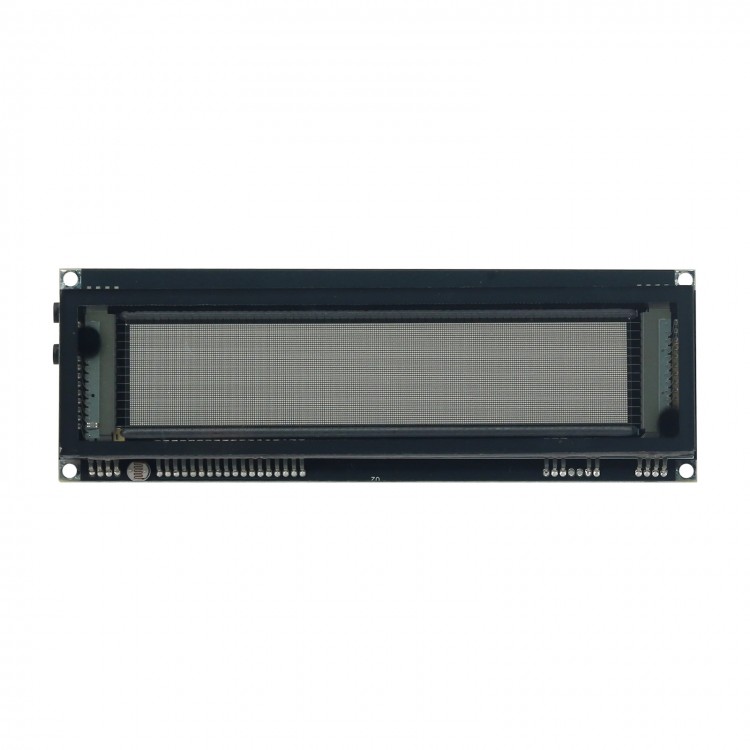

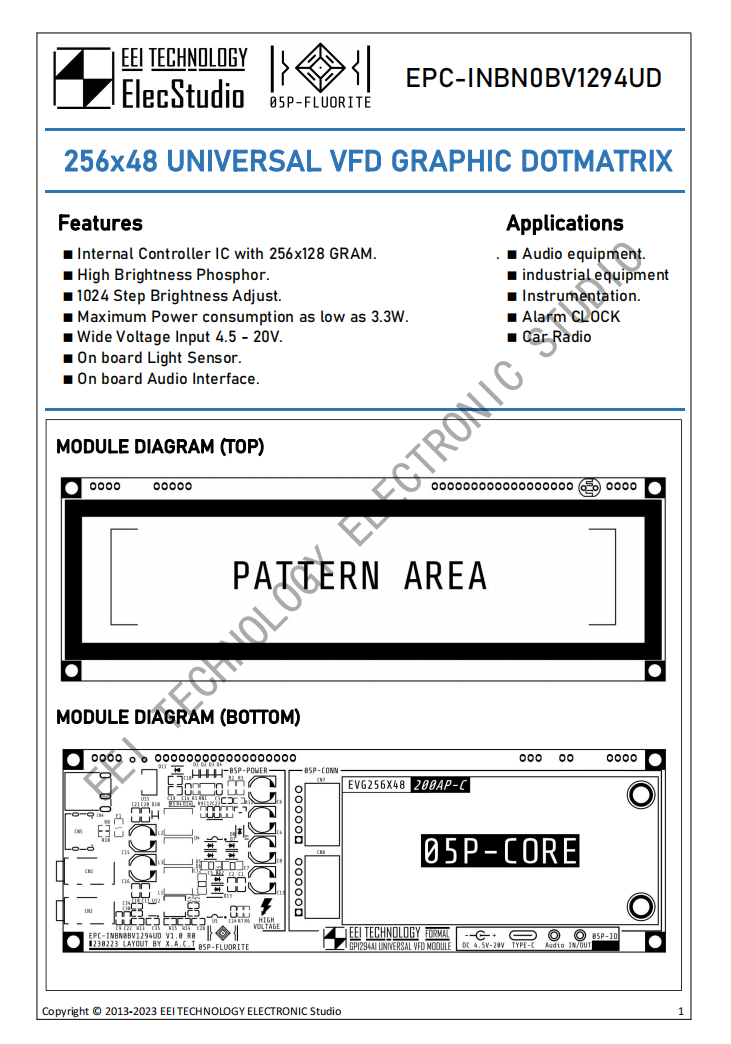

6.1" 256x48 VFD Display Module VFD Graphic Dot Matrix Display Supports Ar-duino STM32 Development
Features:

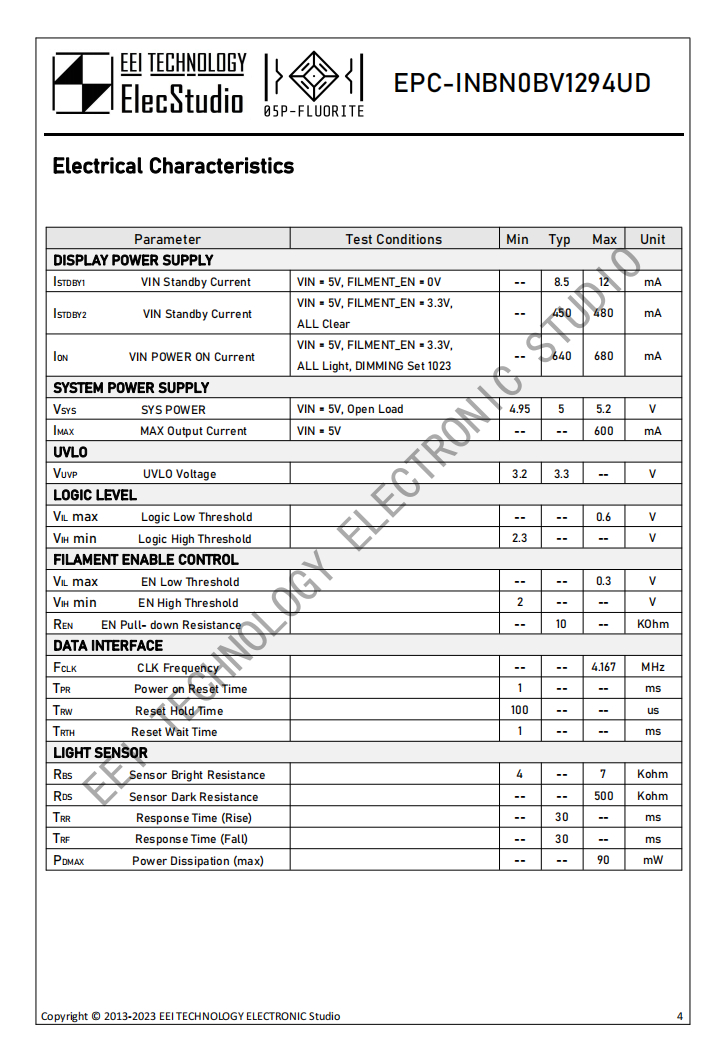

* It has a wide voltage input range of 4.5-20V
* Adaptive 3.3V/5V level (compatible with mainstream microcontrollers such as 51 and STM32)
* Improved power supply and filament drive scheme enable higher efficiency, without acoustic noise
* The VFD screen has a built-in timing controller, which effectively avoids screen burn-in caused by improper use
* 1024 levels of brightness adjustable
* Maximum power consumption is about 3W (full illumination, 1024 brightness and 5V input)

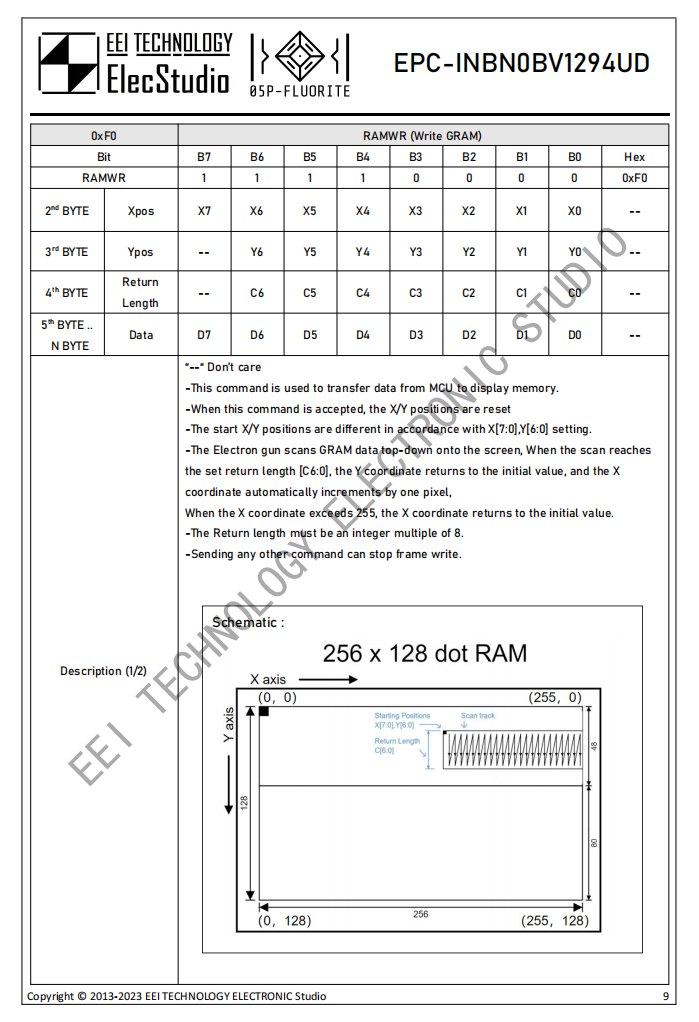

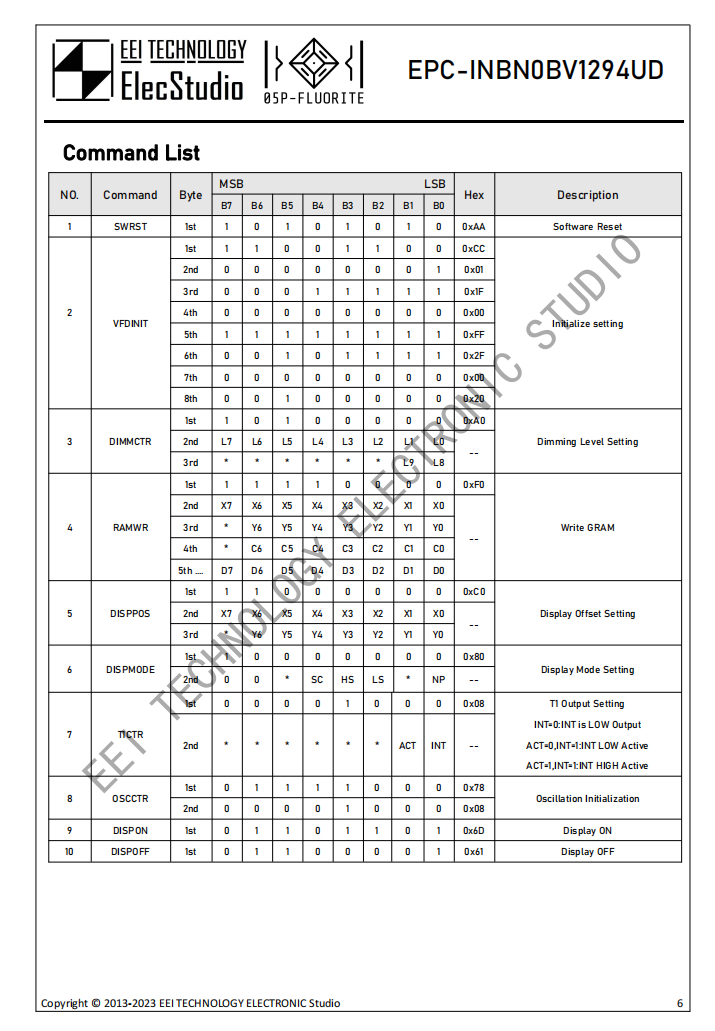

* Built-in dynamic scanning logic and RAM: You only need to send instructions to the screen to complete the display
* The screen is refreshed with hardware for lag-free display

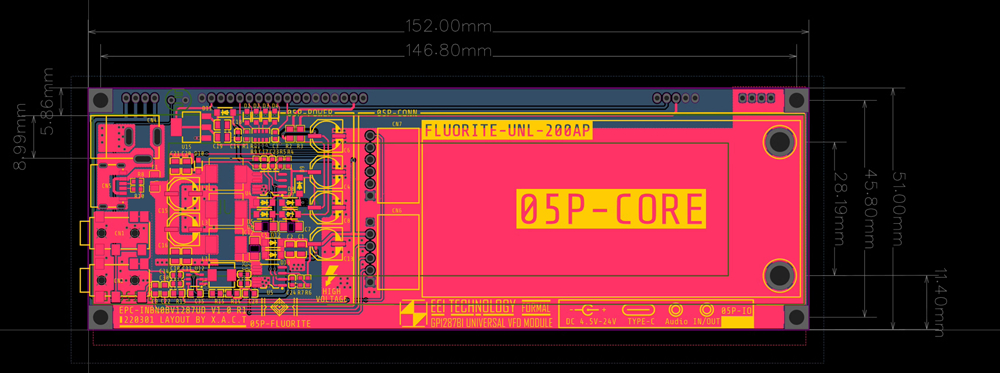

* The main control board position is reserved on the PCB to make effective use of free space
* Reserved audio input interface for audio applications
* On-board photoresistor with single-chip microcomputer to achieve automatic brightness
* TYPE-C and DCO05 power interfaces suitable for all kinds of power supplies
* This product is a developer kit and is not a finished product with a single function
* A certain programming foundation is required to develop this product
Attention:
* Please use our U8G2. Our store does not provide technical support if you use the U8G2 official library.
Statement on Technical Support:
We only provide technical support to developers. We do not provide training.
1. Users are required to have a certain understanding of embedded hardware.
2. Users have a basic knowledge of C/C++ embedded development.
3. Users are able to read and understand the contents of the product specifications.
Technical Support Details:
We
provide certain technical guidance to enable the screen to light up
normally (users need to meet the above conditions). Other basic related
issues, such as the syntax and usage of programming languages, and the
use of library functions, are not covered by technical support. Users
need to consult the relevant documentation on their own.
Package Included:
* 1 x VFD Display Module
Packaging Details:
* Weight: 0.3kg
