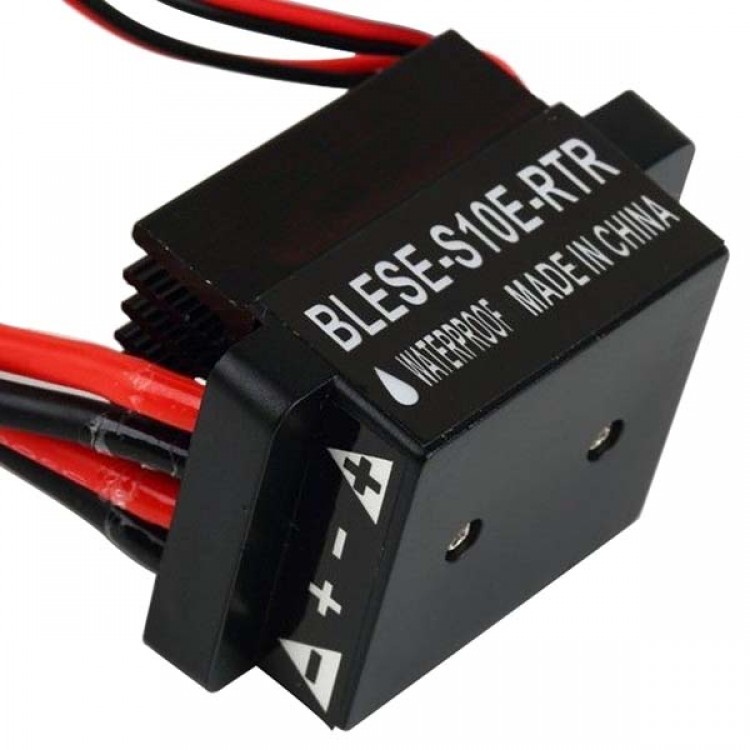

6-12V 320A RC Ship & Boat R/C Hobby Brushed Motor Speed Controller W/2A BEc ESC
Description:
- When connected with motor, it is capable of supplying up to 320 Amps (forward) or 160Amps (backward) of continuous motor current. Its integrated Battery Eliminator Circuit (BEC) powers the receiver from the motor battery, with automatic cutoff of the motor power to preserve receiver power as the battery becomes depleted. It is small and powerful, which can be used for different type of ship or car.
Specifications
- Dimensions: 43mm x 29mm x 27mm
- Working Voltage: 6 - 12V
- BEC Current: 5V/2A
- Internal Resistance: 0.0076m ohm
- Continuous Output Current: 3200A (Forward), 160A (Backward)
- Cable Type: 16 AWG (Battery & Motor)
- Cable Length: 140mm (Battery & Motor), 450mm (Receiver)
- Input Battery Types: NiCd/ Nimh/ Li-po battery
- Recommend Model: Ship / Car
Features
- Reversion Function
- Low-Voltage, Cut Electricity Protection Function
