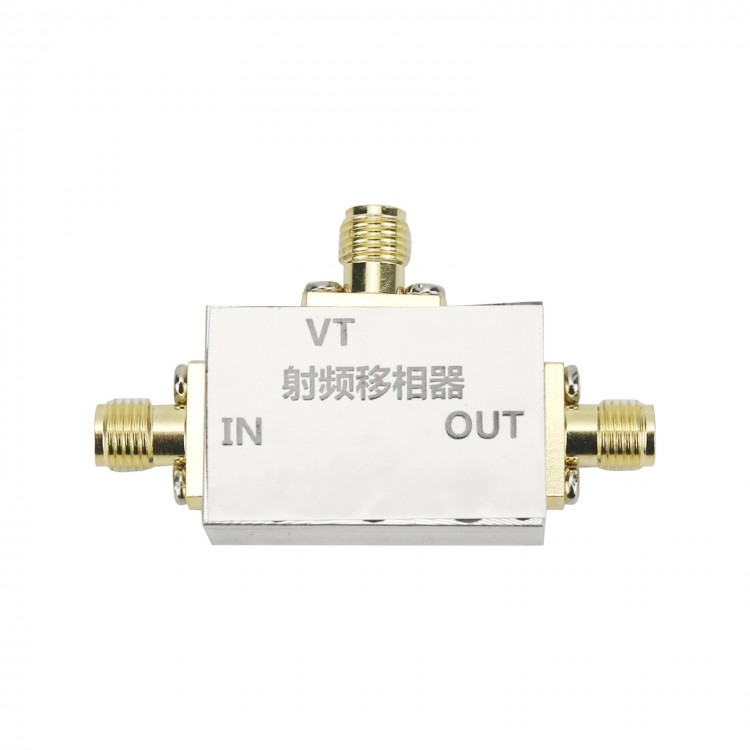

6-15GHz Voltage Controlled Phase Shifter X-Band Ku-Band RF Phase Shifter Phase Shift Module w/ Shell
Description:
The phase shifter is a device that controls the phase change of the signal, and is widely used in radar systems, microwave communication systems, and measurement systems. This module adopts analog phase shifting technology, covering 6-15GHz broadband range. Only need to connect an external adjustable voltage, you can change the phase of the output signal. This model is equipped with a CNC structure shell and has excellent electromagnetic shielding performance. With mounting holes, it can be used with equipment.
Features:
* Working frequency: 6-15GHz
* ≥360°phase shift (full frequency band)
* 0-5V external voltage control
Module Parameters:
- Model: QM-PHA0615T
- Module function: voltage-controlled broadband analog phase shifter
- Module working frequency: 6-15GHz
- Phase shift range: 6-10G: ≥600°; 10-15G: ≥360°
- Input and output standing wave: in-band <1.5
- Band interpolation loss: 8dB (typical value)
- Maximum input power of the module: +25dBm
- VT ESC range: 0-5V
- Control interface: SMA (please contact customer service if you need a through-core capacitor control port)

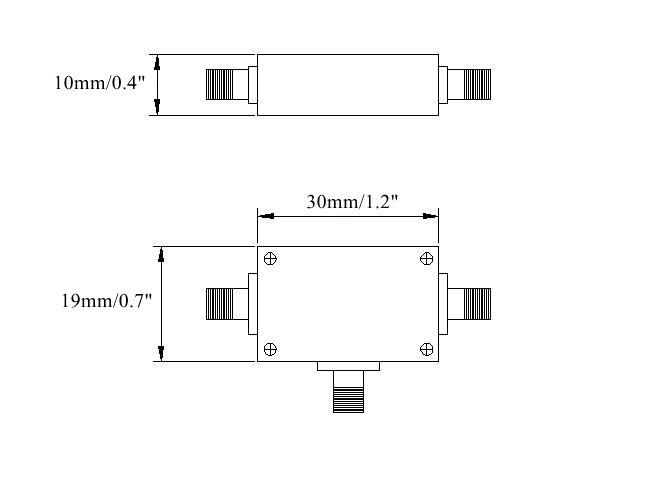

- Module size: 30 x 19mm/1.2 x 0.7" (excluding the size of connectors)
- With mounting holes
Package Included:
- 1 x RF Phase Shifter
Note:
- This module needs an external control voltage. After power-on, change the external voltage (0-5V) to realize the phase shift change, and the operation is simple and convenient.
