Features:
- It also has dual USB/Ethernet (Ethernet) interfaces.
- 100M Ethernet interface, built-in network transformer isolation, supports long-distance wired connection. With wireless router, it can realize the wireless connection between PC (notebook computer) and motion control board.
- Support 6-axis linkage, 500KHz output at the same time, connected to servo/stepping. Any one axis can be configured as a pulse spindle.
- 2 real-time electronic handwheel (MPG) input ports, which can connect 2 electronic handwheels at the same time. When the MACH3 electronic handwheel is set in Multi-Step mode, it has the same real-time performance as the CNC machining center, and runs smoothly. There is no delay in the control board, and the performance of the mechanical system is fully utilized.
- With real-time jog, the control panel has no delay, the motor responds quickly and flexibly, and the experience is zero delay.
- 18 general digital input points, corresponding to 1 LED indicator, self-defining configuration function in MACH3.
- 8 general-purpose digital output points, configurable as: spindle start/stop/coolant/custom M code VBasic programming control
- 1 PWM output point for analog spindle speed control: pulse width speed control / 0-10V inverter speed control.
- 2 analog inputs, used to adjust the processing speed / jog speed / spindle speed.
- 1 status indicator, which can prompt USB/Ethernet (Ethernet) connection, and various statuses of the motor are clear at a glance.
- It adopts 6 dual-channel 10Mhz high-speed optocouplers and 28 general optocouplers, totaling 34 optocouplers to isolate all inputs/outputs. Onboard an isolated power supply, high-cost design provides complete anti-interference performance and complete safety protection.
- 168M speed, without PC intervention, the signal is processed independently by the motion control card, to ensure that you have real-time and reliability.
- Support all versions of Mach3. Support for all versions of Windows XP to Windows10 (32-bit/64-bit), and no driver is required, all versions for Windows are plug and play.
- The chip firmware supports upgrades, and users can continuously get the latest function support.
- Provide a complete installation manual with clear documentation, illustrations and detailed descriptions.

Environmentally friendly copper pluggable terminals

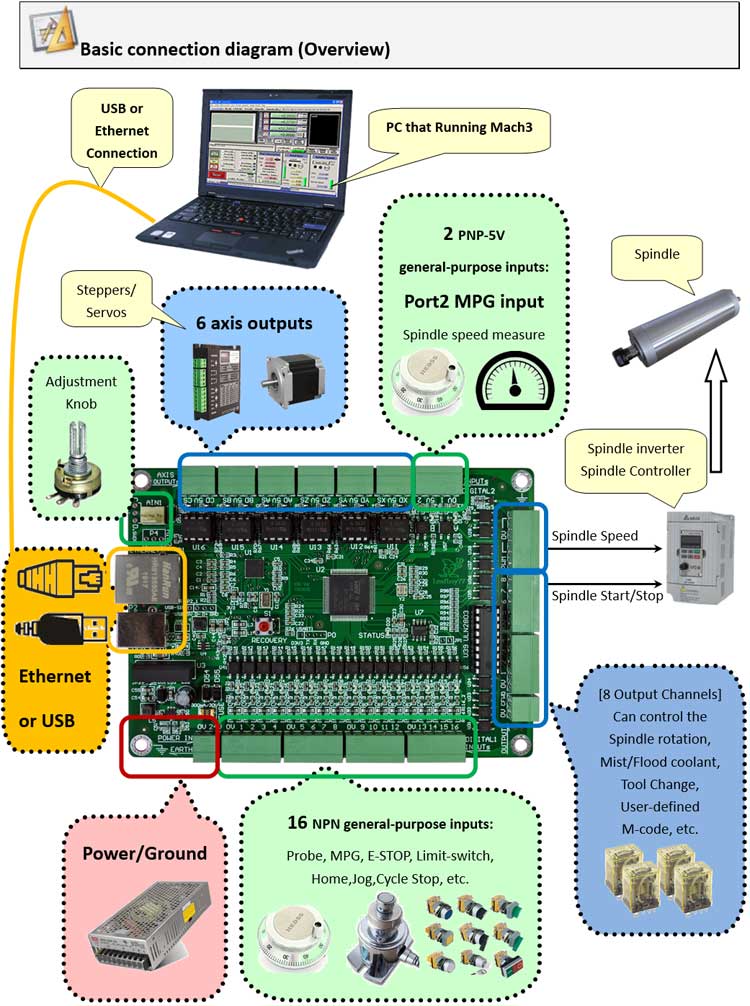

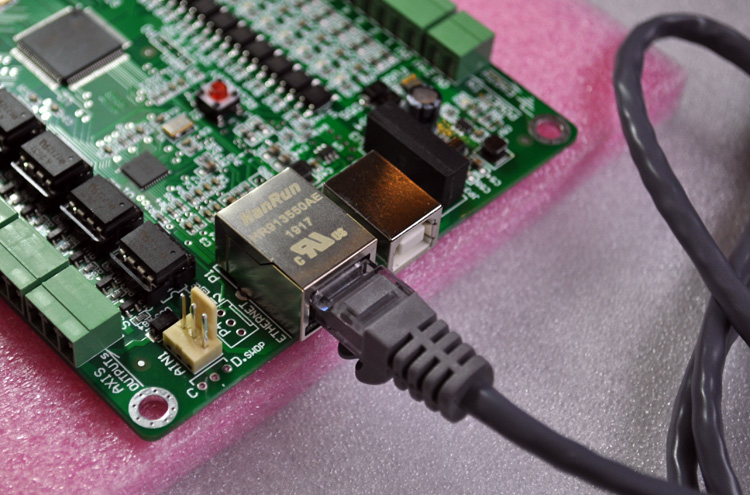

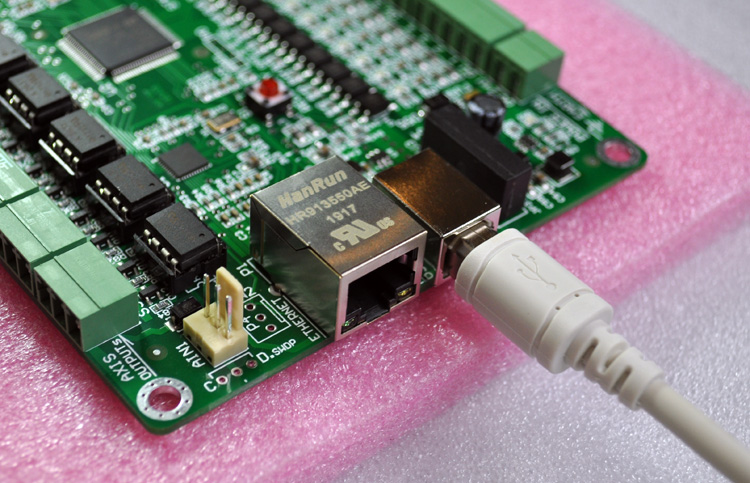

100M Ethernet interface / USB interface / isolated power supply


Network cable connection


USB cable connection

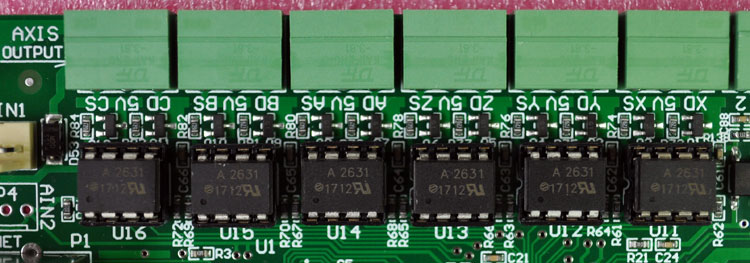

6-axis output signal (direction signal + pulse signal): 10MHz high-speed optocoupler isolation x12 channels


Optocoupler isolation PWM spindle speed control signal output x1 / Optocoupler isolation general output x8


Power input: self-recovery fuse + anti-reverse diode + TVS anti-surge diode

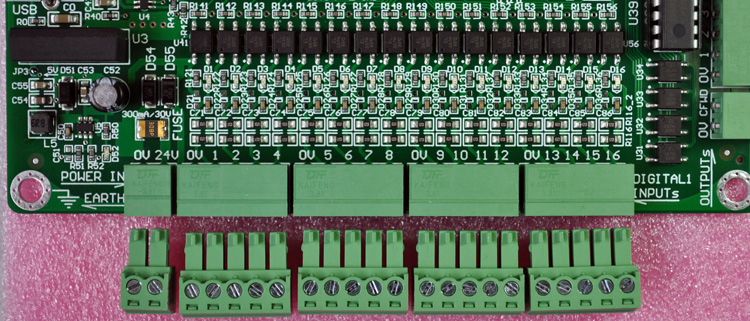

Optocoupler isolated NPN input x16


External magnification knob


Connect Controller Board To Laptop PC:

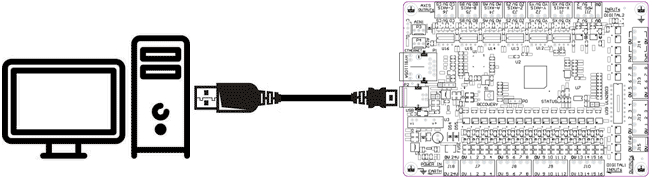

Connection Via USB Cable

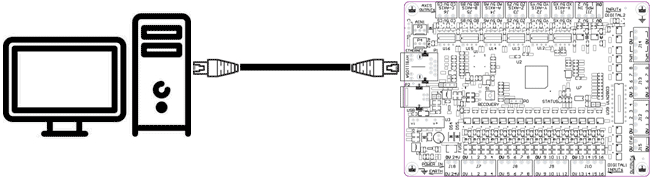

Direction Connection Via Ethernet Cable

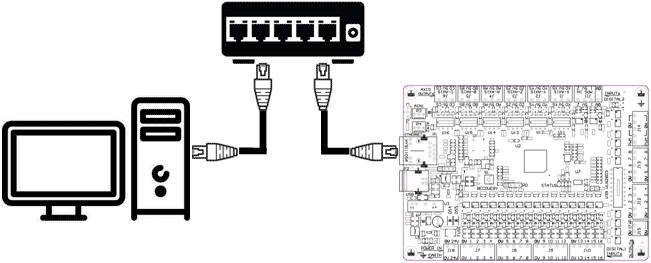

Network cable passes through a router

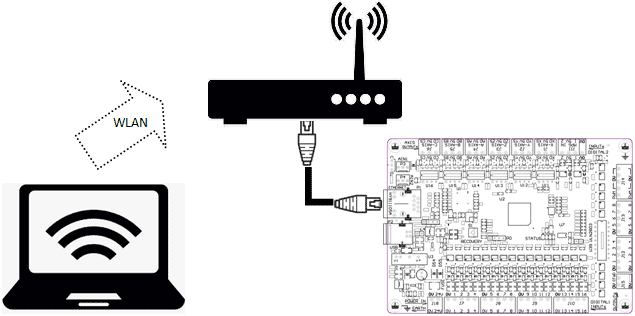

Wireless network (WLAN)


Download Manual (EDG381) 1.0.7 version (ZIP/17M).
http://leafboy77.com/files/usb_eth_edg381/Mach3_USB_Ethernet_Motion_Board(EDG381)Installation_Manual(english).zip

Download Plugin (eMotionMach3.ZIP/0.3M) 1.2.1.0 version.
http://leafboy77.com/files/usb_eth_edg381/eMotionMach3.zip

Download Latest Mach3:
http://www.machsupport.com/software/mach3/

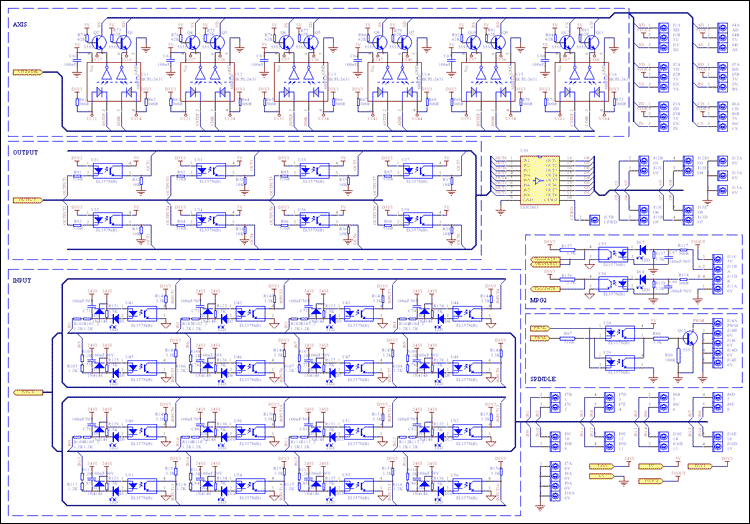

Schematic Diagram:
USB main control chip + external magnification knob x2


10MHz high-speed optocoupler isolation x12 channels
Optocoupler isolated NPN input x16 + Optocoupler isolated PNP input x2

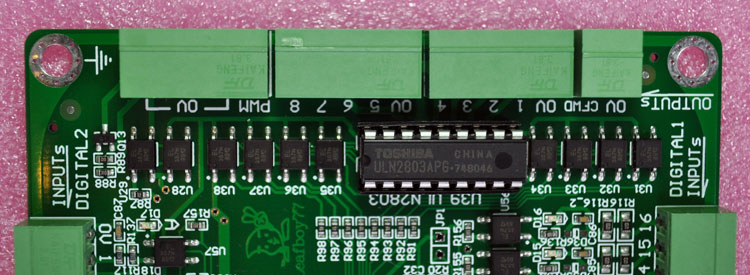

Optocoupler isolation general output x8 + Optocoupler isolation PWM spindle speed control signal output x1


Ethernet interface chip


Power + isolated power


Package Included:

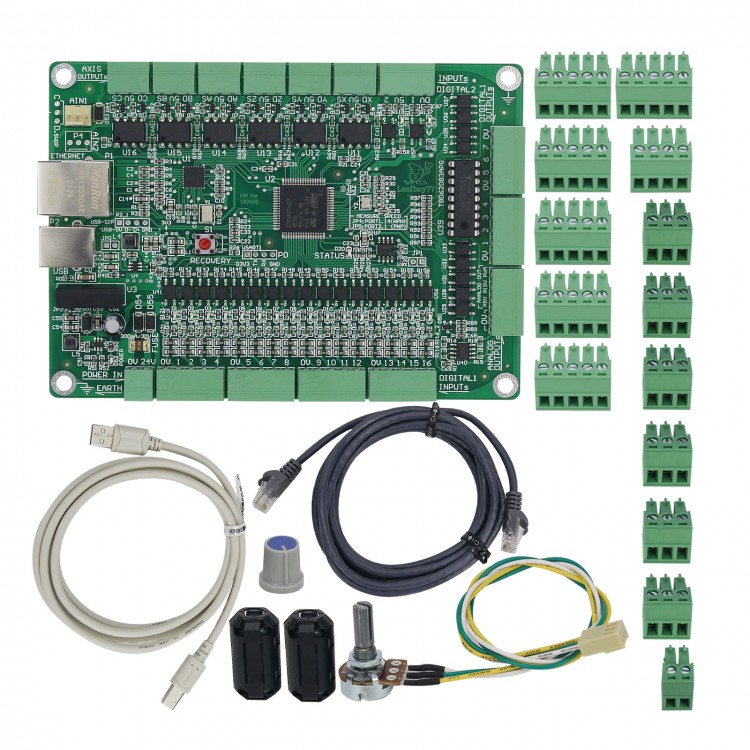

- 1 x Set of CNC Controller Board

Note:
- Other items are not included, for demonstration purposes only. Thank you for your understanding!
