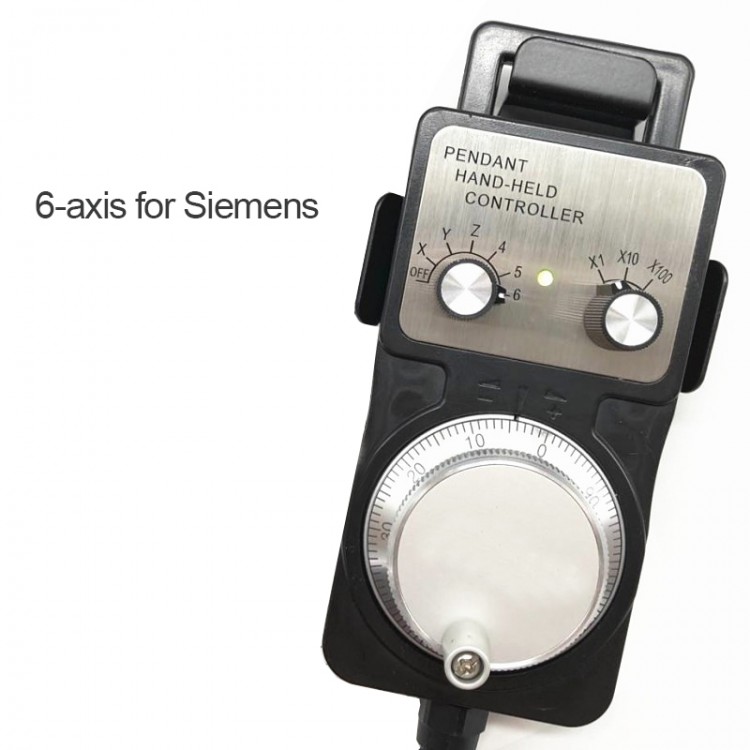

6 Axis MGP CNC Handwheel Manual Pulse Generator For Siemens CNC Machine Tool Engraving Machines

6 Axis MGP CNC Handwheel Manual Pulse Generator For Siemens CNC Machine Tool Engraving Machines

Features:
- Ergonomic design. Users can hold it with one hand
- Anti-slip pattern on the side
- Waterproof connector, extended cable and protective cover, waterproof and easy to remove
- Environmentally friendly plastic shell, wear-resistant and drop-resistant
- Handwheel adopts spiral wire, with shielded wire with oil resistance, water resistance, acid and alkali resistance, strong anti-interference ability, enables long-distance transmission
- Stainless steel panel, the font is clear and wear-resistant, and does not fade
- Handwheel: Metal dial, made of aviation aluminum, wear-resistant and non-fading, integrally formed, good hand feeling, stable rotation
- Torsion-resistant connector: Waterproof, detachable technology and special design of seals have a large clamping range of cables, strong tensile strength, and waterproof and dustproof.
- Optional standard DB connectors: Flat head can be provided, welded well. If you need a connector, please contact customer service when placing an order
- Optional standard aviation plugs and welding services can be provided. If needed, contact customer service when placing an order

Specifications:
- Product model: MBL 1470
- Dimensions: 158 x 70 x 30 mm
- Resolution (CPR): 25, 100
- Working Voltage: 5-24V
- Axis: 6-Axis
- Output Circuit: Voltage output, open collector, long line drive, push-pull output
- Application industry: CNC machine tools, engraving machines, machining centers, PLC

Package Included:
- 1 x MPG Handwheel
