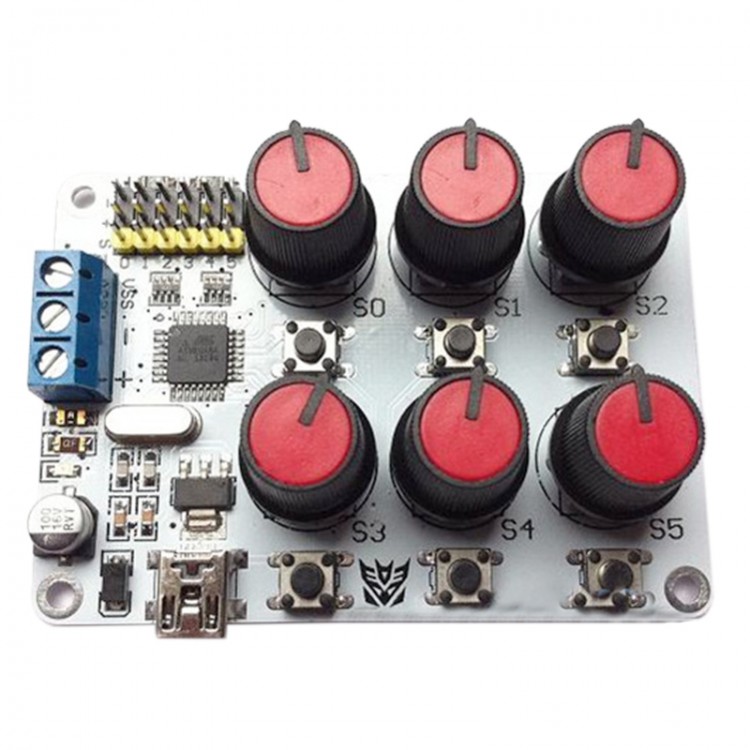

6 Channel Rotary Knob Control Board with Overloading Protection Easy Operation
Description:
- Using imported high precision potentiometer, can control 6PCS servos one by one, realizing simultineous 1 to 1 control
- No.0, 1 and 2 control board all have overcurrent protection function
- Every rotary knob of control board has one press button. Press it for one time, servo becomes center state, rotary knob cannot rotate the servo. Then press one time again, the center state will be released
- Install hole distance: 70*47mm
- Convenient cable connection
A. Mainboard chip VVS can be USB powered supplied, supply power individually for servo, normally it needs external battery (voltage is determined by servo)
B. No need USB cable to control this standard servo,connect VSS and +, keep voltage between 7V---8.2V . Normally we use 7.4V lipo battery for power supply. If we use USB cable, no need to connect VSS, battery can be directly connect with + and =
C. If controlling 9G servo, + voltage is at 5V-6V, VSS voltage needs 7-9V. Two power supply is common ground
