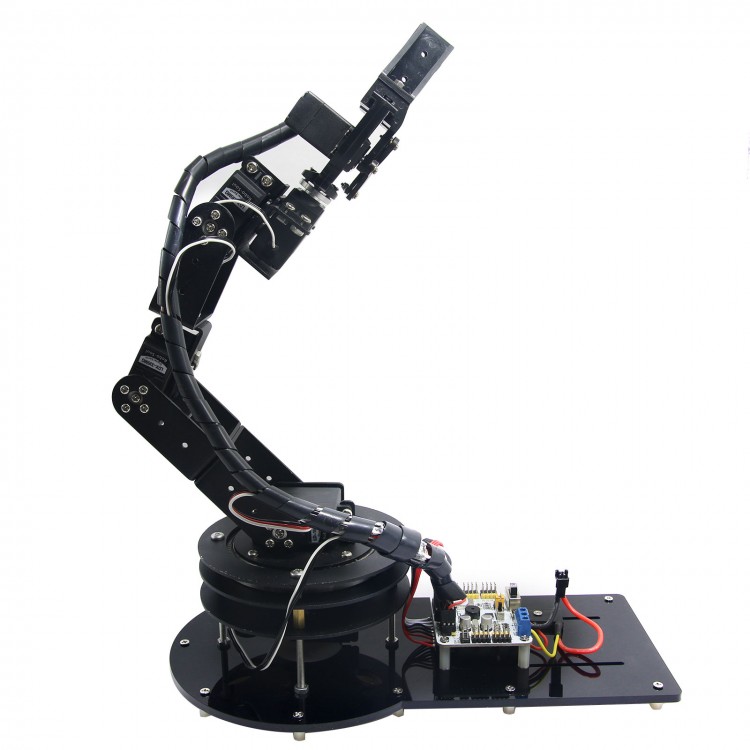

6 DOF Arduino Control Kit Arm Clamp Claw Servos Swivel Rotating Machinery Mechanical Robot Structure Full Set Mechanical Arm
Description:
- The code has been written in the control board
- Super clamp
-Large bearing rotating base
- Large capacity battery (7.4V 1500mah)
-This is the spare parts. It needs to be assembled yourself.
- Apply LD-1501MG servo and LDX-335MG Servo with strong torque, high temperature resistance, heat resistance and long life.
Control system:
- The code has been written in the control board.
- Online debugging. According to the upper computer software, the graphical programming can be done.
- Offline motion. When the upper computer software is done, clicjk the "Download" to the control board. When select the corresponding action mode, the arm can bre off the computer to move itself
- P2P Handle remote control.
- Reserved serial port to communication interface and can be TTL level seral communication with other SCM.
Features:
- Rotation angle of 180 degrees
- Radius of gyration: 355mm
- Height: 448cm (holder closed)
- Material: Aluminium alloy
- Clamp Max open is 55mm
- Holder of the widest distance: 98mm
Package includes:
- 1 x Aluminium Robot Clamp Claw
- 5 x LD-1501MG
- 1 x LDX-335MG
- 3 x Servo extension line
