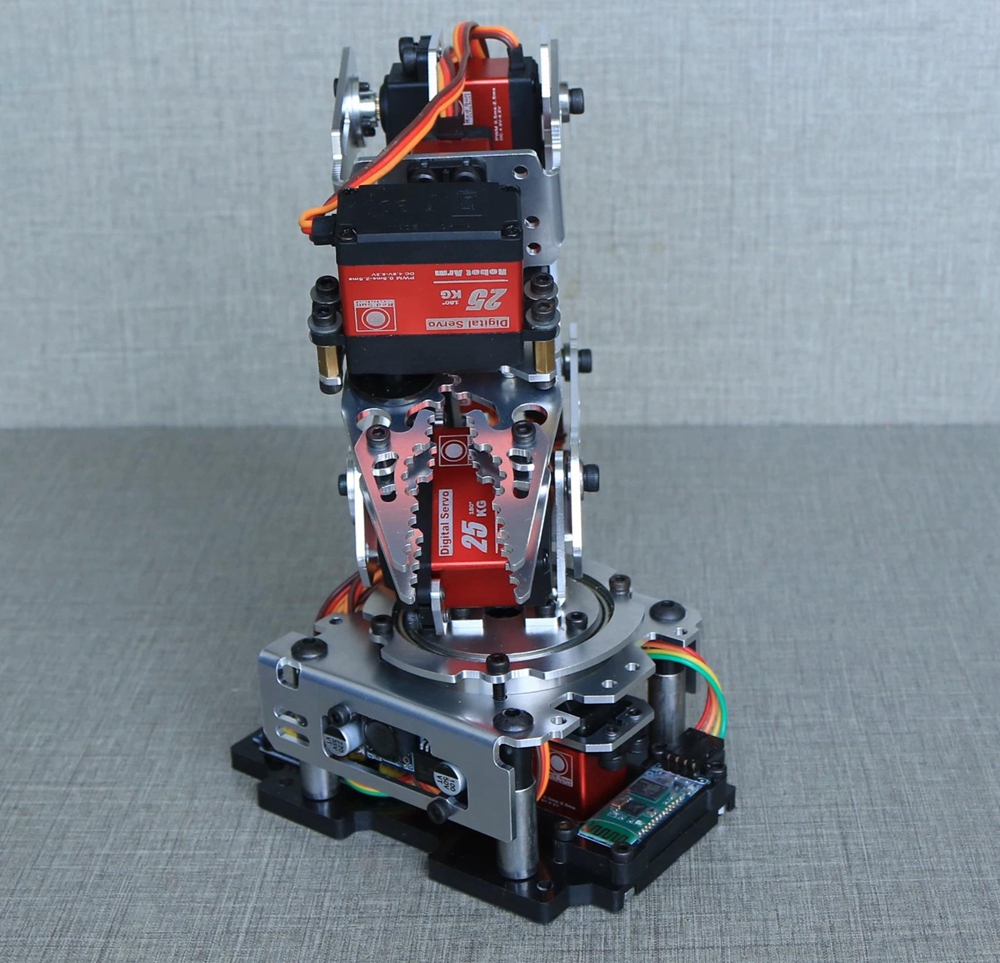

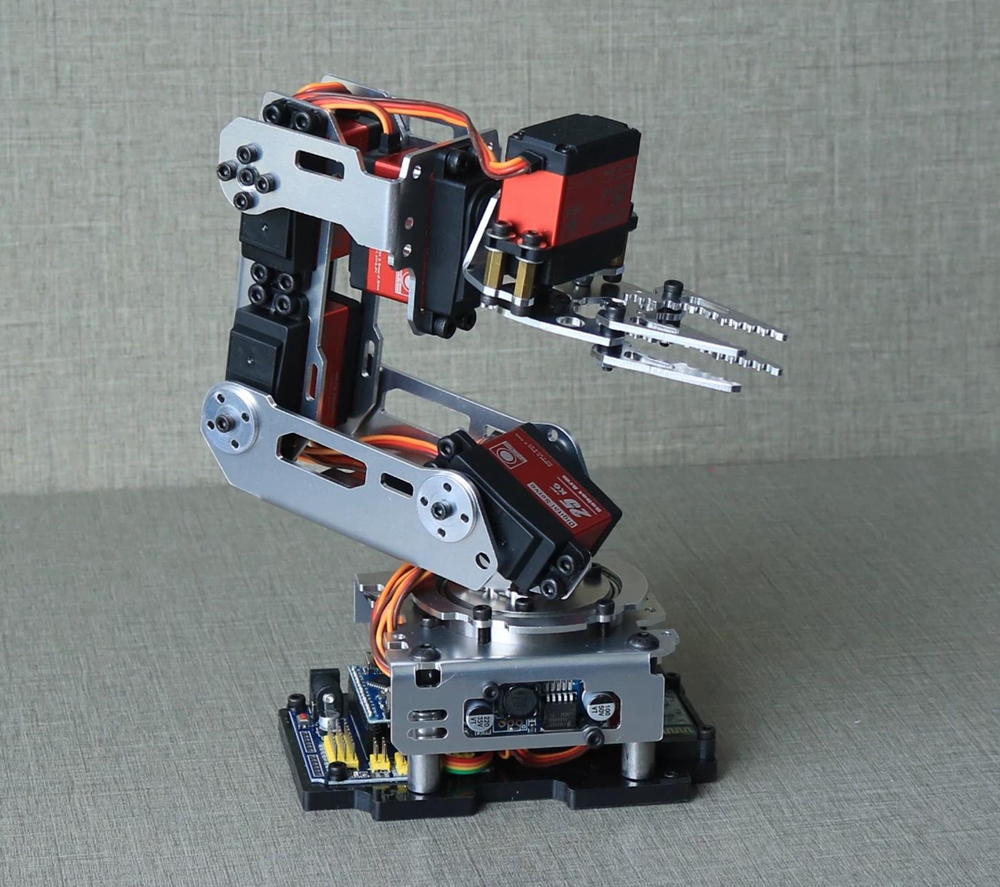

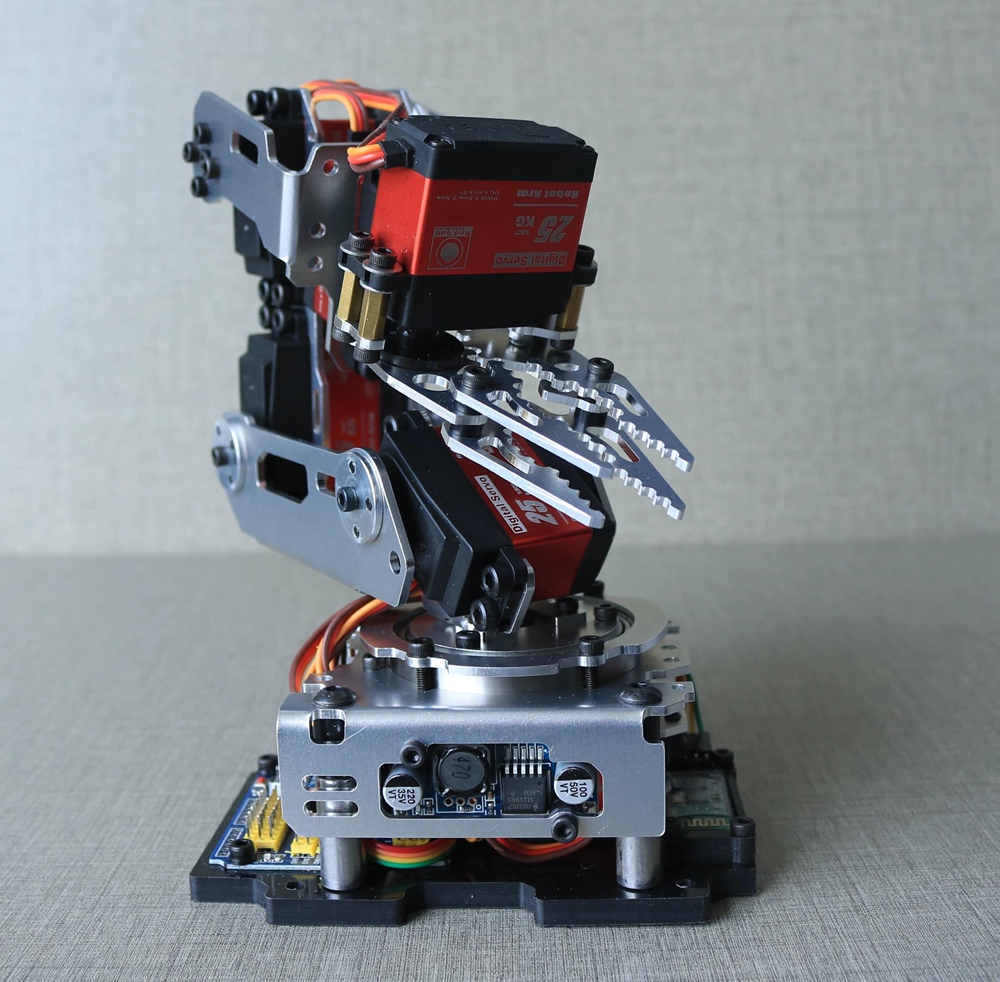

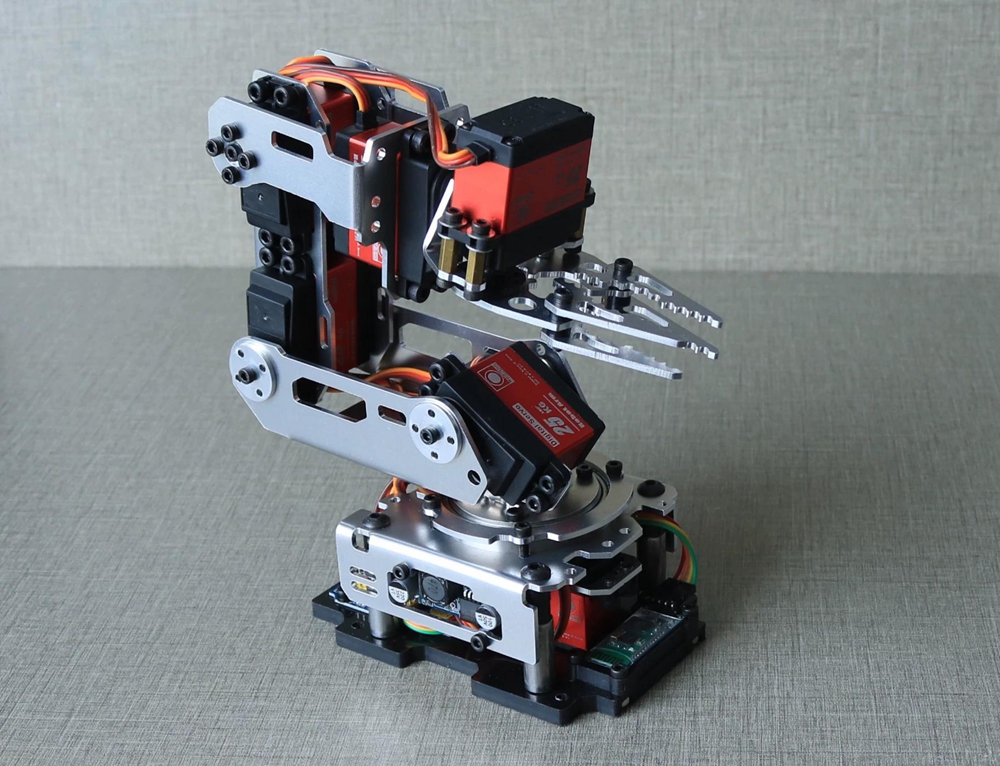

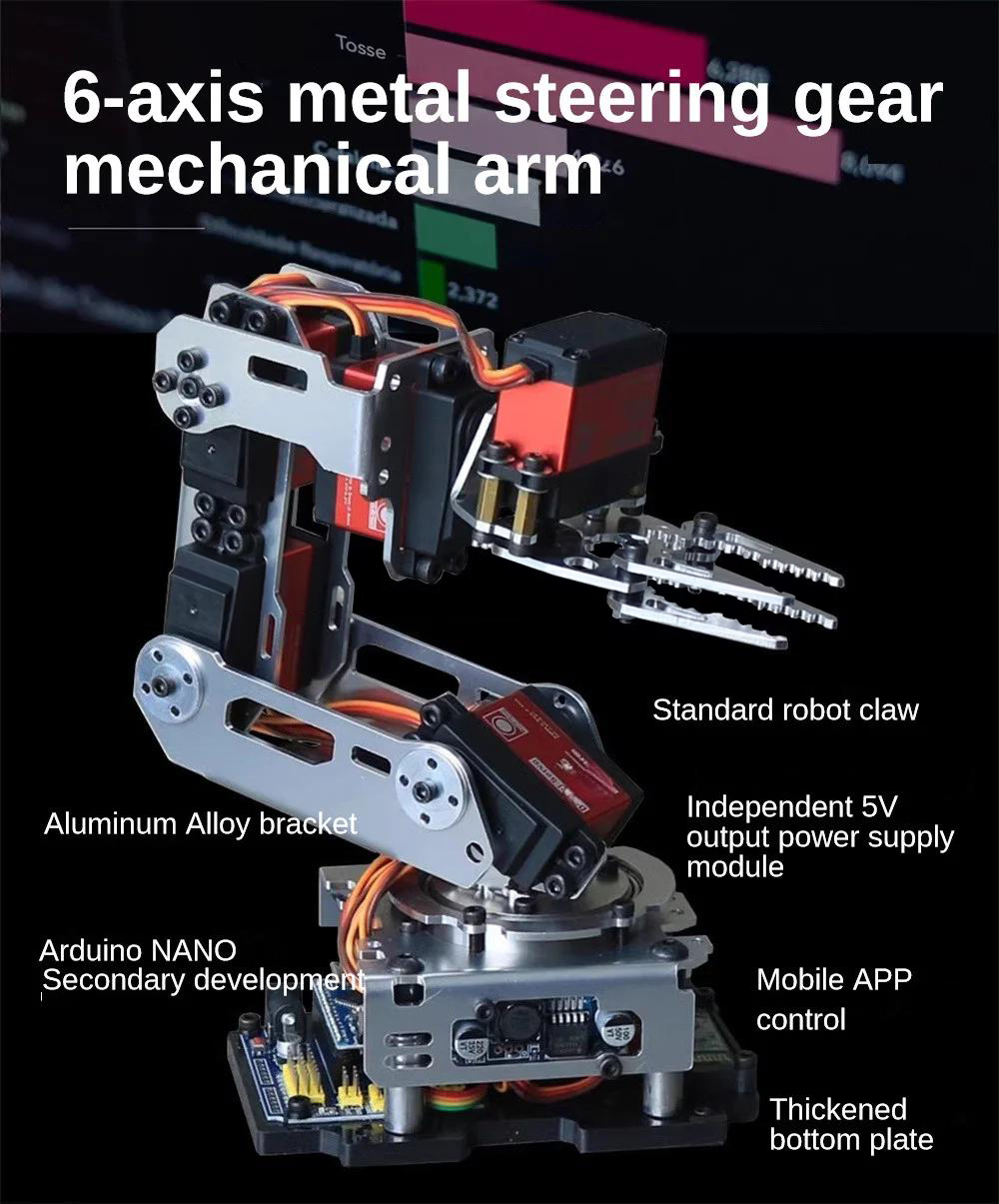

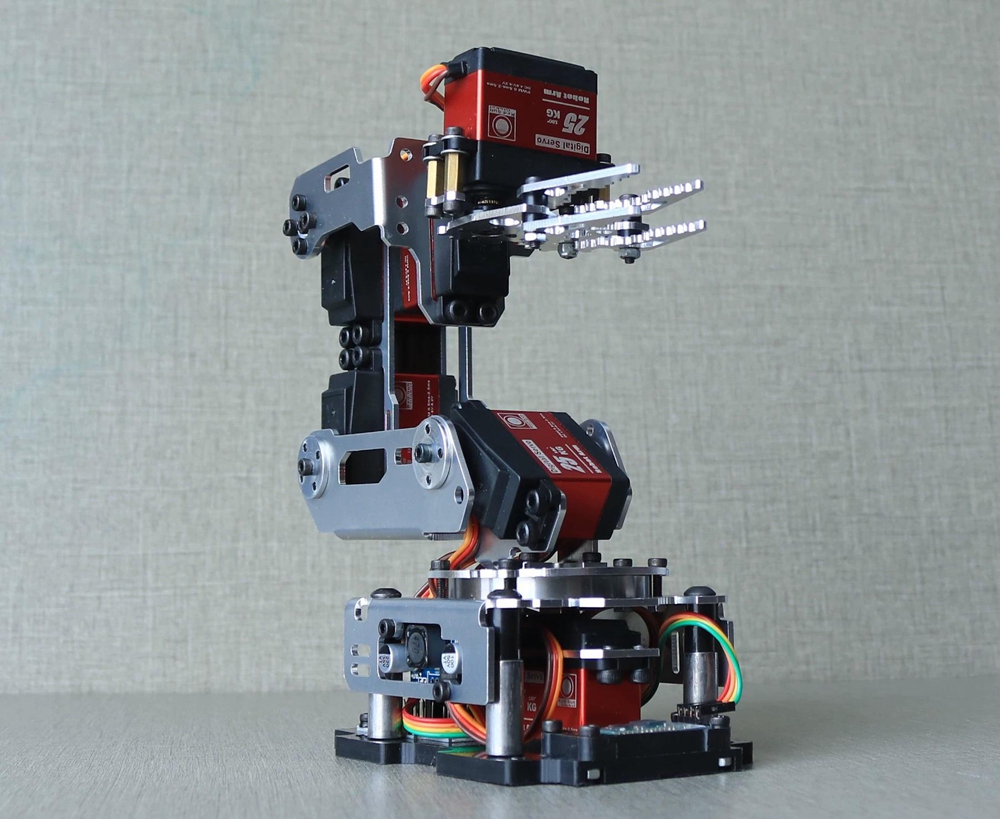

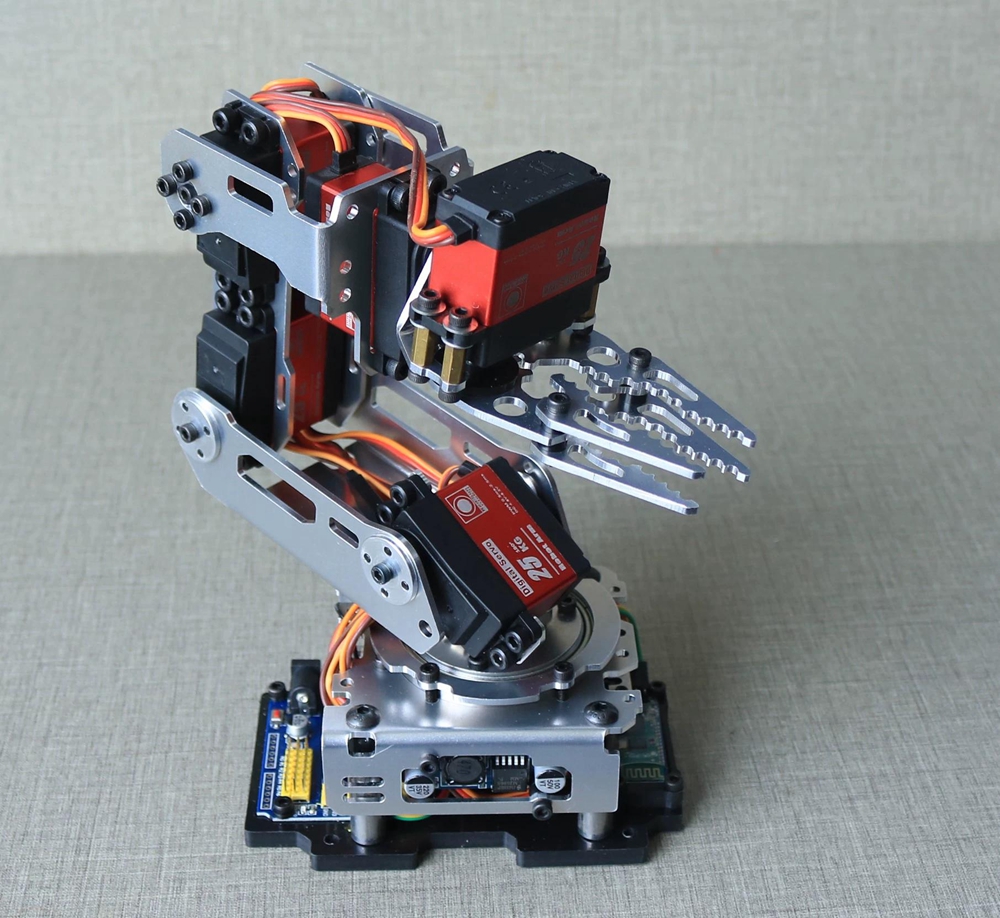

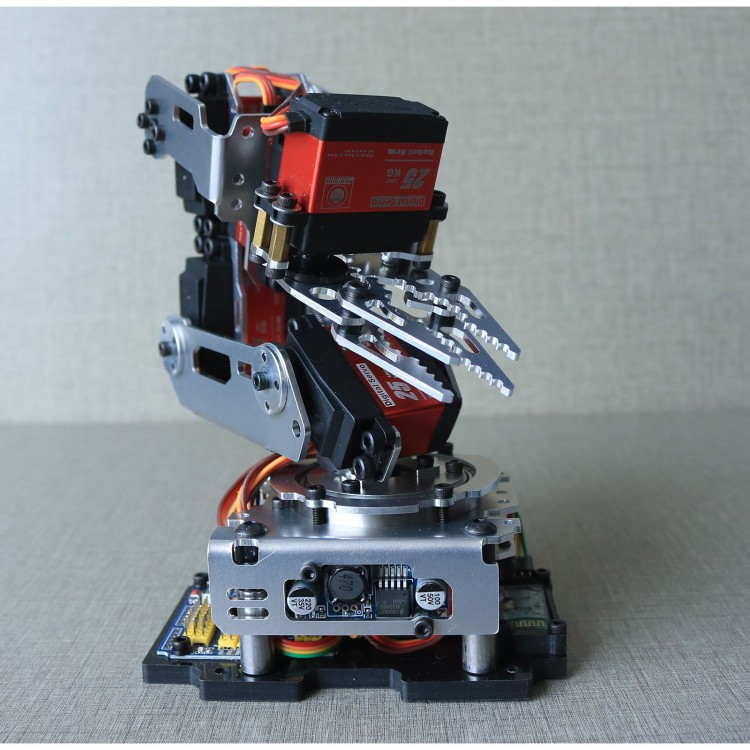

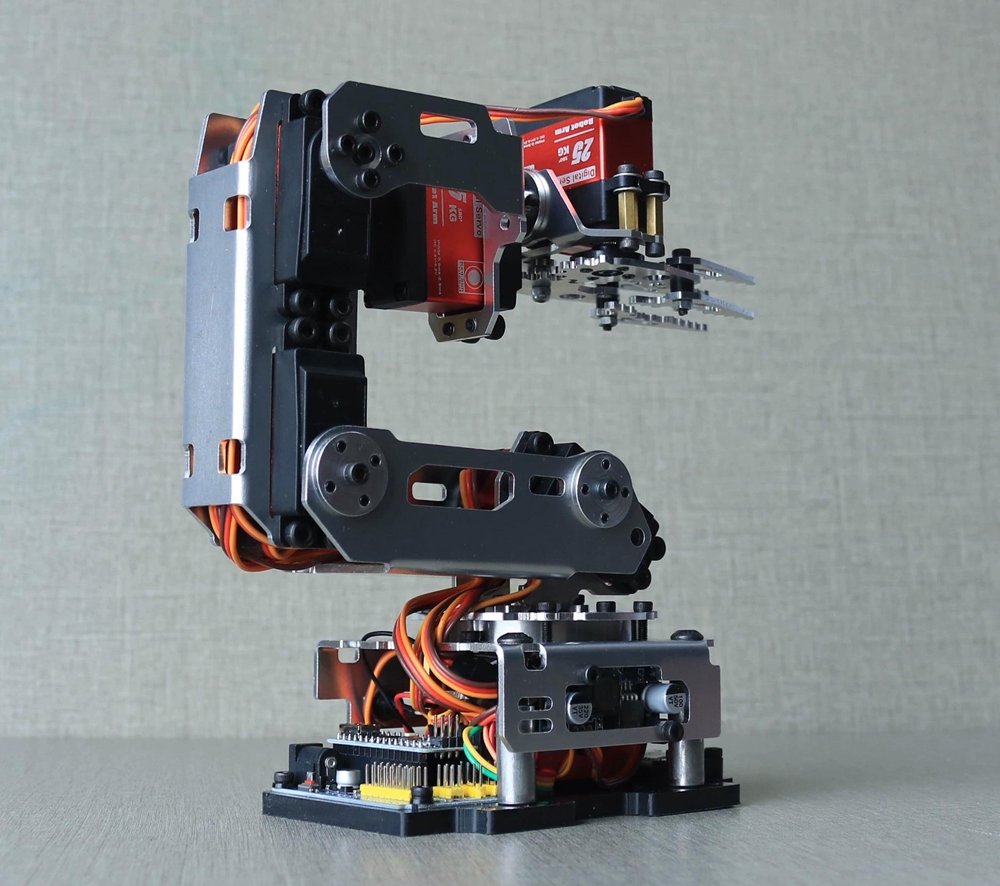

6 DOF Metal Mechanical Arm Aluminum Alloy Bracket High Quality Robot Arm for Arduino DIY Kit
25KG Digital Servo:
- Servo motherboard: digital controller
- Servo size: 40 x 20.5 x 40.5mm
- Weight: 62g±5%
- Working voltage: 4.8 - 7.2V (instantaneous 8.2V)
- Output transmission: full metal gear + dual bearing
- No-load speed: 0.145 - 0.185sec/60°
- Locked rotor torque: 25.5kg/cm
- Pulse width: 500-2500usec
- Rotation angle: 180°
- Dead zone width: 5usec
- Mid point position: 1500usec
- Output shaft: 25T
- Output shaft hole: M3
- Idle current: 220-280mA
- Blocking current: 2250-2850mA
- Waterproof level: mild waterproof
- Shell: Aluminum alloy body (red) + plastic (black)
20KG Digital Servo:
- Servo motherboard: digital controller
- Servo size: 40 x 20.5 x 40.5mm
- Weight: 56g±5%
- Working voltage: 4.8 - 7.2V (instantaneous 8.2V)
- Output transmission: full metal gear + dual bearing
- No-load speed: 0.14 - 0.18sec/60°
- Locked rotor torque: 20.5kg/cm
- Pulse width: 500-2500usec
- Rotation angle: 180°
- Dead zone width: 5usec
- Mid point position: 1500usec
- Output shaft: 25T
- Output shaft hole: M3
- Idle current: 210-260mA
- Blocking current: 2100-2700mA
- Waterproof level: mild waterproof
- Shell: Aluminum alloy body (red) + plastic (black)
Package Included:
- 1 x Set of Mechanical Arm
Note:
- This product needs to be assembled by yourself.
