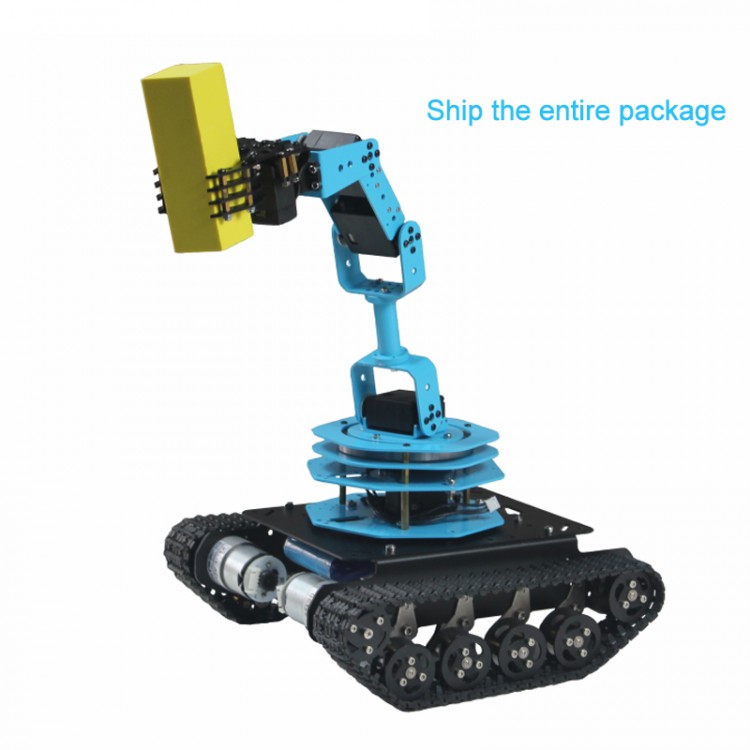

6 DOF Robot Arm RC Tracked Robot TS100 Smart Tank Car Support Bluetooth/Joystick For PS2 Assembled

6 DOF Robot Arm RC Tracked Robot TS100 Smart Tank Car Support Bluetooth/Joystick For PS2 Assembled

Product Features:
- 6 Axis mechanical arm.
- Structural Design: Metal structure, overall bearing design, high mechanical accuracy, smooth operation.
- Easy to Use: Comes with HM-MS10 steering gear. Enjoy DIY fun.
- Power Configuration: All metal gear dc reduction motor and large torque steering gear, full power.
- High Expansibility: Provide extension interface for secondary development.
- 2 Control Ways: Remote control via mobile phone APP or joystick for PS2.

HM-GM-37-3429 Motor:
- Working voltage: DC12V, maximum power 12W
- Reduction ratio: 1:30
- Stall current: ≤ 3.8A
- No-load current: ≤ 140 mA
- Reducer length: 21.5 L
- No-load speed: 242 rpm
- Rated torque: 8.0 rpm
- Rated speed: 125 rpm
- Rated current: ≤ 2.0A

HM-MS10 Steering Gear:
- Control angle: 0 to 180°
- Steering gear torque: 15KG.CM (6V), 20KG.CM (7.2V)
- Working voltage: 6-7.4V
- Working temperature: 0 to 55℃
- Gear material: metal copper
- Steering gear weight: 55g

Package Included:
- 1 x Set of Robot Arm & TS100 Chassis

Controller Features:
- Multiple steering gear interfaces
- Multiple motor interfaces
- Joystick control for PS2
- Graphical programming
- Bluetooth connection control
- USB connection
- APP mobile phone control
- 8M memory chip
- Provide source code
- Low-voltage alarm

Note:
- It is assembled and ready to use.
- The product uses metal conductive material. Do not put the controller directly on all conductors such as metal plates to prevent short circuit.
