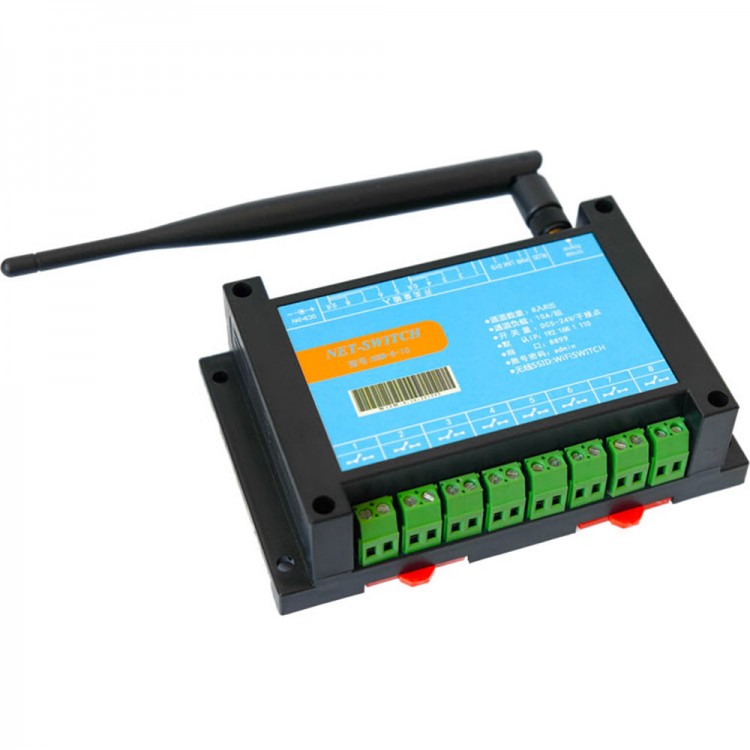

6 in 4 out 10A Network Relay Wireless Controller Net Switch TCP UDP Double Network Port

Availability: In stock, usually dispatched in 1 business day

  • Price:$89.07
  • Price in reward points: 891 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $87.29 $85.51 $82.84 $79.27 Contact US
Quantity:

6 in 4 out 10A Network Relay Wireless Controller Net Switch TCP UDP Double Network Port

Features:

- Support network connection encryption authentication
- Power supply part adopts LM2596S switch power supply
- 4 channel relay outputs control, 30A
- 6 digital inputs detection, support for passive dry contact (also supports active 5-12V DC switching inputs), With active trigger switch reporting functions.
- Standard 9V or 12VDC power supply (default 12V. Leave message when ordering)
- Support a variety of control modes. Supports digital input trigger relay switches, remote real-time control, timing control mode

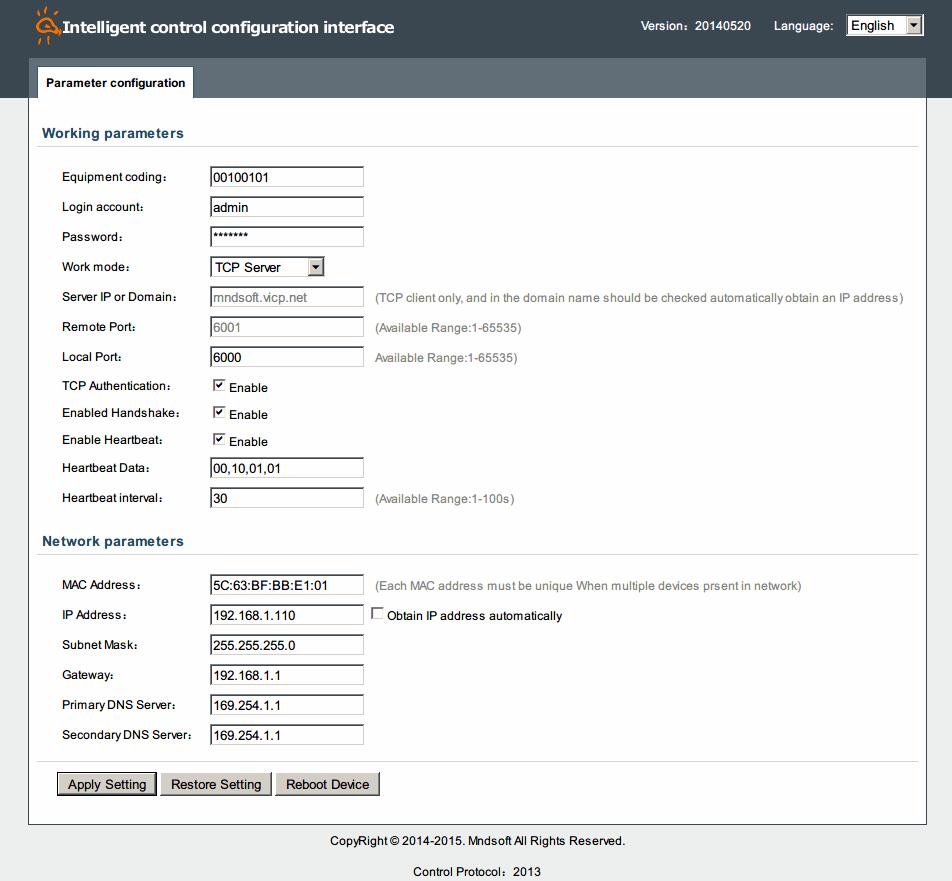

- Easy to configure. Each channel can be configured among three modes.
- Trigger delay can be configured. 1-99 seconds.
- Auto power off memory. automatically save the last switch state when disconnected, restore after power on.
- Single or multiple jog control. Time delay control single channel or multi-channel at the same time.
- Support Android phone software WIFI control


Package List:
- 1 x Relay control box
- 1 x Power adapter
- 1 x RJ45 network cable 1.8 m
