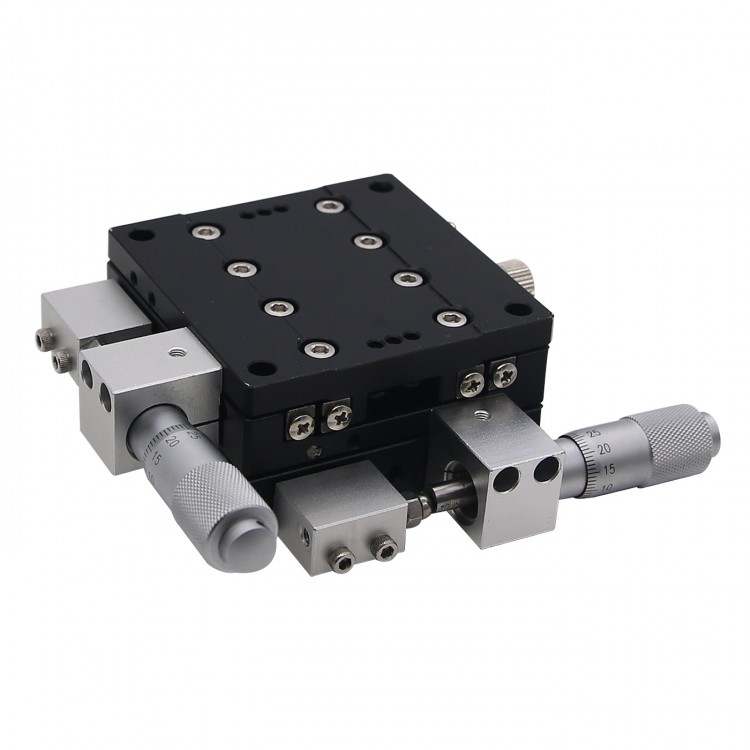

60*60mm XY Axis Manual Displacement Platform Trimming Station Linear Stage Sliding Table XYR60-R-30
Description:
Rotating platform enables fine adjustment of the angle of the platform to the approximate location. Using the thickness adjusting switch screws, it can be fine-tuned using a micrometer.
Features:
- Using cross roller guide for high accuracy, smooth movement
- Lightweight: its main material aluminum alloy makes it suitable for built in other devices
- XY axis free combination slide, can be free assembled according to your requirements
Parameters:

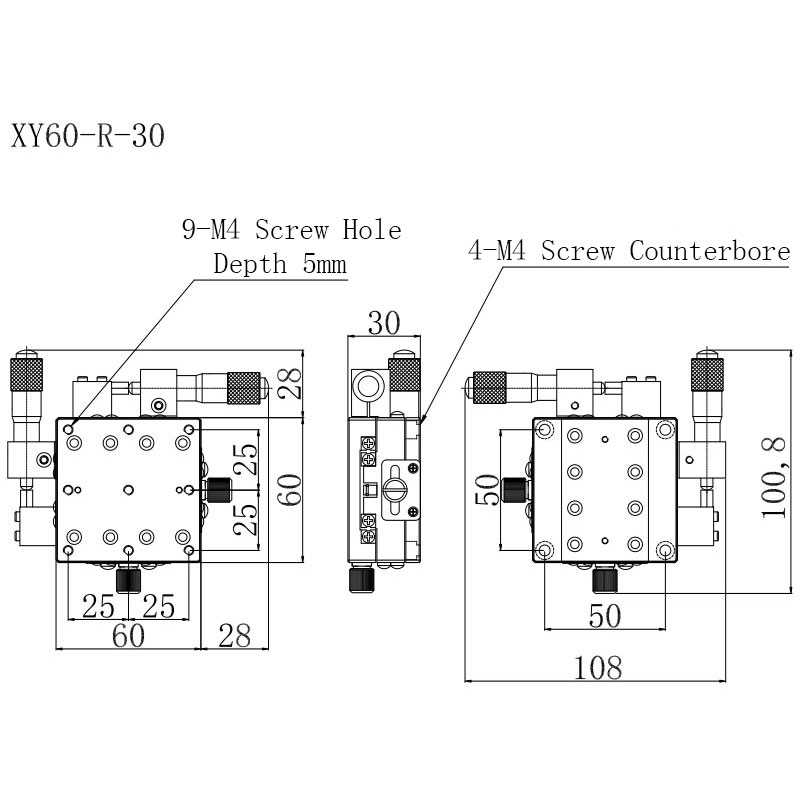

- Model: XY60-R-30
- Moving Direction: XY Axis
- Material: Aluminum Alloy (Surface black anodizing)
- Rail Type: V-type precise cross roller guide
- Dimension: 60*60 mm
- Travel: X Axis: ±6.5mm; Y Axis: ±6.5mm
- Table Thickness: 30mm
- Drive Mode: micrometer
- Minimum scale: 10μm
- Load: 49N (5kgf)
- Accuracy: 10μm
- Linearity: 5μm
- Weight: 0.51kg
Package Included:
- 1 x XY Axis Platform
