600-1200rpm 2NM 57 Integrated Closed Loop Stepper Motor Driver DC 36V JMC iHSS57-36-20

Availability: In stock, usually dispatched in 1 business day

  • Price:$122.92
  • Price in reward points: 1229 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $120.46 $118.00 $114.32 $109.40 Contact US
Quantity:

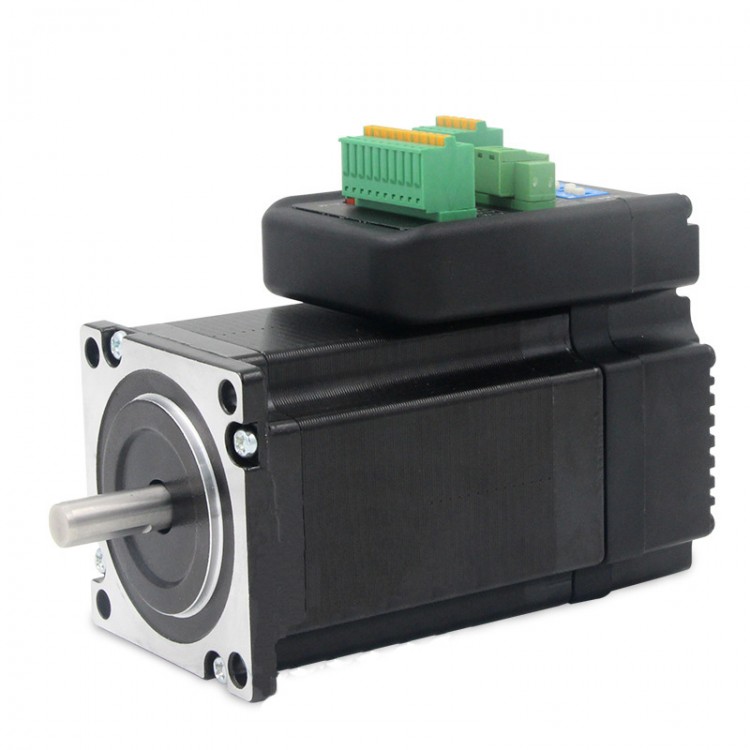

600-1200rpm 2NM 57 Integrated Closed Loop Stepper Motor Driver DC 36V JMC iHSS57-36-20

Motor Parameters:

- Item Name: 57 Integrated Closed Loop Stepper Motor
- Model: iHSS57-36-20
- Rated Current: 5A
- Static Torque: 2NM
- Shaft Size: 8x21mm
- Flat Filament Size: 5*15mm
- Working Speed: 600-1200rpm
- Encoder: 1000Hz
- Motor Length: 109.5mm
- Hole Spacing: 47.14mm

Technical Parameters:
- Input Voltage: 20 to 50V DC (Typical Value 36V DC)
- Continuous Current: 4.5A, 20KHz PWM
- Pulse Frequency: 200KHz
- Default Communications Rate: 57.6kbps

Multiple Protections:
- Over-Current Peak: 8A±10%
- Over-Voltage Peak: 70V DC
- Over-heat peak is settable via an extra handheld smart regulator

Features:
Space Saving: With integrated motor and driver in one item, this product saves more space for installation.
Full Closed Loop: Position encoder is installed and the vector control technology is adopted to ensure that there is no desynchronizing.
Low Heating / High Efficiency: Adjust current in real time according to the actual load conditions to minimize heat generation. It is highly efficient because it outputs around 99% torque in such a compact space with the maximum energy conversion rate.
Large Torque/High Speed: The high-speed performance of the hybrid servo drive system is more than 30% higher than that of the open-loop stepper motor. Furthermore, its effective torque can be increased to over 70%, so that the motor can maintain high-torque operation.
Address Problem of Low-Speed Vibration: The space vector current control algorithm and vector smoothing filtering technology based on the feedback encoder have a good resistance to the low-frequency resonance that plagues the traditional stepping motor.
Speedy Response: It is suitable for short-distance quick start and stop and other occasions. The hybrid servo system retains some of the advantages of a conventional open loop stepper system in that the position response output is synchronized almost instantaneously with the input command signal. Its servo control technology offers high-torque output, which enables fast response.
◆ Smooth & Accurate: Based on the encoder space vector current control algorithm, it has excellent performance in the full speed range. Even at low speed applications, it can maintain a smooth and quiet operation.

Package Included:
- 1 x Integrated Closed Loop Stepper Motor Driver
