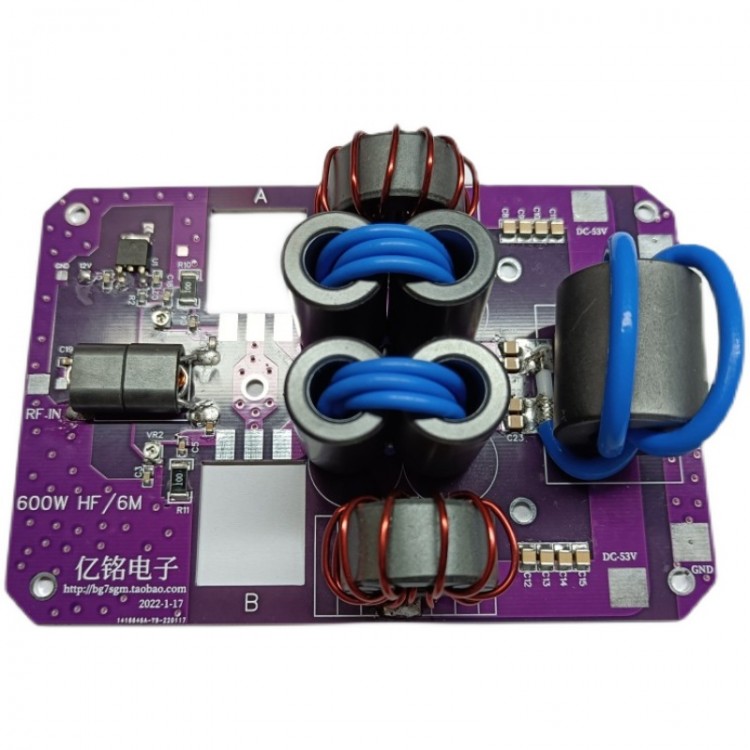

600W 1.8-30M HF Power Amplifier Board SSB Amp Board for Ham Radio Shortwave Radio Station DIY
Specifications:
- Static voltage: 2.7V
- Quiescent current: 300mA + 300mA
- Frequency: 1.8-30M
- Input power: 1-5W
- Maximum output power: 600W
- Voltage: 12V+53V; Current: 12V (1A) and 53V (15A)
- Dimensions: 138 x 88 x 40mm/5.4 x 3.5 x 1.6" (LxWxH)
- Board weight: 276G/0.6LB
Package Included:
- 1 x Board
Note:
- Power amplifier tubes and heat sink are not included, please purchase separately.
- The supported amplifier tubes are MRF300AN and MRF300BN.
