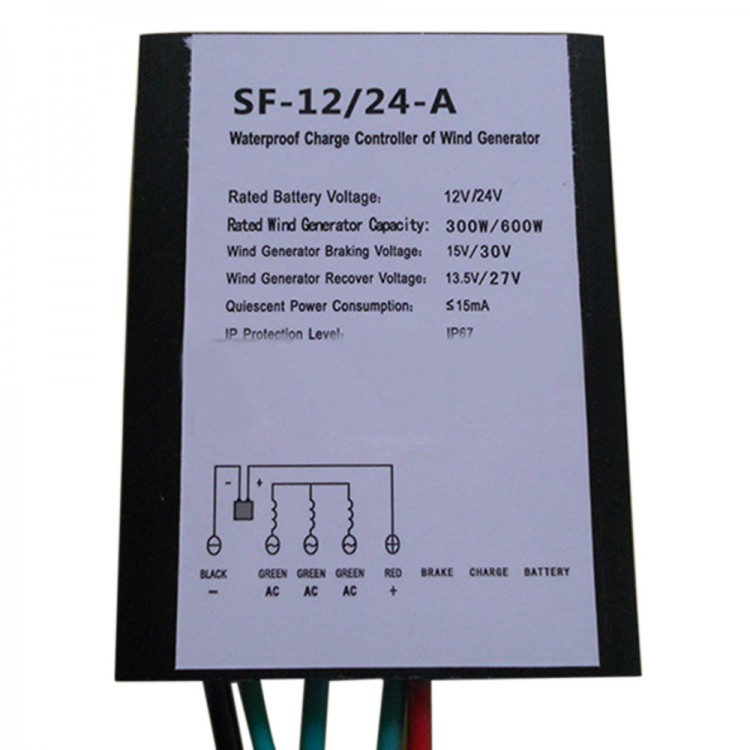

600W 12V 24V Waterproof Self-Adaptive Wind Turbine Generator Charge Controller
Specification:
- Rated Battery Voltage: 12V/24V Automatically match with the voltage of the battery
- Rated Wind Turbine Power: 300/600W
- Brake Down: 15/30V
- Restart: 13.5/27V
- Max Current: 30A
- Wokring Temperaure: -35 to 75 Degree Centigrade
- Dimension: 100MM*87MM*28MM
- Protection Grade: IP67
How To Assemble?
- First: Connect the red and black lines with the "+" &"-" of the battery bank
- Second: Connect the three green wires with the output wires of the wind turbine generator
Note:
- Make sure the rated output voltage of the wind turbine same with the rated voltage of the battery bank.
- Don’t directly connect the wind controller with the wind turbine until connected with the battery.
Instructions:
- This wind controller has three indicator lights to show the working status of the system.
"Brake" Light
- When the wind turbine generator is braked, the red light will be on.
- When the battery full charged or the wind speed too high, it will happen.
"Charge" Light
- The green light flashing means that the wind generator works and is charging the battery.
- Flashing speed shows the rotate speed of generator.
"Battery" Light
- This green light on means that the battery is connected correctly.
Package included:
- 1 x Wind Charge Controller
