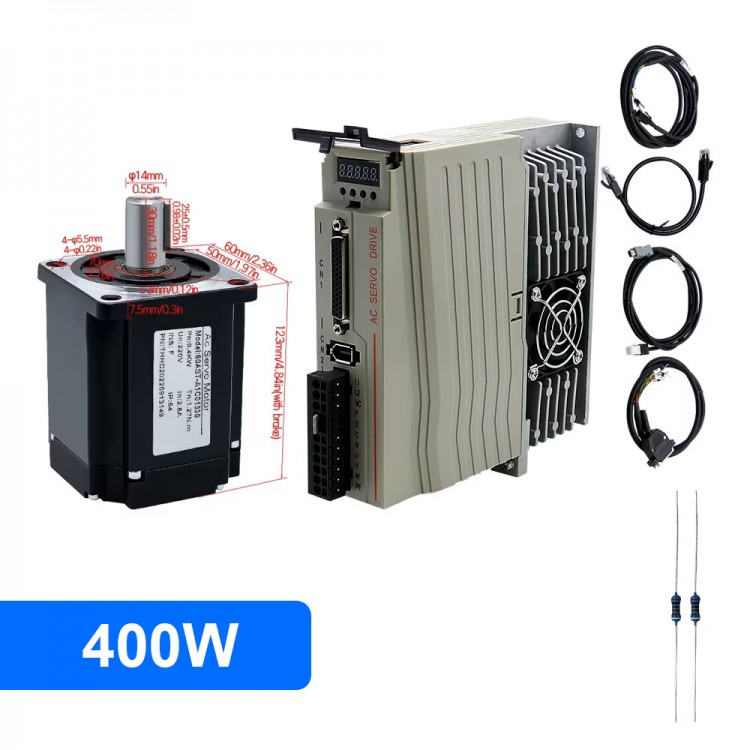

60AST-A1C01330 (without Brake) 400W 1.3NM AC Servo Motor Kit with AC Servo Drive for CNC Engravers
Features:
* Supports pulse (5V or 24V pulse signal), analog quantity (0-10V), and Modbus RS485 control
* Supports CNC and PLC systems
* To connect to a 24V pulse signal, two 2K 1/4W resistors need to be connected in series for P+ and D+, otherwise the driver will be burned out
* The motor with brake (optional) needs to be connected to a 24V external power supply and relay
* Power on settings
* Change P-036 to 1 (opposite direction), 0 (positive direction) motor direction conversion parameter
* Change P-098 to 1 (internal enable), 0 (external enable)
* The larger the parameter of P-029 electronic gear ratio, the faster the speed
* Long press the confirm button on E-SEF to display DONE saved successfully. After setting all parameters, power off and restart
Package Included:
* 1 x Servo motor (17bit absolute)
* 1 x AC servo drive
* 1 x Control signal cable
* 1 x 3-meter encoder cable
* 1 x Power cable
* 1 x RS485 cable
* 2 x 2K 1/4W resistors
Packaging Details:
* Weight: 3.3kg
Set After Powering on:
* Find P-098 and change it to 1
* Find the E-SEF, press and hold the confirmation key until it shows DONE. Then the parameters will be saved successfully. After all parameters are set, power off and restart.
Common Parameters:
* P-036 is changed to 1 (reverse direction), 0 (positive direction) motor direction conversion parameter. The default is 1 reverse direction.
* P-029 (electronic gear ratio numerator) is 1 by default. The higher the value, the faster the speed.
* The above parameters are general setting parameters. If you need to modify other parameters, please contact the technical/sales personnel.
The following parameters are rigid adjustment parameters. No adjustment is needed if the equipment is OK
* P-005 (speed ring rigidity)
* P-009 (position ring rigidity)
* P-006 (generally, the maximum setting is about 100)
* P-019 (generally, the maximum setting is about 300)
* The specific adjustment of rigid parameters depends on the transmission structure and load of the equipment. Contact the after-sales service personnel for specific questions
