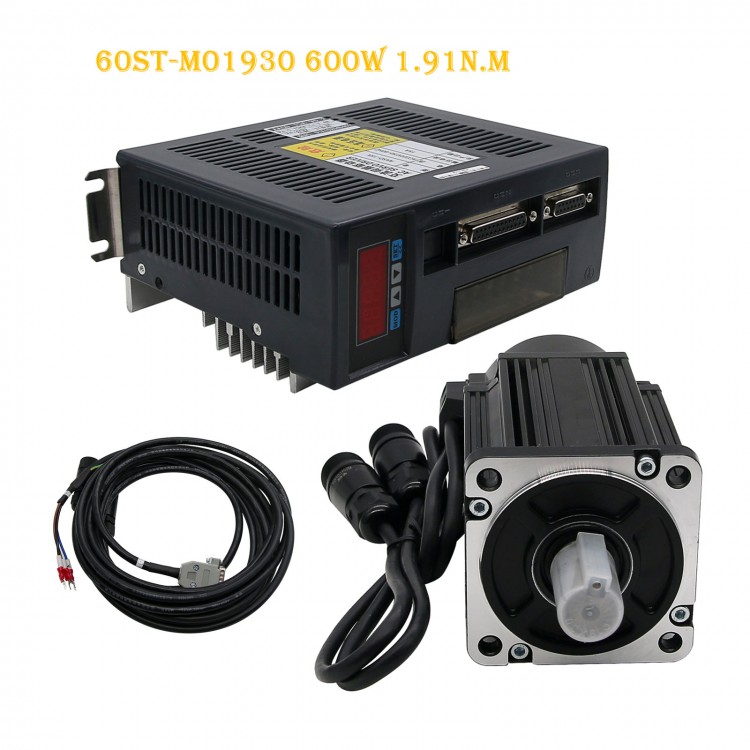

60ST-M01930 AC Servo Motor Kit 600W 1.91N.M + Servo Driver + Cable for CNC Machine
Package Included:
- 1 x Motor
- 1 x Driver
- 1 x 3Meter Motor Cable
- 1 x 3Meter Encoder Cable
- 1 x 25 Core Parallel Connector
Main Specifications:

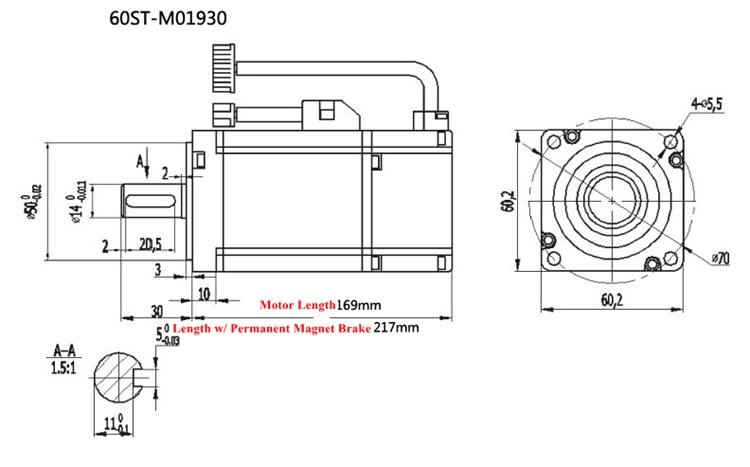

- Model Number: 60ST-M01930
- Rated power: 0.6kw (600W)
- Rated voltage: 220V
- Rated current: 3.5A
- Rated speed: 3000RPM
- Rated Torque: 1.91N.M
- Peak Torque: 5.73 N.m.
- Voltage Constant: 34 V/1000r/min
- Torque Coefficient: 0.55 N.m/A
- Torque Inertia: 0.39*10-4 Kg.m2
- Winding Resistance: 1.93 Ω
- Winding Inductance: 10.7 mH
- Electrical Time Constant: 5.5ms
- Encoder Line Number: 2500
- Motor insulation class: Class B
- Protection class: IP65
- Operating environment:
Ambient temperature: -20°C to 50°C
Relative humidity: <90 %( no condensation conditions)
Applications:
- CNC machining equipment, food processing equipment, material handling equipment, medical equipment, textile machinery and other industries.
Note:
Please contact us, if you need:
- Motor with Brake
- MODBUS communication function for RS-232 and RS-485
