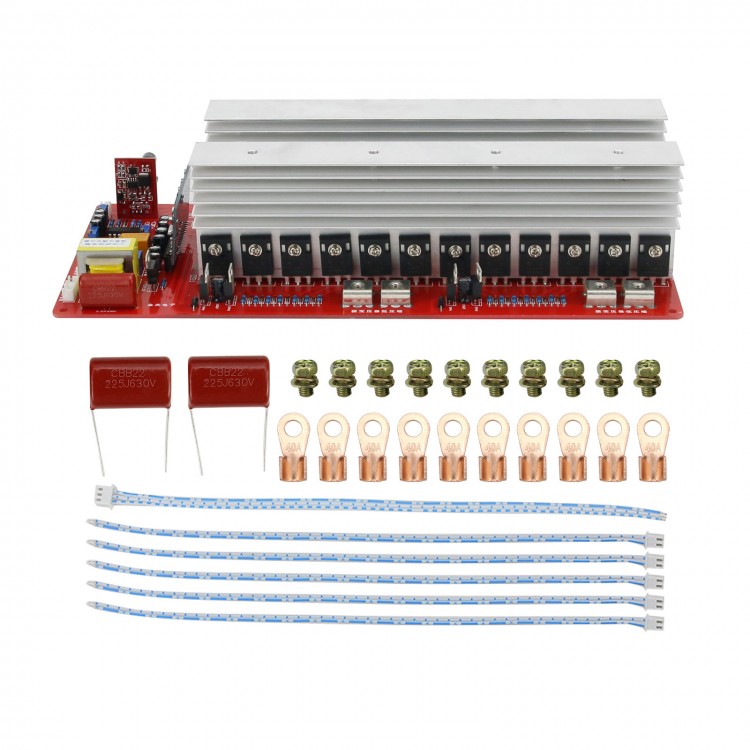

60V 11000VA Pure Sine Wave Inverter Board Inverter Driver Board Power Frequency Inverter Motherboard
Description:
Industrial frequency high-power sine wave inverter driver board boasts EG8010 sine wave main control chip, through the high-power drive circuit to drive 24pcs 247 packaged high-power field effect tube. Energy storage filter uses 8pcs 1500UF original brand new high-frequency low resistive electrolytic capacitors which are powerful, stable and reliable.
Features:
- 8pcs 1500UF original electrolytic capacitors
- Extra large heat sinks 240x68mm (LxH)
- PCB board size 315 x 140mm (LxW)
- Independent power supply voltage withstand voltage up to 160V, small size, large energy
- The transformer's low-voltage winding is separated from heat sinks, and four high-current terminals are added, which is stable and reliable
Wiring:
- Switch Port: connects to a small switch for standby or inverter conversion
- Indicator Port: connects LED indicator as standby or inverter indication
- DC Indicator: connects to DC voltage meter
- Fan Port: connects a 12V cooling fan
- AC Indicator: connects to a AC voltage meter
- Feedback Port: connects to high-voltage output terminal of transformer
Package Included:
- 1 x Set of Pure Sine Wave Inverter Board
