60V 72V China-Made 1205M-6B403 Programmable DC Series Motor Controller Assemblage Compatible-CURTIS

60V 72V China-Made 1205M-6B403 Programmable DC Series Motor Controller Assemblage Compatible-CURTIS

Note:
- Customers need to make us know the voltage and motor controller type: 0-5kΩ, 5k-0Ω or 0 – 5V, one of the three. In addition,we need the hole distance for the baseplate.

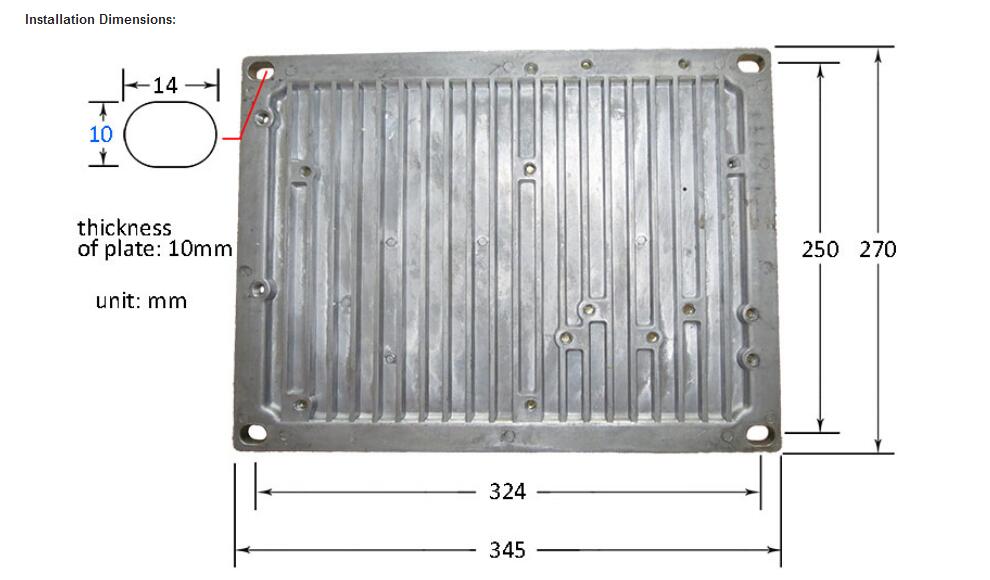

The distance diagram:


Product Description:
- Compatible-Curtis Programmable DC Series Motor Controller Assemblage
- Model: 1205M-6B403 (Upgraded Version of 1205M-6401 / 1205M-6B401)
- 60V / 72V - 400A, with Foot Pedal (throttle) and Installation Kit

Specifications:
- Full function controlling set for 60V or 72V DC Series Motor
- Simple motor connecting labels on assemblage
- Easy installation with components mounted on a heat-sink aluminium alloy installation plate
- Foot pedal accelerator (throttle), pre-wired for assemblage
- Simple plug-in connctors (1204M / 05M Controller Assemblage Connectors' Definition (PDF format))
- Easy to install (1204M / 05M Controller Assemblage Installation Instruction (PDF format))
- Reinforced carton package, safe for international delivery

1204M / 05M Controller Assemblage Connectors' Definition:Click here

1204M / 05M Controller Assemblage Installation Instruction:Click here

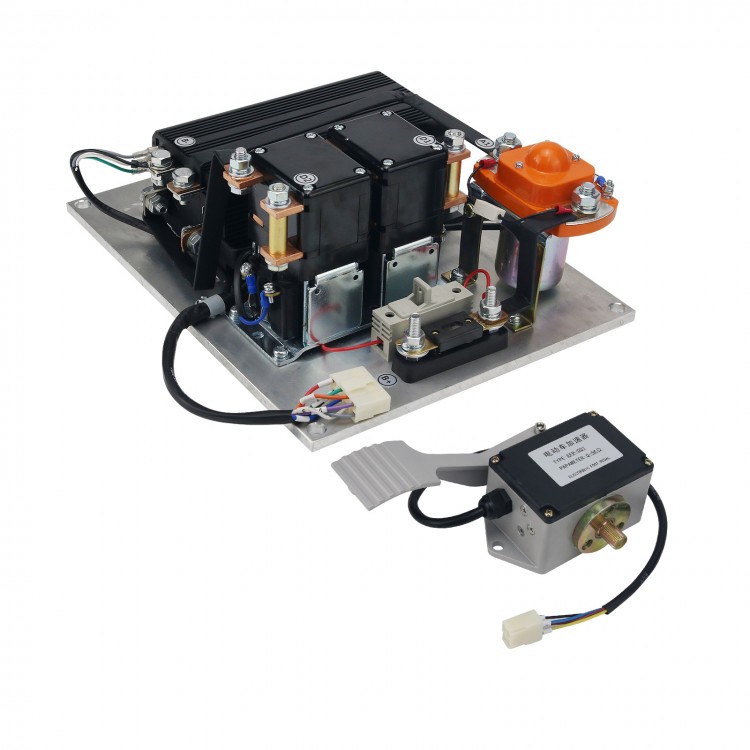

This 1205M-6B403 controller assemblage is a completed electric vehicle DC Series Motor control system. The assemblage includes:
    controller
    main contactor
    forward / reverse contactor
    fuses
    wiring
    heat-sink aluminium alloy installation plate
    foot pedal accelerator (throttle)
    plug-in connectors
    installation (bolts, washes and nuts) kit Included

Notice: 1205M-6B403 is the new upgraded version of 1209B-6401 / 1205M-6401 / 1205M-6403 DC series motor controller, with new J5 terminal (reverse signal output / main contactor coil driver), and supporting more throttle types.

Notice: For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the 1204M/05M Manual before making the purchase.

1204M/05M Manual:Click here

Overview: Compatible-Curtis 1205M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1205M controllers are updated versions of the popular 1204 controllers, with the added functionality of being programmable—via the Compatible-Curtis Model 1313-4431 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

Compatible-Curtis 1205M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

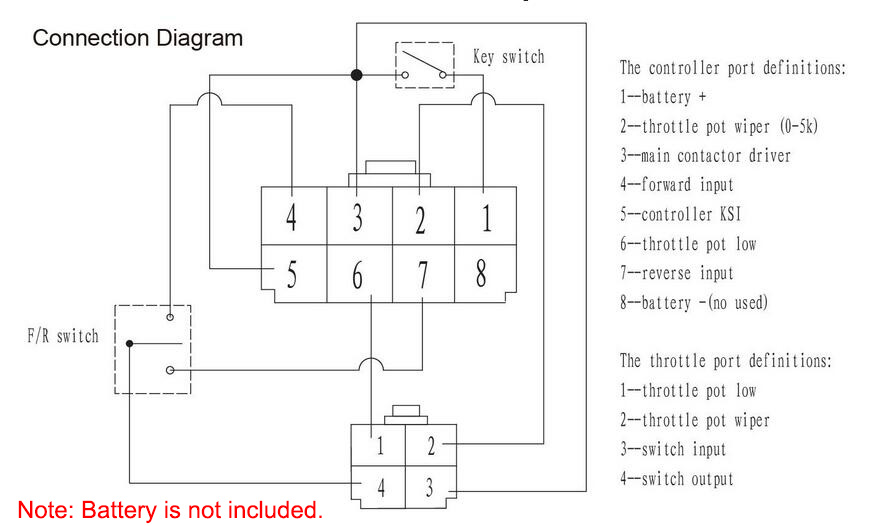

Wiring Diagram: In this assemblage, the J5 terminal of new 1205M controllers is not activated. The controller wiring is same to the old 1205M controllers without J5 terminal.

Diagram:Click here

1204M / 1205M controller manual:Click here

Key Features:
- Model: 1205M-6B403
- Norminal Battery Voltage (Volts): 72V (default setting) or 60V
- 2 Minute Current Rating (amps): 400
- 5 Minute Current Rating (amps): 275
- 1 Hour Current Rating (amps): 175
- Plug Braking (A2 Busbar): Yes
- Assemblage Net Weight: 9.2 kg

Features Include:
- High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
- Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
- Compatible with either a two-wire potentiometer or a voltage throttle.
- Throttle fault protection circuitry disables controller if throttle wires become open.
- High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
- Plug braking diode internal to controller.
- Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
- Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
- Easily programmable through the Original Model 1313-4431 Handheld Programmer or 1314 PC Programming Station.
- Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.

 Package List:
- 1 x 1205M-6B403 Motor Controller Assemblage

Note:
- Battery is not included.
