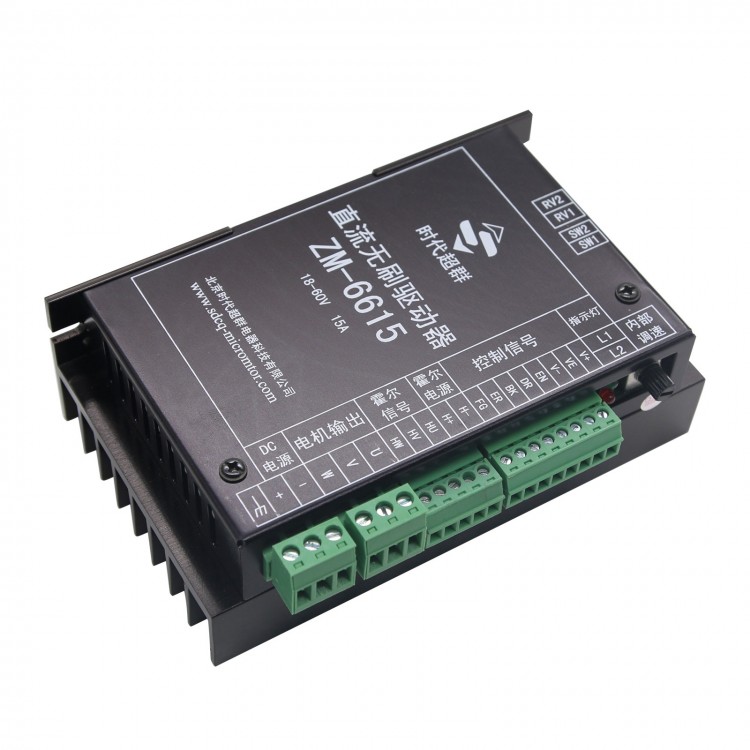

60V BLDC Motor Driver 18V-60V 900W DC Brushless DC Motor Driver Controller ZM-6615

60V BLDC Motor Driver 18V-60V 900W DC Brushless DC Motor Driver Controller ZM-6615

Description;
- ZM-6615 brushless DC motor controller; can drive 900W brushless DC motor; 15A large current; intelligent limit. With external port control; acceptable PWM and analog voltage signal!

Features:
- Highly integrated high reliability brushless DC (BLDC) motor controller
- Three-phase full-bridge, PWM chopping mode
- Closed loop speed, the motor can still maintain the speed when the load
- Pure hardware design, high speed, high anti-interference ability
- Current limit, the protection is more accurate and fast
-  Low fever, high power
-  Undervoltage (≤ 18V), overheating (> 150 ℃) automatic protection


The main function:
- Undervoltage (≤ 18V), overheating (> 150 ℃) automatic protection
- Stall protection time adjustable 2-15 seconds
- Hall error protection
- Output adjustable linearly adjustable: 1-15A
- Support for built-in potentiometer, external potentiometer, analog voltage and PWM speed control
- With enabled function
- With speed feedback signal output
- With EABS electronic fast braking function
-  With a slow start function, to avoid current overshoot, the effective protection of the motor



Interface definition:
- Positive / negative DC power input, 18-60V
- U, V, W drive output, then the motor phase line
- H +, H-Hall power supply, then the motor Hall power cord (maximum output 100mA)
- Hu, Hv, Hw Hall signal, then motor Hall signal line
- FG speed feedback signal (output duty cycle 50% square wave)
- ER alarm output (between alarm and V-)
- BK brake, floating or high when the normal, low level brake
- DR direction, floating or high level is forward, low level reversal

EN
- Enable, when the dial SW2 is off, when floating or high level
- For operation, low standby, when the code SW2 is on,
- Empty or high for standby, low for operation.
- V-external speed reference ground (COM side)
- Ve external speed signal, an external potentiometer, analog voltage or PWM

V +
- External potentiometer speed positive, do not use when floating. (Internal 5V output,
- Maximum output 200mA)
 - Power light Power indicator, green, long after power on

Package list:

-  1 x DC Motor Driver Controller ZM-6615
