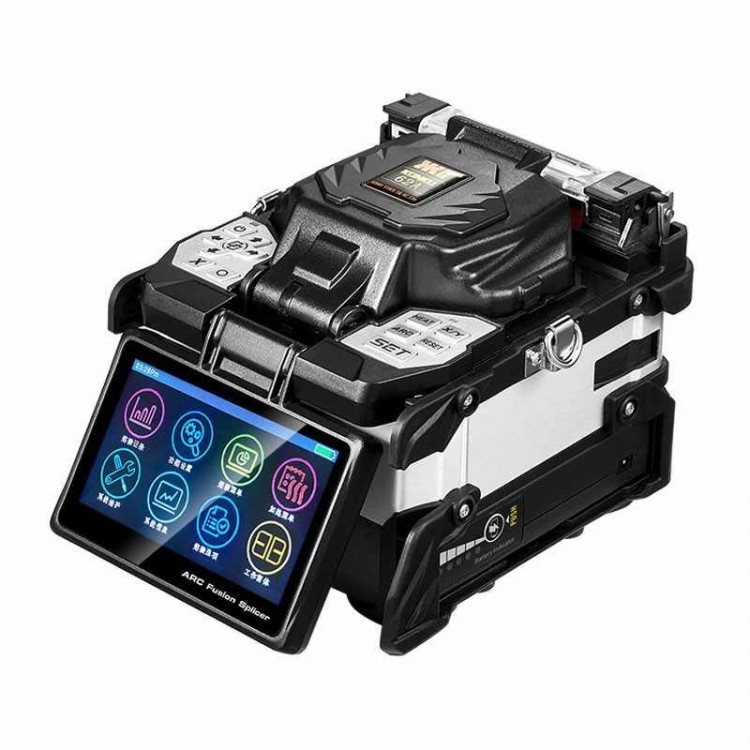

62A Original ARC Fusion Splicer Automatic Core Alignment Fusion Splicer for Drop Cable Fiber Pigtail

62A Original ARC Fusion Splicer Automatic Core Alignment Fusion Splicer for Drop Cable Fiber Pigtail

Features:
* 62A automatic core alignment fusion splicer: Robust, durable, stable and efficient
* 6-second fusion splicing and 15-second heating
* PAS accurate core alignment
* 320X magnification of single core display
* Three-in-one composite fixture
* Silent motor
* Supports fusion welding screen image export
* Imported core accessories make the product safe to use, stable in performance and durable. Original stepping motor for Siemens, original lithium battery for Panasonic, Japanese linear guide for IKO and imaging chip for Fujifilm
* Double V-shaped slots allow the user to place the fiber. The left and right all-metal clamps are pushed at the same time. This greatly improves work efficiency
* Three-point night lighting makes it suitable for operation in dark environments
* Simple bench: Easy to place fibers and easy to operate
* High-strength machine body: Rubber armor makes the body anti-fall, effectively extending the service life of the machine. The body is IPX1 waterproof, dust and soil resistant
* 4.3" HD display: High-resolution LCD color touch screen supports 180-degree flip of the image, and 300X independent display of X/Y axes. It supports the detection and display of splicing loss/cutting angle, and the intelligent detection and prompt of splicing fault
* 7200mAh removable battery: Stable current and long-lasting battery life make it safe to use
* A8 fiber optic cleaver: The cutting angle is stable at 0.5 degrees, and the blade can be used 36,000 times
* Small and lightweight for carrying: The lightweight body makes it easier to carry and work at height. The weight of the main unit (including battery) is 1.55kg
* Scope of application: FTTH, security monitoring, communication engineering, metropolitan area network lines, residential optical fiber transformation and power optical cable

Specifications:
* Fiber type: SM, MM, DS and NZDS
* Splicing loss: 0.01dB (SM), 0.02dB (MM), 0.04dB (DS) and 0.04dB (NZDS)
* Return loss: >60dB
* Operation mode: manual, semi-automatic and fully automatic
* Fiber alignment: Advanced PAS alignment
* Applicable optical fiber: drop cable, fiber pigtail, optical cable, 0.25mm, 0.9mm and 3.0mm
* Splicing time: ≤6s
* Heating time: ≤15s automatic heating
* Cutting length: 8~16mm
* Magnification: 320X
* Image display: The high-performance 4.3-inch LCD touch screen provides clear and delicate image display
* Tension test: standard 2N (optional)
* Heat shrink tube: 60mm, 40mm, 20mm and a range of heat shrink tubes
* Battery: 400 typical splicing and heating. Charging time of about 6 hours (you can use the splicer while it is being charged)
* Battery life: 5000~6000 times of cycle charging. Battery replacement is easy and convenient
* Electrode life: 6000 times typical. Easy and convenient electrode replacement
* Warranty coverage: The main unit is guaranteed for two years
* Interface: USB interface is convenient for downloading data and updating software
* Construction lighting: Built-in high-brightness, wide-range lighting makes it convenient for night operation
* Power supply: 11.1V 7200mAh built-in lithium battery
* External adapter: input (AC100-240V) and output (DC 13.5V/4.5A)
* Working Environment: Temperature: -10°C to +60°C; humidity: 0~95%RH (no condensation): altitude: 0~5000m
* Weight: 1.95kg (including battery)
* Dimensions of main unit: 160mm x 140mm x 125mm (LxWxH)

Package Included:
* 1 x 62A main unit
* 1 x Carry case
* 1 x 7200mAh battery
* 1 x Charger
* 1 x Fiber cleaver
* 1 x Bag for fiber cleaver
* 2 x Spare electrode bars
* 1 x Carry case strap
* 1 x Cooling rack
* 1 x Bottle
* 1 x Bag of cleaning and maintenance tools
* 1 x Wear and tear inspection report

Packaging Details:
* Weight: 7kg
