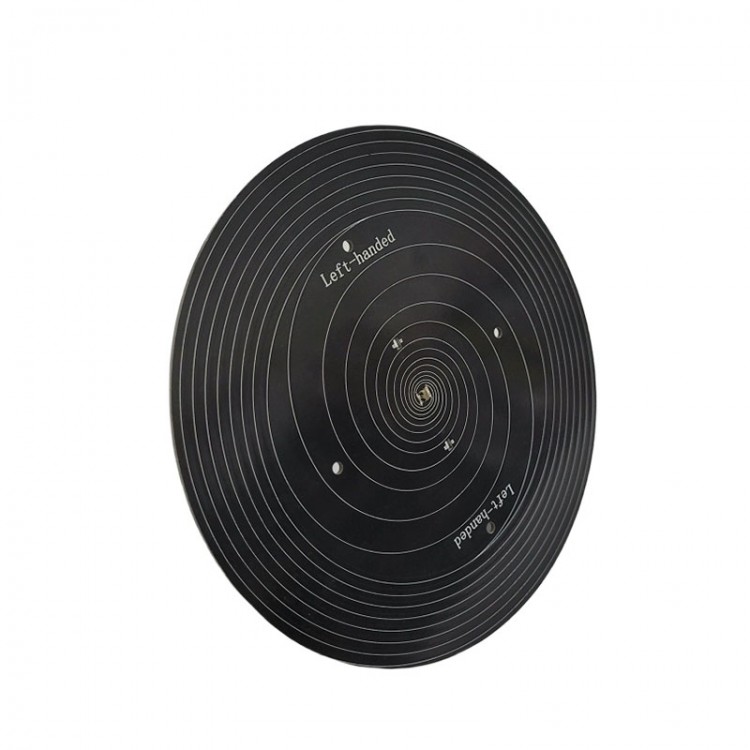

640MHz - 9.2GHz Left-handed Circular Polarized Antenna Spiral UWB Antenna with SMA Female Connector
Description:
- This antenna is an ultra wideband equiangular spiral circularly polarized antenna, divided into left-handed circularly polarized and right-handed circularly polarized antennas.
- It can be used for direction finding, spectrum analysis, signal analysis, navigation positioning, broadband measurement, direction finding, etc., providing 4 - 7dBi circularly polarized directional gain in the frequency range of 700MHz - 9.2GHz.
- It is used for typical operating frequencies of 915MHz, 1090MHz ADS-B, 1268MHz-1610MHz GPS, 1420MHz, 2.4GHz, 5.8GHz VTX with low standing wave, high gain, and significant performance.
Specification:
- Working bandwidth: 640MHz - 9.2GHz
- Polarization method: left-handed polarization
- Gain: 4dBi - 7dBi
- Radiation angle: H = E = 84°
- Axial ratio: <1dB
- Impedance: 50ohm
- SWR: < 1.5
- Diameter: 150mm
Package Included:
- 1 x UWB Antenna
