Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $773.22 | $757.44 | $733.77 | $702.21 | Contact US |

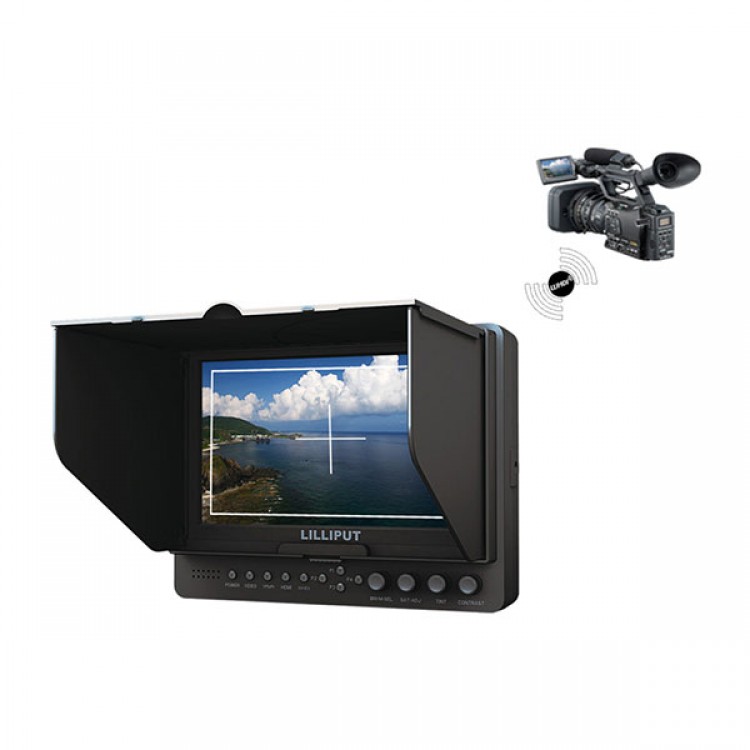

665/P/WH 7" Inch Wireless HDMI Monitor Wireless HDMI Monitor with WHDI HDMI YPbPr for FPV Photography
Function:
- The 665/P/WH is a 7" wireless HDMI Monitor with WHDI, HDMI, YPbPr, component video, peaking functions, focus assistance and sun hood. Optimised for for DSLR & Full HD Camcorder.
- Note: 665/P/WH (with advanced functions, wireless HDMI input)
665/O/P/WH (with advanced functions, wireless HDMI input & HDMI output)
665/WH (Wireless HDMI input)
665/O/WH (Wireless HDMI input & HDMI output)
PTP & PTMP Transmission:
- PTP: Point-to-point (standard),
- PTMP: Point-to-multipoint (optional)
- *One transmitter can work with one receiver or multi-receivers.
Peaking Filter:
- This feature is most effective when the subject is properly exposed and contains enough contrast to be processed.
FALSE COLORS FILTER:
- The False Color filter is used to aid in the setting of camera exposure, which enables proper exposure to be achieved without the use of costly, complicated external test equipment.
- OVEREXPOSED: Overexposed objects will display as RED;
- PROPERLY EXPOSED: Properly exposed objects will display elements of GREEN and PINK;
- UNDEREXPOSED: Underexposed objects show as DEEP-BLUE to DARK-BLUE.
EXPOSURE (ZEBRAS):
- The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern.
BRIGHTNESS HISTOGRAM:
- The Brightness Histogram is a quantitative tool to check the picture brightness. This feature shows the distribution of brightness in an image as a graph of brightness along the horizontal axis (Left: Dark; Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.
DISPLAY
|
Panel | 7" LED backlit |
---|---|---|
Physical Resolution | 1024×600, support up to 1920×1080 | |
Aspect Ratio | 16:9 | |
Brightness | 250cd/㎡ | |
Contrast | 800:1 | |
Viewing Angle | 160°/150°(H/V) | |
INPUT
|
WHDI | 1 |
HDMI | 1 | |
YPbPr | 3(BNC) | |
VIDEO | 1 | |
AUDIO | 1 | |
OUTPUT
|
HDMI | 1(optional) |
VIDEO | 1 | |
POWER
|
Current | 800mA |
Input Voltage | DC 7-24V(XLR) | |
Battery Plate |
V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
|
Power Consumption | ≤10W | |
ENVIRONMENT
|
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ | |
DIMENSION
|
Dimension(LWD) | 194.5×150×38.5 / 158.5mm (with cover) |
Weight | 560g / 720g (with cover) | |
VIDEO FORMAT
|
WHDI(wireless HDMI) |
1080p 60/50/30/25/24Hz |
HDMI |
1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz 1080i 60/59.94/50Hz, 1035i 60/59.94Hz 720p 60/59.94/50/30/29.97/25Hz 576i 50Hz, 486i 60/59.94Hz, 480p 59.94Hz |
