68-Character Manual Stamping Machine PVC/ID/Credit Card Embosser Code Printer

68-Character Manual Stamping Machine PVC/ID/Credit Card Embosser Code Printer

Description:
1.Manual Braille printer (imprinter) is the necessary equipment PVC card post-production processing. Function that is pressed out of the surface of PVC card Braille code, make PVC card with identifiability and uniqueness
2.PVC manual Braille coding structure, reliable, precise positioning, small size, beautiful appearance, convenient operation. Applicable to all major shopping, entertainment, dining center, securities trading centers, banks, insurance and other small-volume, multi-species card card production
3.For the workpiece: standard PVC cards: 85.5mm × 55mm

Parameter:
1. Character Select: daisy-shaped character turntable
2. The word character features altogether 68:Capital letters (26pcs): A ~ Z;The size of the Arabic numerals (20pcs): 0-9;Small symbols (8pcs): & `.- / ();Large symbol (12pcs): £ N O yuan $ ¥. - / ():;Modify flatten operator (2pcs): ■ ■
3. Using ISO standard international credit card special characters.
4. kerning intervals of 2 files:1/7 inch;1/10 inch (limited to the use of small characters)
5. Operation modes: manual
6. Braille rows: 1-11 row
7. Braille position indicator: Indicates the needle or sample card
8. Volume (L×D×H): 340×280×180 (mm)
9. Net weight: 9 kg

Operation:
1. 85.5 * 55mm model card into the slot
2. Adjust the position pointer reference model card
3. Select the character rotating disk
4. After your selection, press the start lever

Machine use
A, preparatory work:
1. Place the handle (5) into the shaft hole on the right side of the machine, tighten the fastening screws (6).
2. Insert the card box (4) to pull out of most, if necessary outside the box into the desired type of card-like card;
3. card imprint will be required to tilt the front of the metal box into the card slot and gently forward, the press box to the front of the card into the slot next to the card.
B, spacing options:
According to the lateral spacing of different models, embossed characters are generally between 1 / 7inch, 1 / 10inch and 1 / 12inch choose to use, the lateral spacing character selection can be adjusted by turning the knob kerning (7) to achieve. Where 1 / 7inch at large character spacing; 1 / 10inch at the small space between characters; 1 / 12inch at italics spacing (the spacing WSDM-E and WSDM-CE-type machine only). When using WSDM-CE-type machine, you need to select 1 / 7inch and 1 / 12inch kerning interval must first kerning adjustment knob (7) Steering 1 / 7inch, 1 / 12inch at the front side of the machine and then allocate the word from the switch (8) to select 1 / 7inch or 1 / 12inch kerning interval. Longitudinal distance fixed intervals, each interval of tooth / 20inch, gently sliding the card box (4) Select.
C, choose a code word location:
1. Turn the election code disc (1), the imprint will be required to go to the character of the character pointer (2) position.
2, the card can directly select vertical position and gently sliding the card box (4) is selected.
3, left and right position to select a card, move directly nudge card box (4) implementation; move left to light under the pressure of the handle (5) (about 15 degrees) and then reset the card box (4) to the Left moving a grid, through the above steps, you can locate the card in the required position imprint.
4, card imprint is left to right, to the left of a cell automatically, and if the space can be carried out after every three imprint a character.
5, embossed characters: joystick (5) under pressure in the end after a reset can be.
6. If you play a character or deep or shallow, does not meet the requirements, can be adjusted by adjusting the screw hole at the bottom of the machine to adjust.
Adjustment method is: Z random word hex wrench loosen the fixing nut a little, and then trace the random hex wrench to adjust the intermediate adjustment screw. Note: After the adjustment screw clockwise, can play a character deepened; after adjustment screw counterclockwise rotation can play shallow characters. Please complete random hex wrench after stabilize the adjustment screw, Z random word hex wrench to tighten the retaining nut.
D, error correction:
If you need to modify the character, you can choose according to specific requirements ■ ■ or modified.
Modify small characters, use small flattened symbol ■.
Modify large characters, using a large flattened symbol ■.
Methods of operation and the same coding method, in the original position after Shuhei correct character needed to re-imprint.

Precautions
1. You use the card must be a standard PVC cards, namely 85.5mmX54MM.
2. Turn the word disc is strictly prohibited handle pressure, in order to avoid damage to the machine;
3. Replace the stalls, please note the positioning location, such as the middle needs to be replaced with a left hand to block the card box gently, so as not to block the card at the time of transposition neutral automatic shift;
4. Do your hands or other foreign objects into the machine;
5. When not using the machine, place card frame to the left terminal.
Package Included:

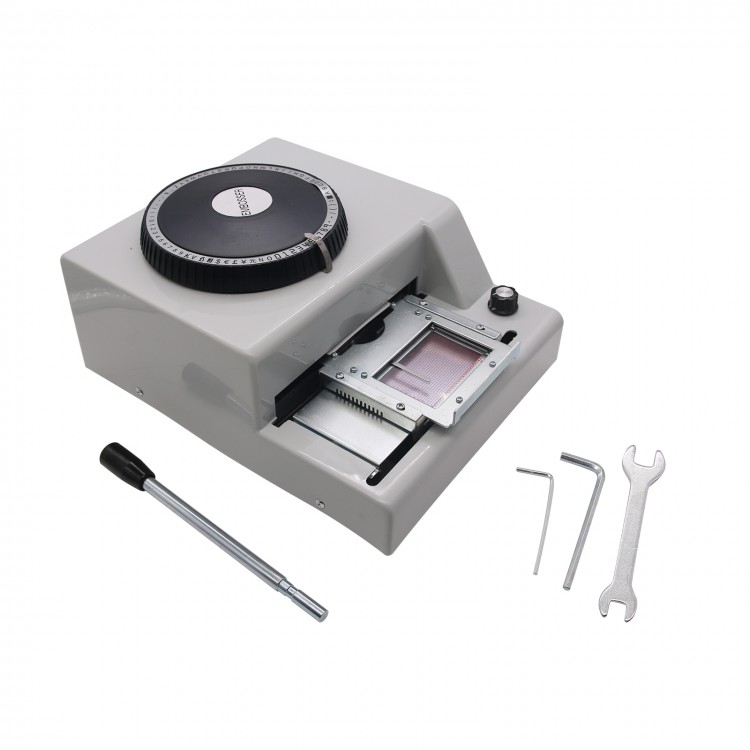

1 x 68-Character Manual Stamping Machine
1 x Set of Small parts
