Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $33.87 | $33.18 | $32.14 | $30.76 | Contact US |

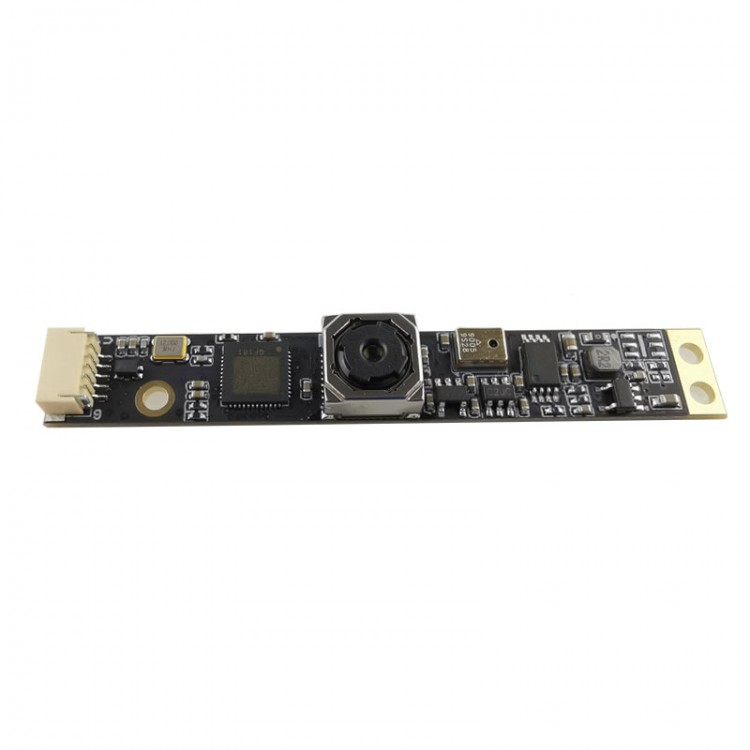

696 Laptop Camera Module 8MP USB HD Camera Module PC Built-In Camera Face Recognition Module
Features:
- 8MP high-end industrial grade hardware
- 65° horizontal viewing angle, autofocus HD camera
- Different lenses can be equipped according to your needs. Users can provide pictures to customize the lens
- Support digital microphone, video conference, face recognition, A4 paper photo, document comparison
-Used for all-in-one computers, self-service equipment, video doorbells, etc., to meet high-demand customers
- Suitable for large-scale network video conferences
- Plug and play, no need to install drivers. Compatible with multiple systems
Parameters:
- Pixel hardware: 8MP
- Maximum resolution: 3264*2448
- Viewing angle: 65 degree horizontal viewing angle
- PCB size: 60 x 9mm/2.4 x 0.4"
- Focus: automatic focus
- Sensor: 1/3.2 Inch for CMOS IMX179
- Pixel size: 1.4um
- Maximum resolution: 3264H*2448V
- Angle: 65°
- Dynamic range: 72.5dB
- Image color: color
- Microphone: digital microphone
- White balance: automatic
- Focusing method: AF, FF
- Output: usb2.0
- Video format: MJPEG, YUY2
- Interface: USB socket 5p 1.00mm plug-in

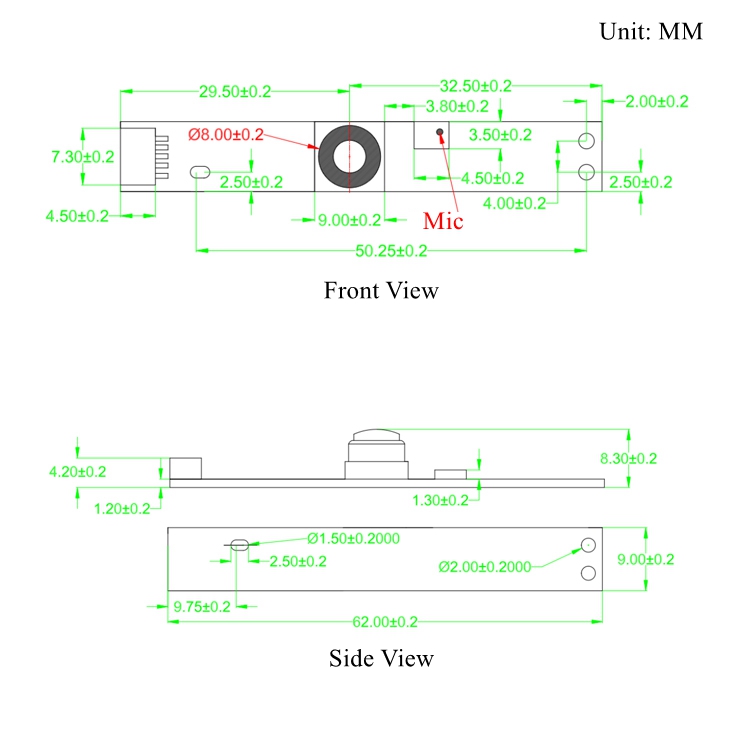

- Module size: 62 x 9mm/2.4 x 0.4"
- Format resolution: MJPG: 3264*2448 at 15fps, 2594*1944 at 15fps, 2048*1536 at 15fps, 1920*1080 at 30fps, 1280*720 at 30fps, 800*600 at 30fps, 640*480 at 30fps. YUY2: 3264*2448 at 15fps, 2594*1944 at 15fps, 1920*1080 at 30fps, 1280*720 at 30fps, 640*480 at 30fps
Industrial Application Examples:
- Financial equipment
- Face recognition equipment
- Security smart device
- Multimedia/teaching equipment
- Scan QR code/ID card
- Self-service terminal equipment
- Express delivery cabinet/smart device
- Guest terminal equipment
Package Included:
- 1 x Set of Camera Module
