6CH Flydream AAT V5.0 Antenna Following System Automatic Tracking Gimbal FPV

6CH Flydream AAT V5.0 Antenna Following System Automatic Tracking Gimbal FPV

Description:
- This is the best antenna tracking system, perfectlly compatible with all OSD and flight control
- 6 Channel is enough for normal situation, if the telemetry need 12 cahnnel, it means the gimbal can have more channel to get back to the ground, the remote control signal can also be leaded to the sky
- FD AAT antenna automatic following system can help your ground antenna pointing at your aircraft at any time, keeping the best video receiving effect, saving the manual adjustment troubles for you
- If your FPV multicopter does not have OSD system, then you only need this system and oen 10HZ GPS antenna, you wll have OSD superposition and antenna tracking function
- If your aircraft has OSD system, then you only need to divide your OSD and GPS antenna signal and ground cable and then connect to tracking system, it will realize antenna automatic tracking
- FD AAT has one mini OSD: Telefly OSD
- FD AAT can transmit GPS information to your phone through bluetooth
- FD AAT can make gimbal rotate for 360 degree without twisting the cables together

Specs:
- Gimal weight: 905g
- Dimension: 165*107*40mm
- Input voltage: 12V
- Unload current: 100mA
- Max loading: 1 Kg(no balancing)/ 3KG(with balancing)
- Tilt angle: 0---90degree
- Level rotation: 0-360degree continuous unfinite space
- Tilt speed: 100degree/ sec
- Level speed: 200degree/ sec
- Available signal channel: 3-9

TeleFlyOSD:
- Weight: 8g
- Dimension: 45*25mm
- Input voltage: 6-9V(input range is 8-13V after adding voltage step down module)
- Consumption current: 200mA

AATDriver antenna:
- Weight: 58g
- Dimension: 78*44*23mm
- Input voltage: 12V
- Unload current: 100mA
- Virtual GPS communication rate: 1200bps
- Virtual GPS: AATDriver can analog a bluetooth GPS, output $GPGGA and $GPRMC indicator, provide aircraft geographical position

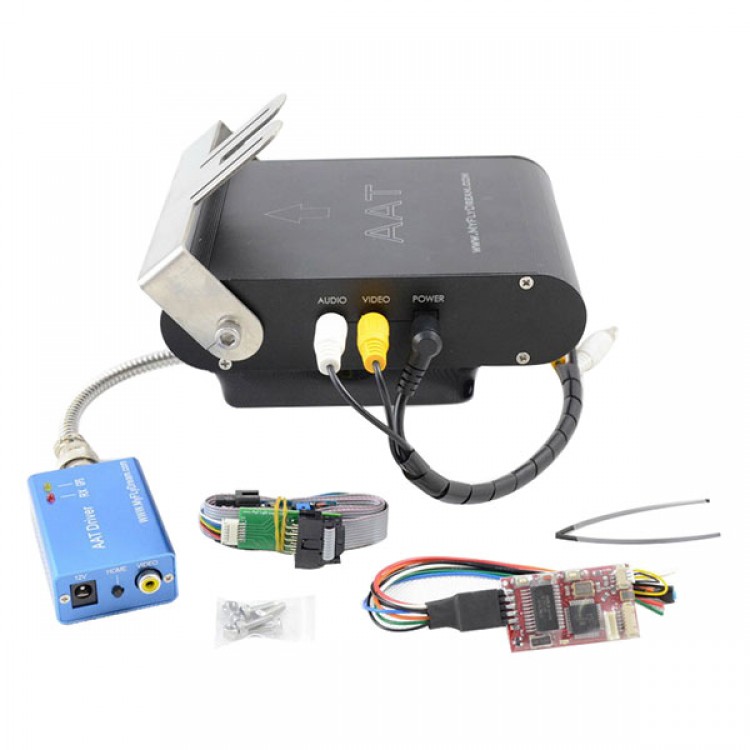

Package includes:
- Tracking gimbal x 1
- TeleFly Pro x 1
- USB firmware upgrade downloader x 1
- Driver V5 antenna driver x 1
- Professional connecting cable x 4
- Shrinkable tube x 1
- Instal screw x 4

Note:
- This combe is not included GPS module, bluetooth adapter, GPS can be used with other GPS moudle that is compatible with OSD, or purchase seperately matched GPS module
- Not inlcuded high gainning pad antenna.
